Overview
Specification
| Parameter | Specification |
|---|---|

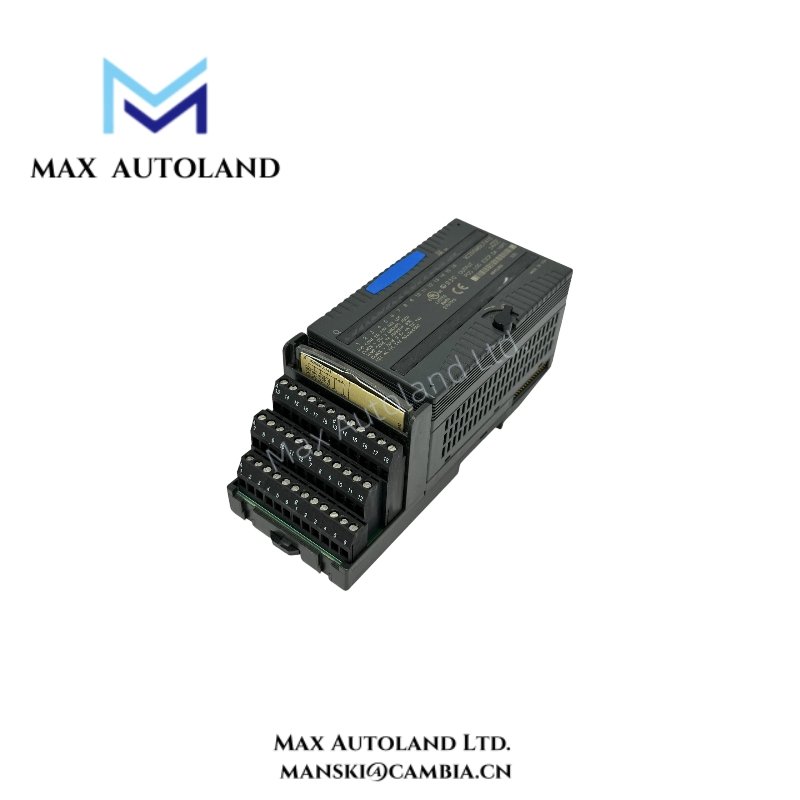

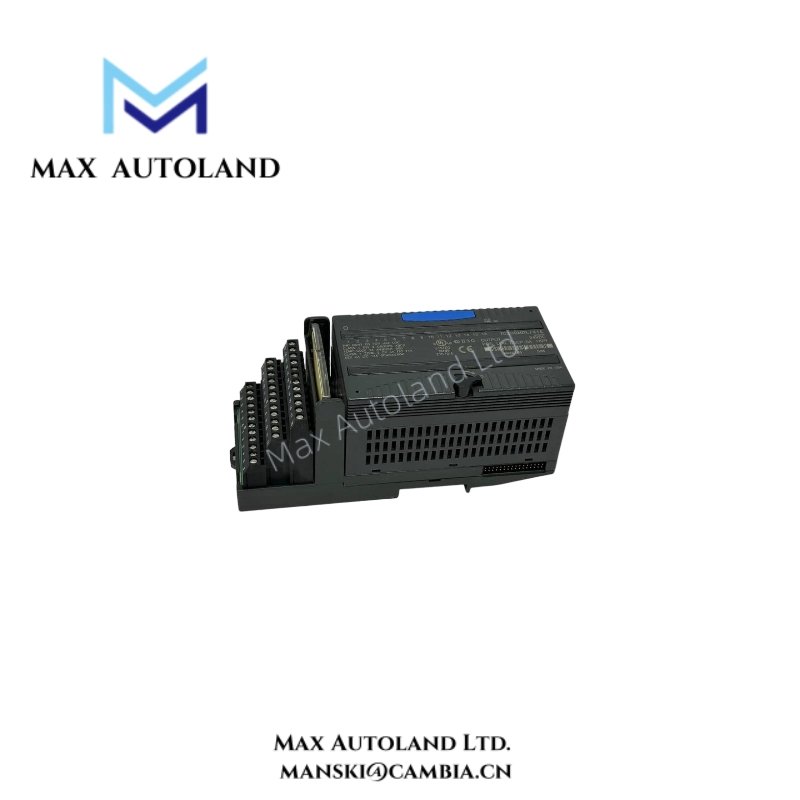

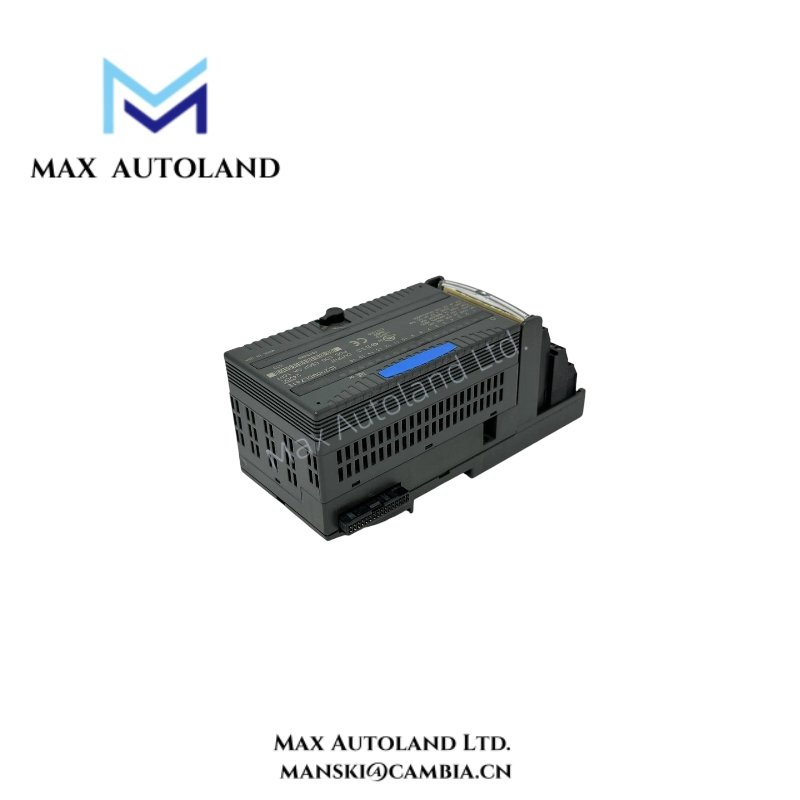

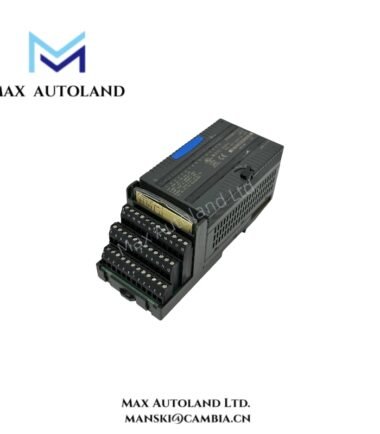

| Model | IC200MDL741 |
| Module Type | 24VDC Output Module |
| Digital Outputs | 16 channels, 24 VDC |
| Output Logic | Sourcing or sinking outputs compatible with standard devices |
| Communication | VersaMax backplane interface to CPU |
| Power Supply | 5 VDC ±5%, 0.5 A typical |
| Power Consumption | Approximately 3 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or panel mount |
| Dimensions | 122 mm (H) x 35 mm (W) x 112 mm (D) |
| Status Indicators | LEDs for RUN, ERROR, and output channel activity |
| Certifications | CE, UL Listed |
| Environmental Protection | Resistant to vibration, electrical noise, and industrial stress |
| Typical Applications | Factory automation, process control, packaging, material handling |
FAQ
It offers 16 discrete 24VDC output channels for precise control of devices.
Q2: Is this module compatible with VersaMax CPU modules?
Yes, it interfaces through the VersaMax backplane for seamless system integration.
Q3: What is the operating temperature range of the module?
The module operates reliably between 0°C to 60°C (32°F to 140°F).
Q4: How can I check the output status?
LED indicators provide visual feedback on RUN, ERROR, and output channel activity.
Q5: Is the IC200MDL741 suitable for harsh industrial environments?
Yes, it withstands vibration, electrical noise, and other industrial stresses effectively.
