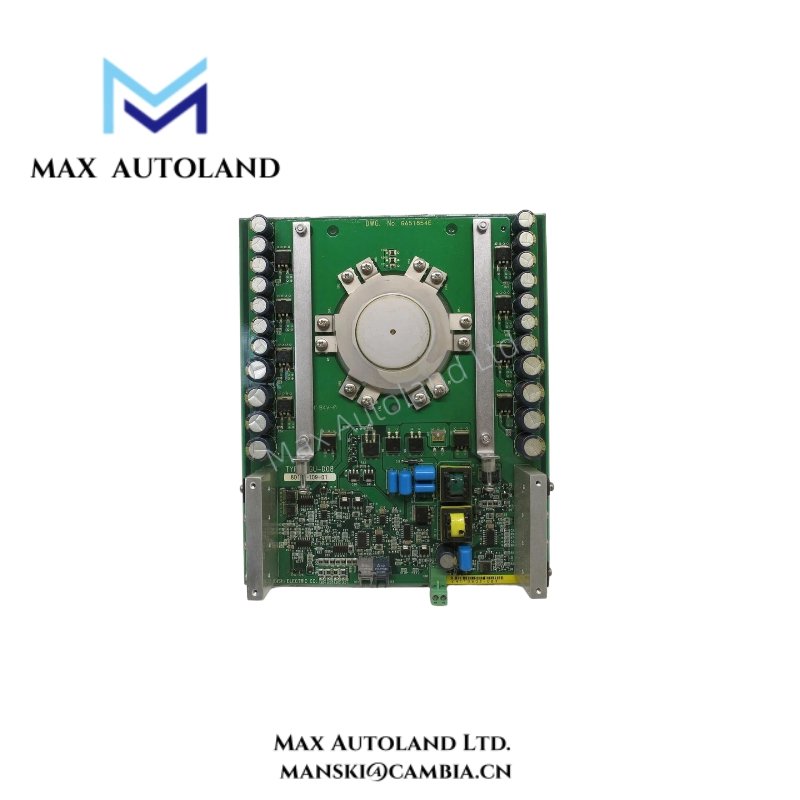

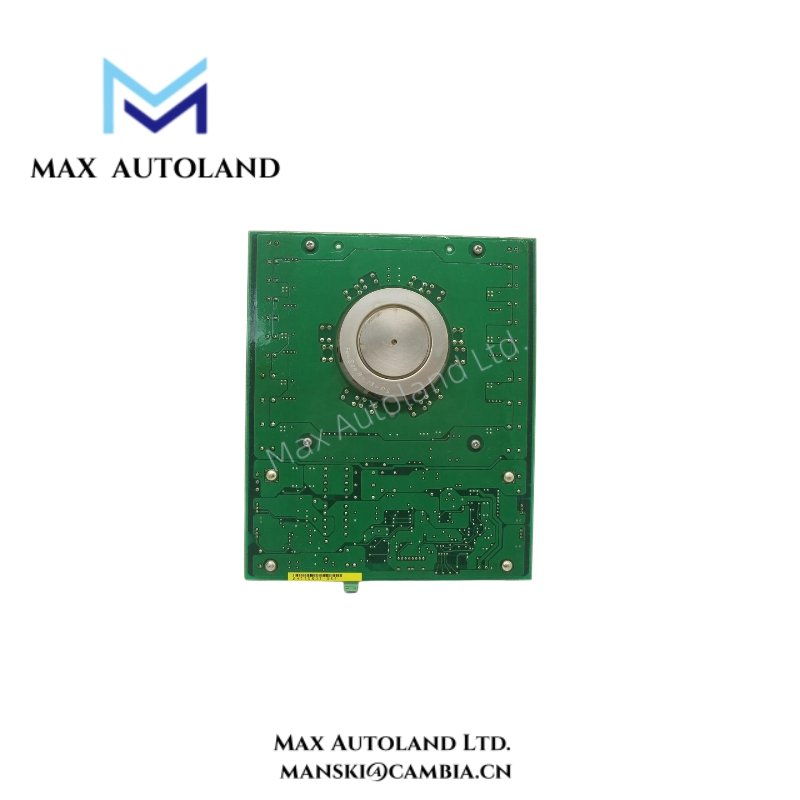

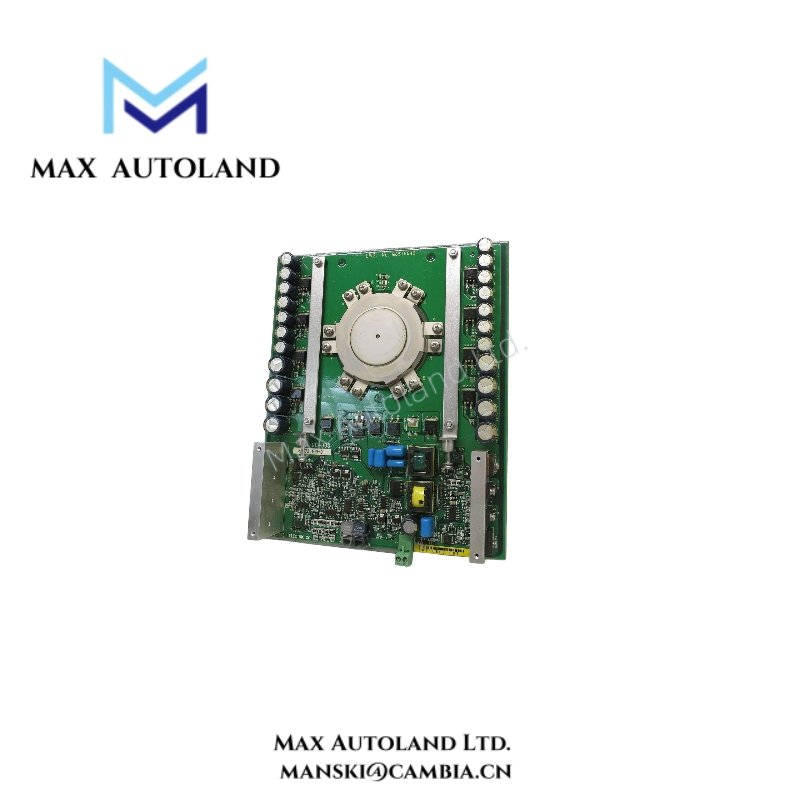

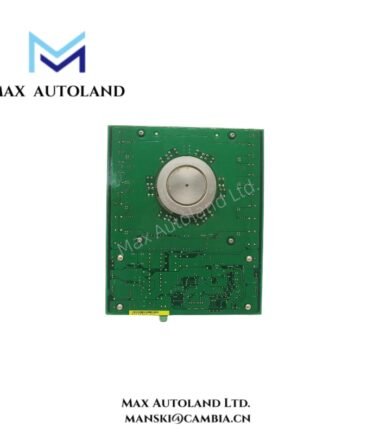

Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | GU-G08 |
| Part Number | 80173-109-01 |
| Module Type | Power and Control Board |
| Input Voltage | 200–480 V AC |
| Output Voltage | Configurable to system requirements |
| Control Method | Thyristor-based inverter module |
| Operating Temperature | 0°C to 55°C (standard); –20°C to 70°C (extended) |
| Cooling Method | Natural air cooling |
| Protection Class | IP20 |
| Vibration Resistance | 0.15 mm P-P (5–58 Hz), 1 G (58–150 Hz) |
| Shock Resistance | 15 G, 11 ms (XYZ directions, power-off) |
| Altitude | Up to 2000 m |
| Humidity Range | 5–95% RH, non-condensing |
| Installation | Compatible with inverter and drive systems |
| Reliability | Designed for long-term industrial operation |
FAQ
A1: It provides reliable power conversion and control for industrial automation and inverter systems.
Q2: Can this module operate in high-temperature environments?
A2: Yes, it supports extended temperatures from –20°C to 70°C depending on connected modules.
Q3: Does it support integration with existing drive systems?
A3: Yes, the compact design allows seamless installation into inverter and drive systems.
Q4: What type of cooling is required for this module?
A4: Natural air cooling is sufficient for standard industrial environments.
Q5: Is the module resistant to vibration and shock?
A5: Yes, it meets ANSI/ISA standards for industrial vibration and shock resistance.
Q6: What is the maximum altitude for reliable operation?
A6: It can operate at altitudes up to 2000 meters above sea level.
