Overview

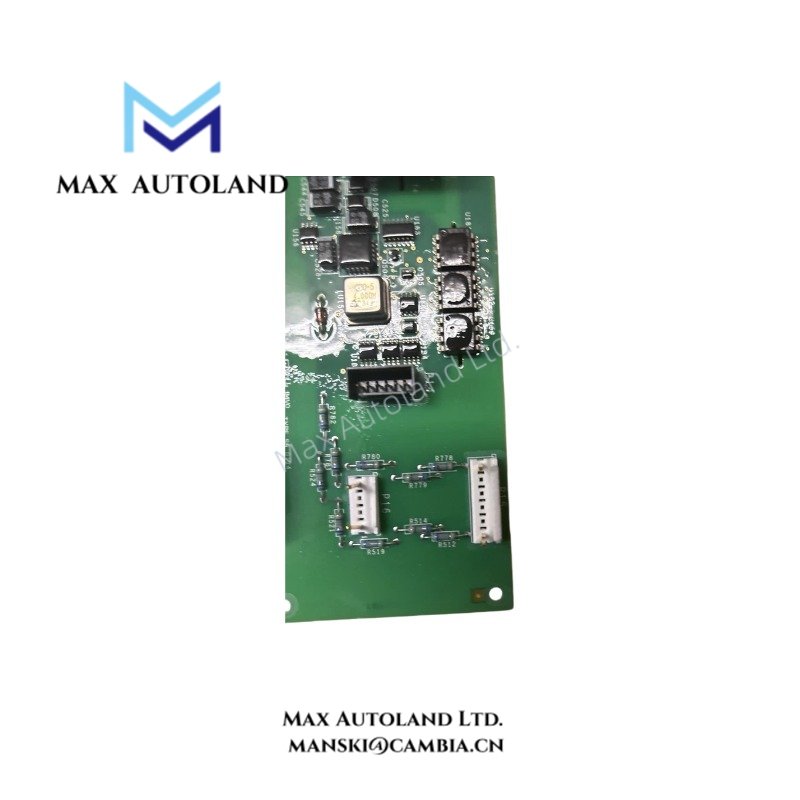

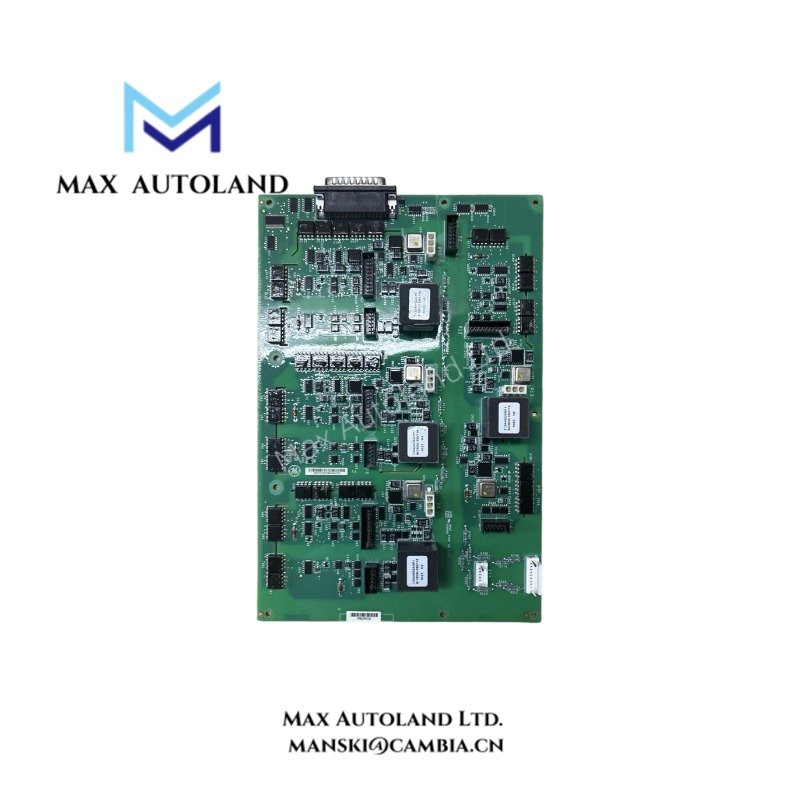

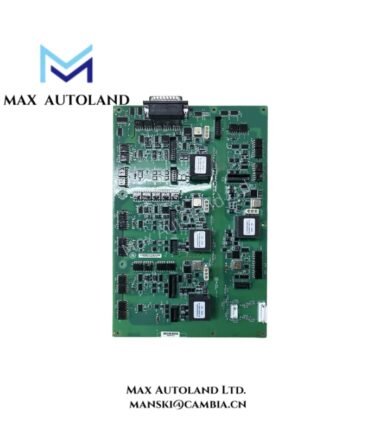

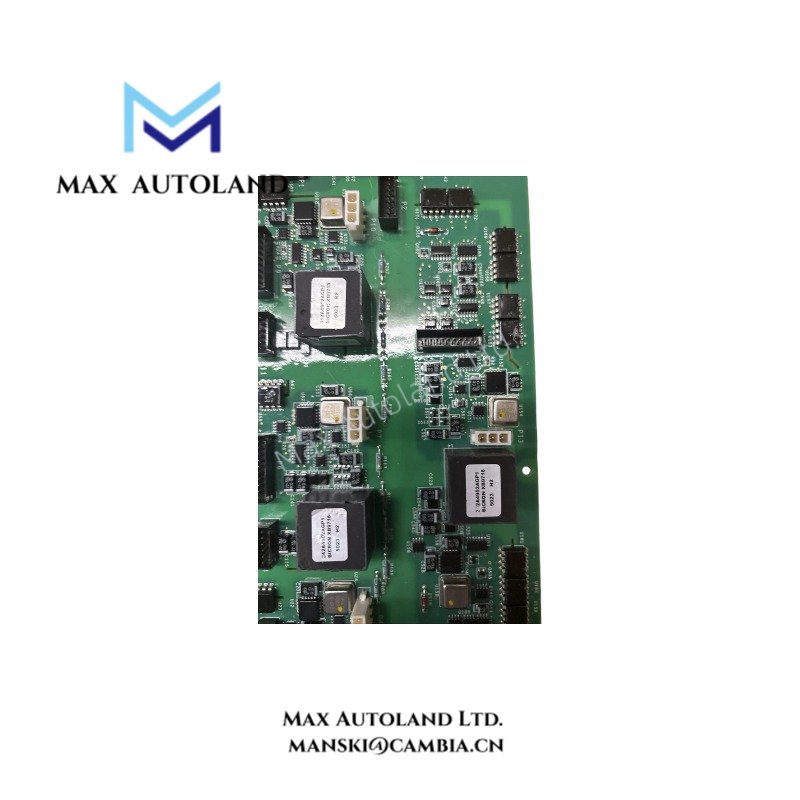

The GE IS210AEDBH3ACC is an AE Distributed Bridge Interface Board listed for the GE Mark VIe Distributed Control System (DCS). It supports communication and data exchange within turbine control systems. The supplied specifications list a 24 VDC power supply, a VME bus interface, and an operating temperature range of -40 to +85 deg C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IS210AEDBH3ACC |
| Brand | GE (General Electric) |
| Product Type | AE Distributed Bridge Interface Board |
| System Platform | GE Mark VIe DCS |
| Function | Communication and data exchange |
| Communication Interface | VME bus |
| Power Supply | 24 VDC |
| Operating Temperature | -40 to +85 deg C (-40 to +185 deg F) |
| Weight | 0.3 kg |
Communication Function
The board serves as an interface for communication within a turbine control system. It helps connected control components exchange data according to the system’s interface design. However, the exact connection layout and supported communication paths require confirmation from model-specific technical documentation.
Replacement Considerations
Before replacing the IS210AEDBH3ACC, check the complete part number and compare it with the installed board. Also, verify the interface requirements, power connections, and hardware revision. A shared model prefix alone does not confirm compatibility with another board.
Frequently Asked Questions
Q: What does the GE IS210AEDBH3ACC do?
A: It serves as an AE Distributed Bridge Interface Board for turbine control applications. Its stated function is to support communication and data exchange within the control system.
Q: What power supply does this board use?
A: The supplied specifications list 24 VDC. Before installation, confirm the power connections and electrical requirements for the specific system configuration.
Q: Can another IS210AEDBH model replace this board?
A: Not necessarily. Check the full model number, hardware revision, and interface requirements before choosing a replacement.
