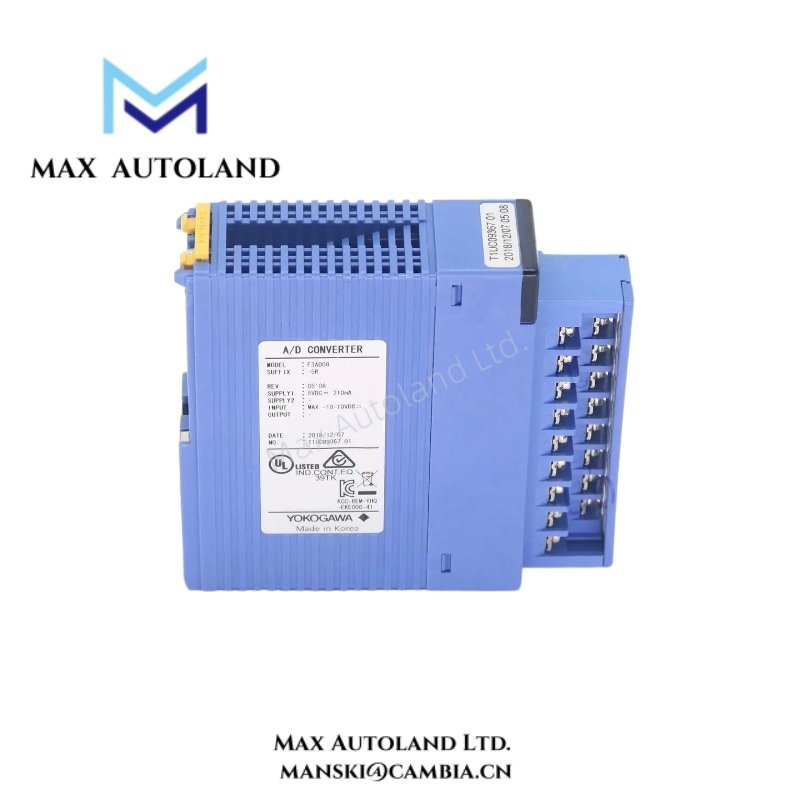

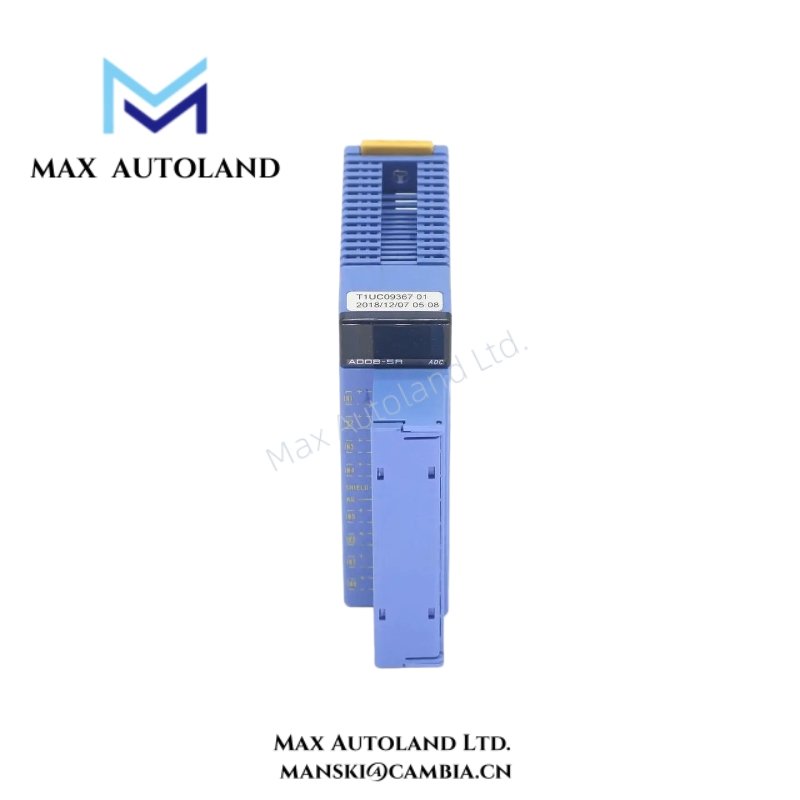

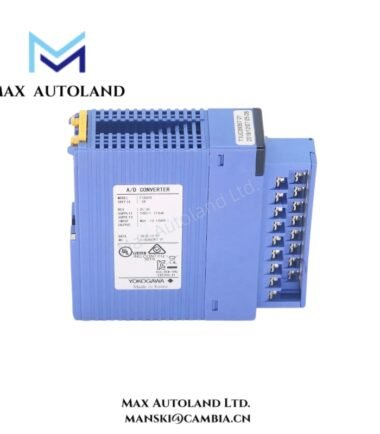

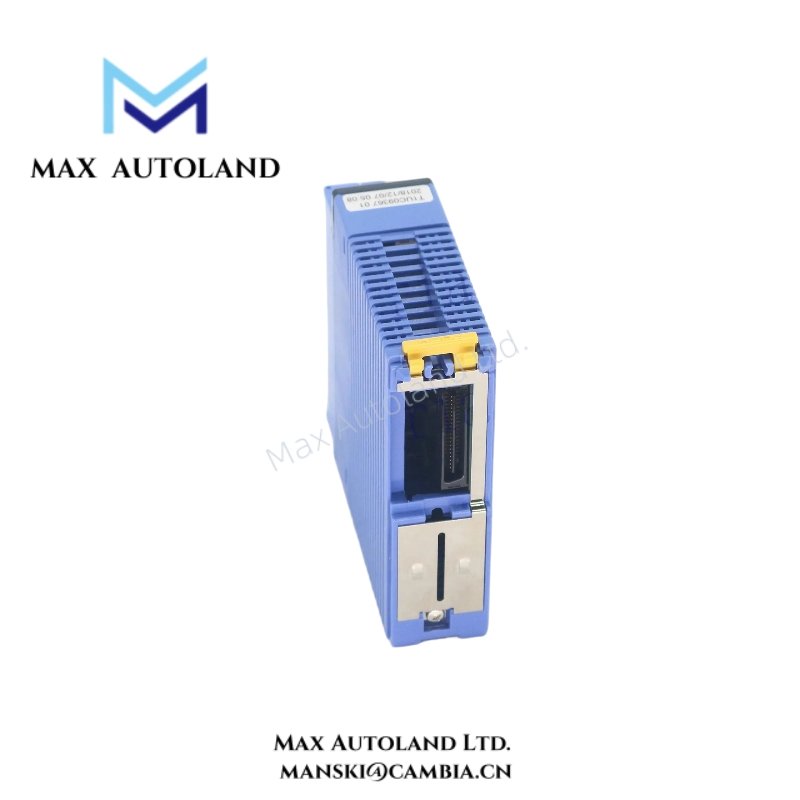

Overview
Furthermore, the module features advanced scaling and filtering capabilities, enabling engineers to optimize signal processing efficiently. Its isolated input terminals improve system safety, thereby reducing interference risks and enhancing long-term reliability. Therefore, the F3AD08-5R ensures both performance and operational confidence in critical industrial applications.
Specification
| Specification | Details |
|---|---|
| Model Number | F3AD08-5R |
| Module Type | Digital Conversion Input Module |
| Number of Inputs | 8 differential channels |
| A/D Resolution | 16-bit |
| Conversion Cycle | 50 μs to 100 ms per module (selectable) |
| Input Signal Range | 0–5 V, 1–5 V, -10–10 V, 0–10 V DC; 0–20 mA, 4–20 mA DC |
| Allowable Common-mode Voltage | ±6 V DC (most signals); ±1 V DC (-10–10 V, 0–10 V) |
| Isolation Method | Photocoupler isolation across input terminals |
| Maximum Resolution | 0.4 mV (voltage signals), 1.6 μA (current signals) |
| Overall Accuracy | ±0.1% (23±2°C), ±0.2% (0–55°C) full-scale |
| Scaling | Adjustable upper/lower limits (-30,000 to 30,000) |
| Offset | Adjustable (-5,000 to 5,000) |
| Filter | First-order lag or moving average per channel |
| Hold Data | Peak and trough recording |
| Power Consumption | 210 mA at 5 V DC |
| Connection | 18-point terminal block, M3.5 screws |
| Dimensions (WxHxD) | 28.9 × 100 × 106.1 mm |
| Weight | 200 g |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–75°C |
| Humidity Range | 10–90% RH, non-condensing |
FAQ
A1: The module supports both voltage and current differential signals, providing flexible input options for various sensors.
Q2: How many input channels does this module have?
A2: The F3AD08-5R offers up to eight differential input channels for simultaneous signal processing.
Q3: What is the conversion speed of the module?
A3: The 16-bit A/D converter provides super-high conversion speeds of 50 microseconds per point for real-time monitoring.
Q4: Is the module safe for industrial environments?
A4: Yes, it features isolated input terminals that reduce interference and enhance long-term operational reliability.
Q5: Can the module perform signal scaling and filtering?
A5: Absolutely, advanced scaling and filtering capabilities allow engineers to optimize signal processing efficiently.
Q6: Which automation systems are compatible with the F3AD08-5R?
A6: This module is fully compatible with YOKOGAWA FA-M3 automation systems for precise control and monitoring.
