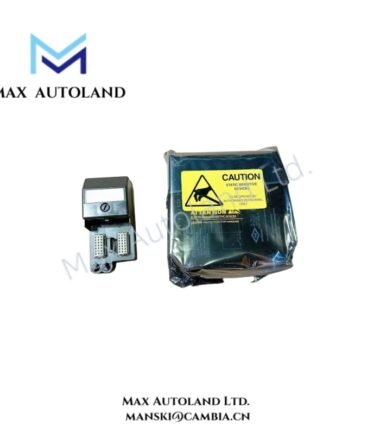

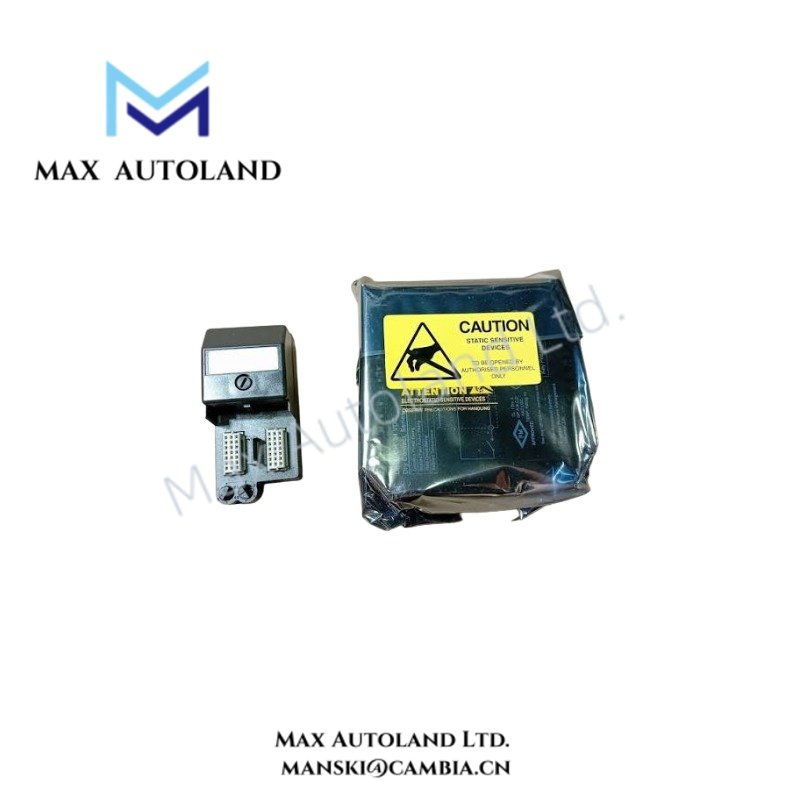

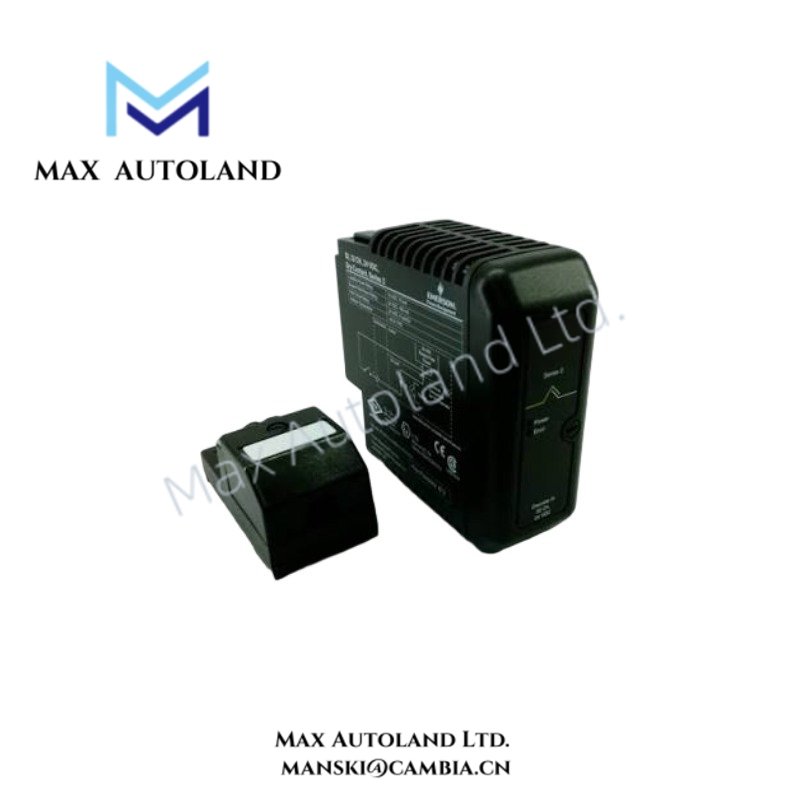

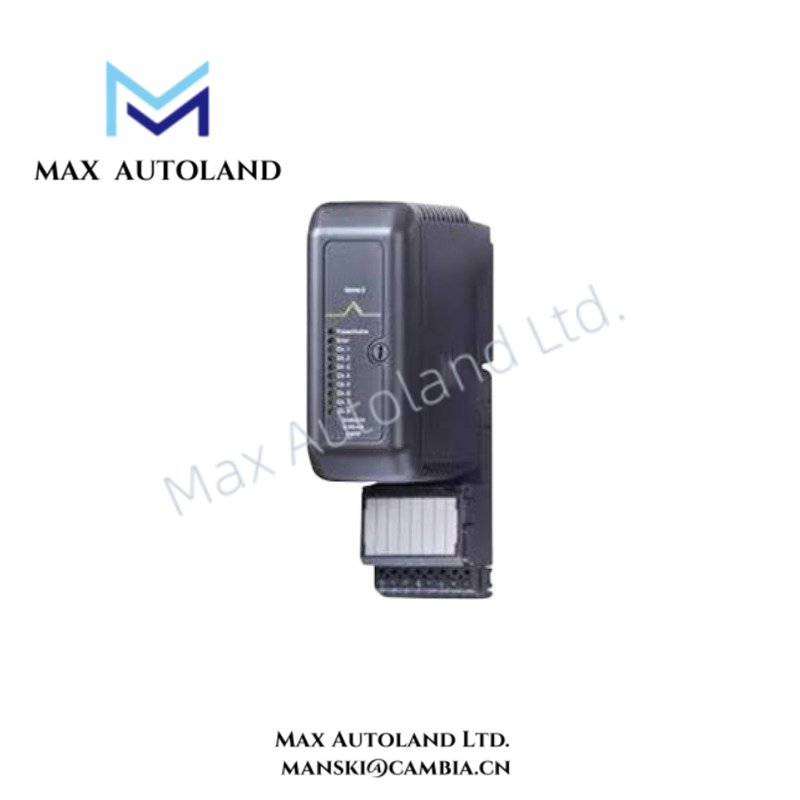

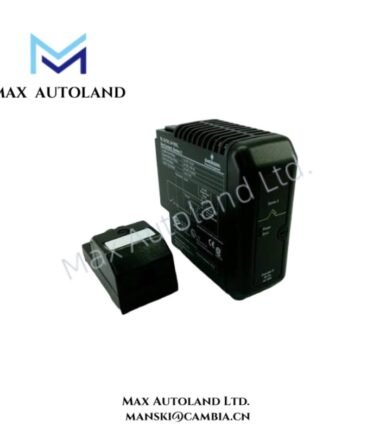

Emerson VE4001S2T2B5 M-Series Traditional I/O Discrete Input Module

Hardware Specifications

Emerson DeltaV Process I/O Signal Characteristics

The VE4001S2T2B5 processes discrete field signals through the DeltaV M-Series Traditional I/O architecture. The module applies channel-level optical isolation to separate field wiring circuits from internal electronics.

Furthermore, the module supports digital event acquisition and pulse counting applications with input switching detection based on current thresholds. The 24 VDC input design allows direct connection to standard industrial contact devices.

For Emerson process control installations, the I/O architecture supports integration with DeltaV field devices using standard signal conditioning methods. Channel-to-channel isolation prevents individual field circuit disturbances from affecting adjacent input channels.

Frequently Asked Questions

Q: Does the VE4001S2T2B5 support analog 4-20 mA input signals?
A: No. The VE4001S2T2B5 is a discrete input module designed for 24 VDC digital signals and dry contact detection. It does not process analog current loops.

Q: What termination method does the VE4001S2T2B5 use?
A: The module connects field wiring through a 40-pin mass termination block interface.

Q: Can the module operate in redundant DeltaV I/O configurations?
A: The VE4001S2T2B5 is designed for DeltaV M-Series Traditional I/O applications. Redundancy capability depends on the installed DeltaV system architecture and configured hardware arrangement.

Field Installation Guidelines

Install the VE4001S2T2B5 in the designated DeltaV M-Series I/O carrier position according to the system hardware configuration.

Use proper field wiring separation between discrete input circuits and high-voltage or high-noise power conductors. Maintain appropriate grounding practices for cabinet shields and termination assemblies.

Verify the 24 VDC field supply polarity before energizing the module. Confirm that dry contact devices provide the expected switching behavior before commissioning.

Inspect the 40-pin termination connection for correct seating and mechanical retention. Avoid excessive cable stress at the termination point to maintain stable signal transmission.
