Overview

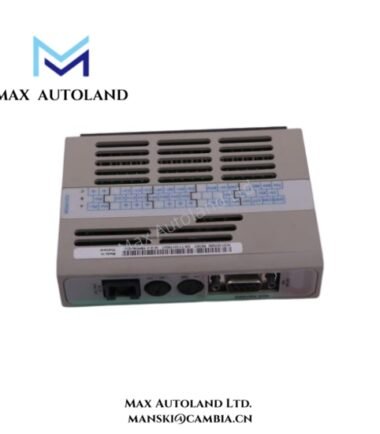

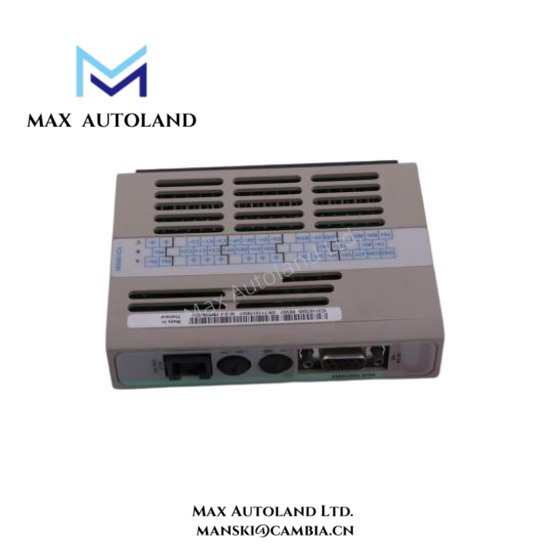

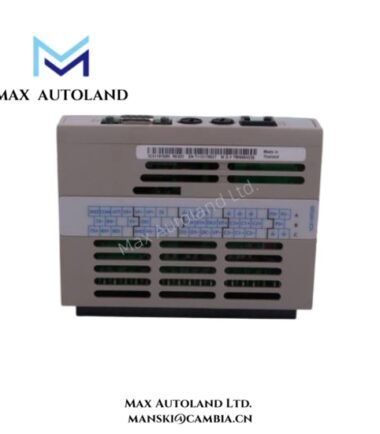

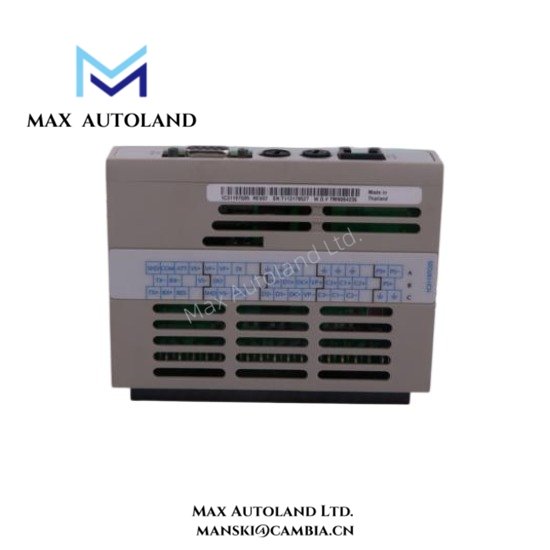

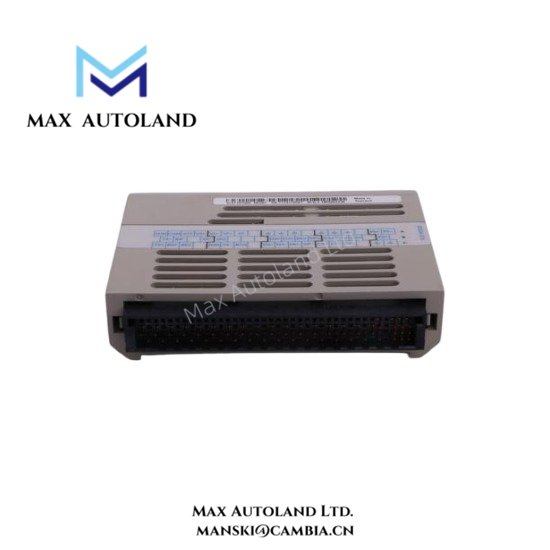

The 1C31197G05 from Emerson Ovation provides precise valve positioning and ensures exceptional reliability throughout operation. Moreover, this PMOD assembly integrates seamlessly with Ovation control systems, allowing fast and straightforward setup. Its compact size and lightweight design simplify installation, especially in tight control panels. In addition, the module directly interfaces with standard control signals, while multiple mounting options enable flexible deployment across various system configurations.
Specification
| Parameter | Specification |
|---|---|
| Model | 1C31197G05 |
| Manufacturer | Emerson Ovation |
| Category | PMOD ASSY Valve Positioner |
| Series | Ovation Valve Control Modules |
| Dimensions (L×W×H) | 150 mm × 100 mm × 80 mm |
| Weight | 1.2 kg |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Typical 3 W, Maximum 5 W |
| Control Signal | 4–20 mA analog input, HART digital communication |
| Signal Resolution | 0.1% of span |
| Interfaces | Analog I/O, Digital I/O, HART-enabled diagnostics, optional Modbus RTU |
| Energy Storage | Built-in pneumatic actuator accumulator for smooth operation during short power interruptions |
| Mounting Options | DIN rail, panel mount, modular baseplate, 100 Series conversion mounting |
| Components Included | Valve interface, sensor module, actuator control board, mounting brackets, connection terminals |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Tolerance | 0–95% non-condensing |
| Response Time | Typical <150 ms, Maximum 200 ms |
| Accuracy | ±0.5% of full scale |
| Repeatability | ±0.2% |
| Material | Industrial-grade aluminum enclosure with corrosion-resistant coating, reinforced plastic components |
| Protection Class | IP20 standard, dust and moisture resistant |
| Compliance & Certification | CE certified, RoHS compliant, ISO 9001 manufacturing standards |
| Environmental Conditions | Resistant to vibration, shock, and electromagnetic interference (EMI) in industrial environments |
| Actuation Pressure | Compatible with standard pneumatic signals 0.2–1.0 MPa (30–145 psi) |
| Maintenance | Modular design for easy field replacement of actuator or sensor components |
FAQ
Q1: Is this product brand new and original?
A1: Yes, the 1C31197G05 is 100% original Emerson Ovation, full new condition.
Q2: How quickly can you ship the product?
A2: We usually ship within 3 days to 2 weeks, depending on order size.
Q3: What logistics options are available?
A3: Common carriers like DHL are used for fast and reliable delivery.
Q4: What if the product has a defect?
A4: We support returns within 30 days for any quality issues.
Q5: What are the main interfaces and control signals?
A5: It supports 4–20 mA analog signals, digital interfaces, and HART diagnostics.
Q6: Can it be mounted on a panel or only DIN rail?
A6: Both options are supported, including DIN rail and panel mounting.
