Emerson KJ4001X1-BA3 12P3378X012 VE3051C0 Carrier Module

Hardware Specifications

Channel Isolation and DCS Signal Integration

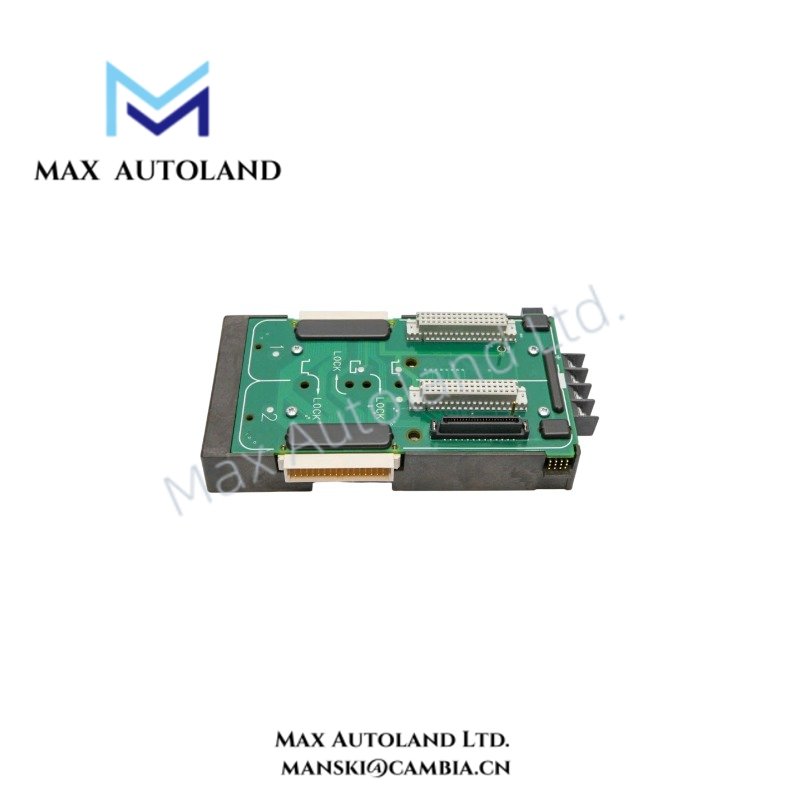

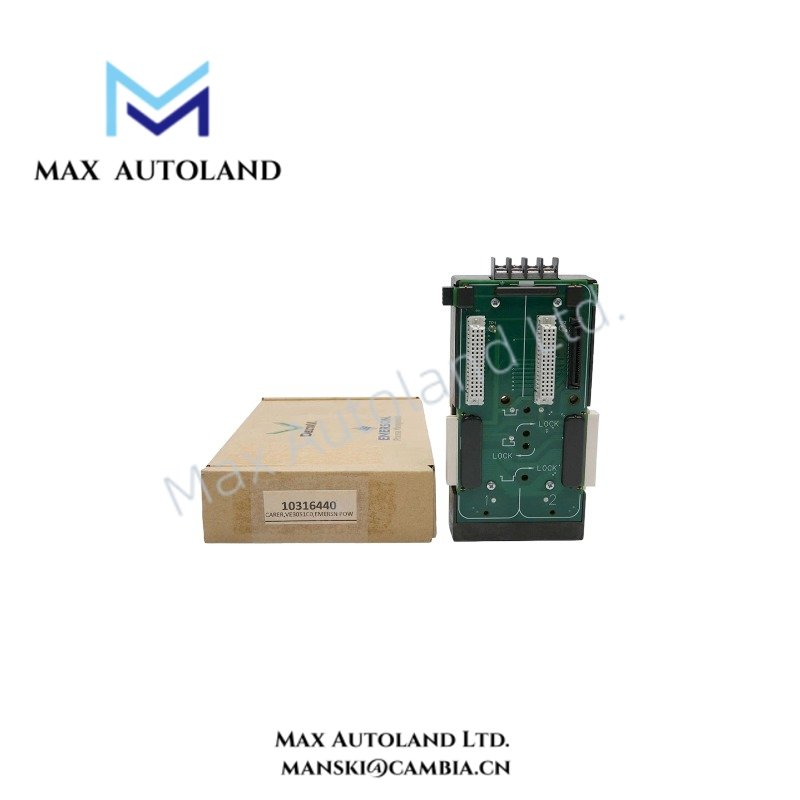

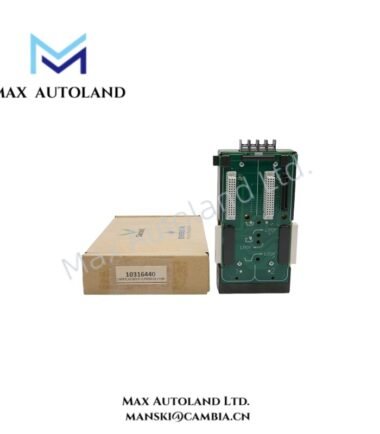

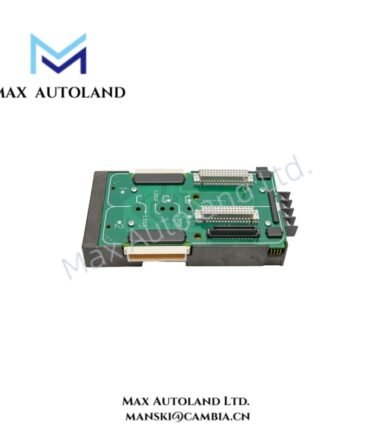

The Emerson KJ4001X1-BA3 12P3378X012 VE3051C0 functions as a physical carrier interface for DeltaV system assemblies. Therefore, the module provides mechanical positioning, electrical connection, and DC power routing between installed components.

For Emerson process control architectures, carrier assemblies maintain module alignment and support structured I/O expansion. In addition, DeltaV hardware designs apply channel-to-channel isolation principles within supported I/O modules to control signal interference and maintain defined electrical boundaries.

The carrier module itself does not perform signal conversion, measurement processing, or protocol communication. Instead, it provides the physical infrastructure required for compatible Emerson modules to exchange power and backplane connections.

Frequently Asked Questions

Q: Does the KJ4001X1-BA3 VE3051C0 perform analog or digital signal processing?
A: No. The VE3051C0 is a carrier module. It provides mounting and electrical connection functions but does not execute analog input, digital output, or communication processing.

Q: What is the maximum DC input capability of the carrier module?

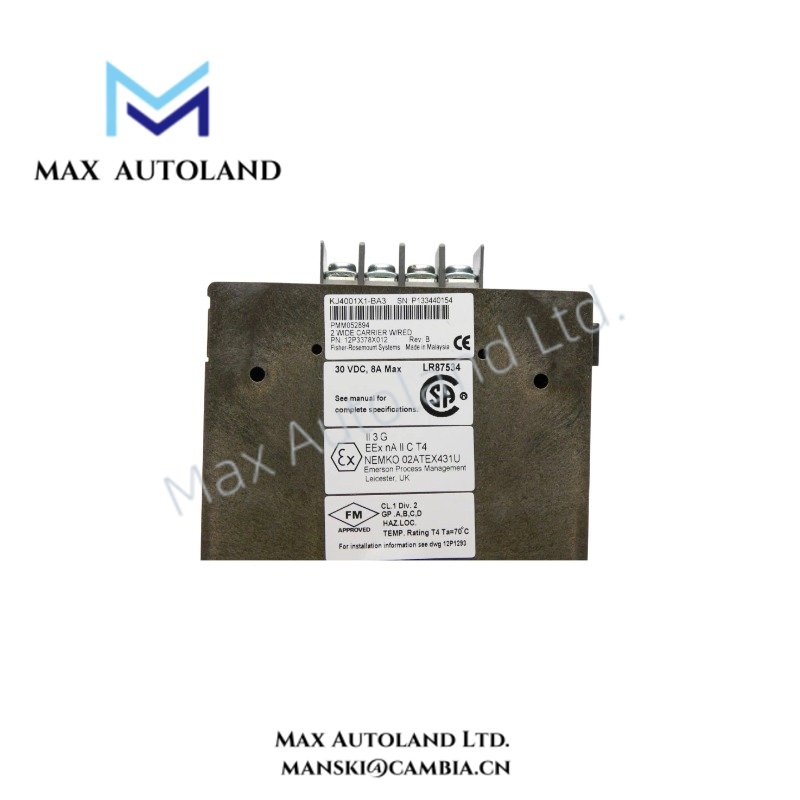

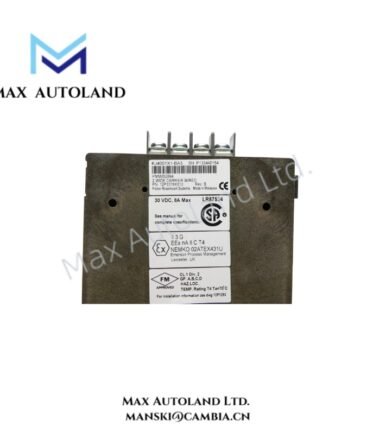

A: The module supports a maximum input rating of 30 VDC at 8 A.

Q: Can the carrier module operate in outdoor environments?
A: No. The module specification indicates an IP20 rating and requires installation inside an appropriate industrial enclosure with controlled environmental protection.

Field Installation Guidelines

• Install the KJ4001X1-BA3 VE3051C0 on the designated Emerson DeltaV mounting structure according to system hardware documentation.
• Verify that the 30 VDC supply wiring meets the required current capacity before connecting field power.
• Ensure all module connectors are fully seated before system energization.
• Maintain proper cabinet grounding practices to reduce electrical noise coupling.
• Route power wiring separately from low-level signal wiring where applicable.
• Protect the carrier module from conductive dust, moisture ingress, and contaminants exceeding the specified environmental limits.
• Confirm mechanical alignment between carrier components before installing connected modules.
