Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

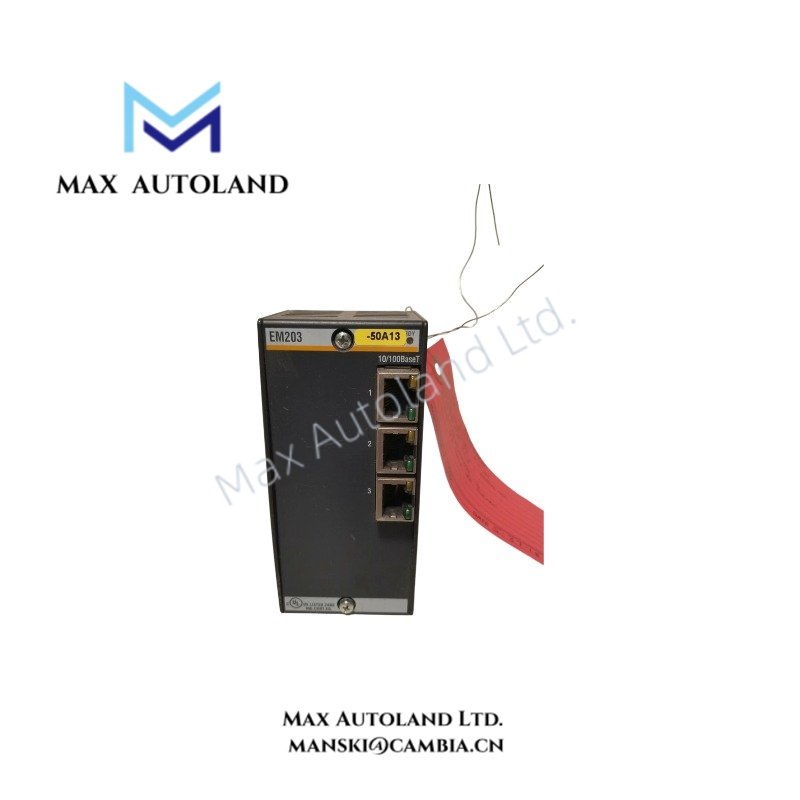

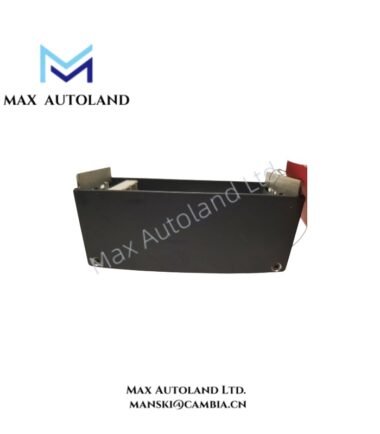

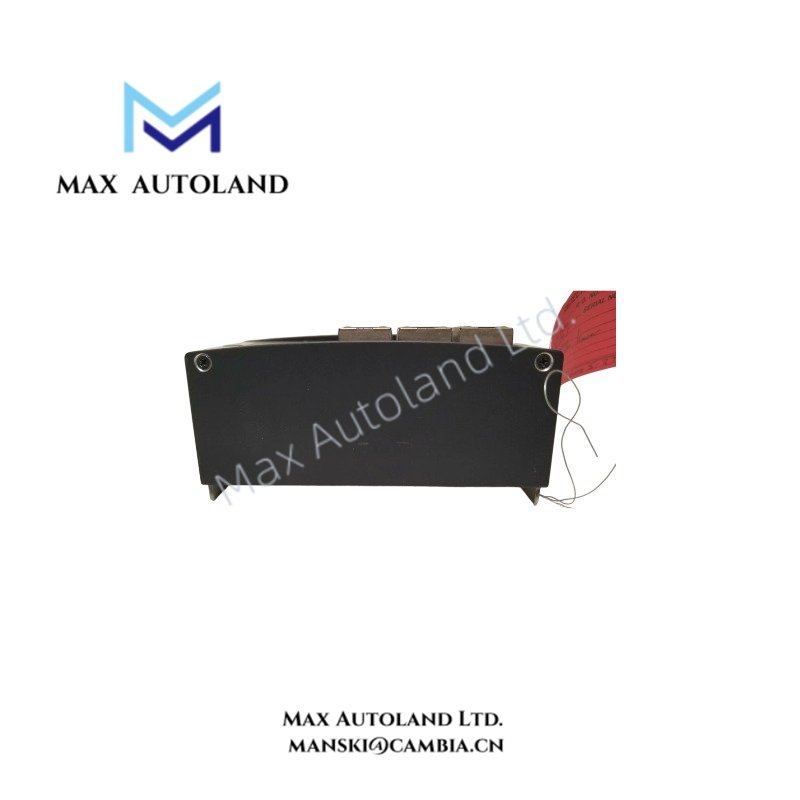

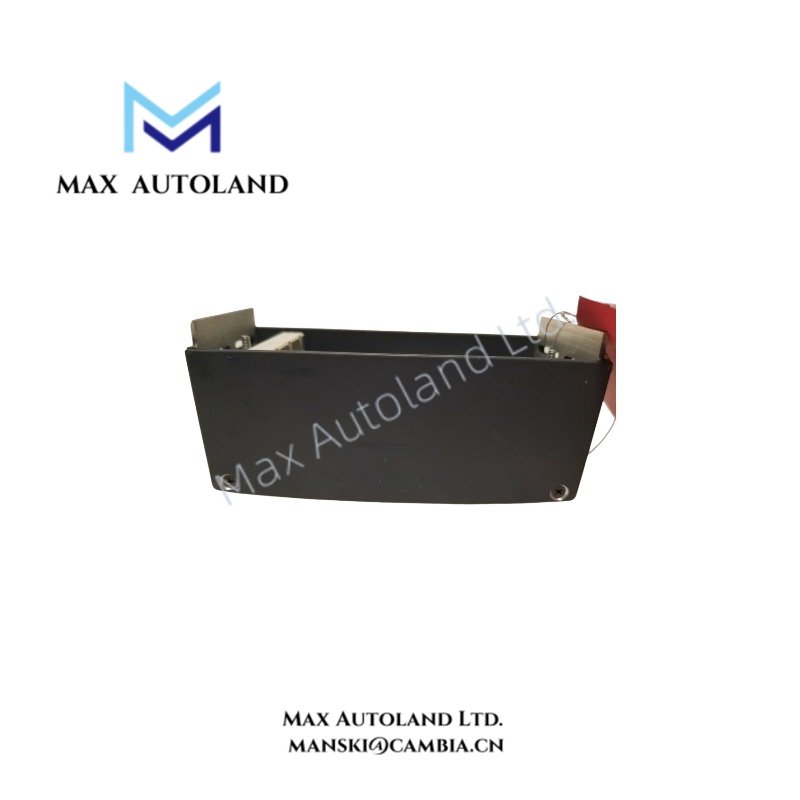

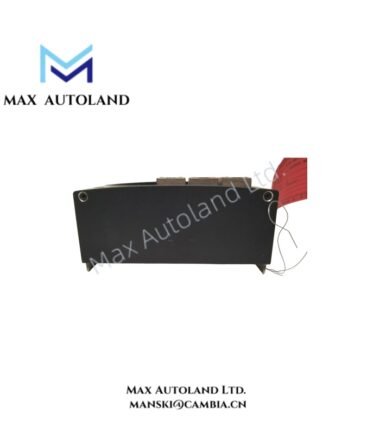

| Model | EM203 |
| Brand | Bachmann |
| Product Series | M1 Automation System |
| Product Type | Energy Measurement Module |
| Origin | Not confirmed; supplied material lists Germany |
| Weight | Approx. 0.20 kg |
| Dimensions | 110 mm x 25 mm x 119 mm |
| Operating Temp | -30 deg C to +60 deg C |
| Measurement Inputs | Single-phase or three-phase systems |
| Voltage Range | 57 V AC to 400 V AC phase-to-neutral; 100 V AC to 690 V AC phase-to-phase |
| Current Inputs | External current transformers |
| Measurement Accuracy | Class 0.5 stated in supplied material |
| Galvanic Isolation | 500 V stated in supplied materia |
Backplane Integration and Electrical Interface Verification
For Bachmann industrial control hardware, backplane compatibility determines mechanical installation, power distribution, and internal communication. Before assigning the EM203 to an energy measurement function, verify the manufacturer’s model designation and hardware documentation.
The supplied description does not establish the module’s exact communication interface, measurement channel count, supported current transformer ratios, or power consumption. Do not use the stated voltage ranges or accuracy class as commissioning values until the applicable datasheet confirms them.
Frequently Asked Questions
Q: Can the EM203 be connected directly to a three-phase power system?
A: The supplied material describes single-phase and three-phase measurement. However, the supported wiring configurations, input ratings, and isolation requirements must be confirmed before connection.
Q: What power supply and backplane load does the EM203 require?
A: The supplied material refers to a 24 VDC M1 backplane supply but does not specify current consumption or power dissipation. Confirm these values in the manufacturer’s electrical specifications before sizing the power supply.
Q: Does the EM203 support hot swapping?
A: Hot-swap capability has not been established from the supplied information. Follow the manufacturer’s installation instructions and isolate power where required before removing or inserting the module.
Field Installation Guidelines
- Verify the model label and hardware revision against the manufacturer’s documentation before installation.
- Confirm backplane compatibility, module orientation, and mechanical retention.
- Verify the rated measurement inputs and wiring configuration before connecting voltage or current transformer circuits.
- Keep measurement wiring separate from high-noise switching and power cables where practical.
- Apply protective grounding and cable shielding according to the system design and manufacturer’s instructions.
- Confirm the module’s power requirements and allowable operating conditions before energizing the system.
- Validate measurement scaling and phase assignment against a calibrated reference before placing the equipment into service.
