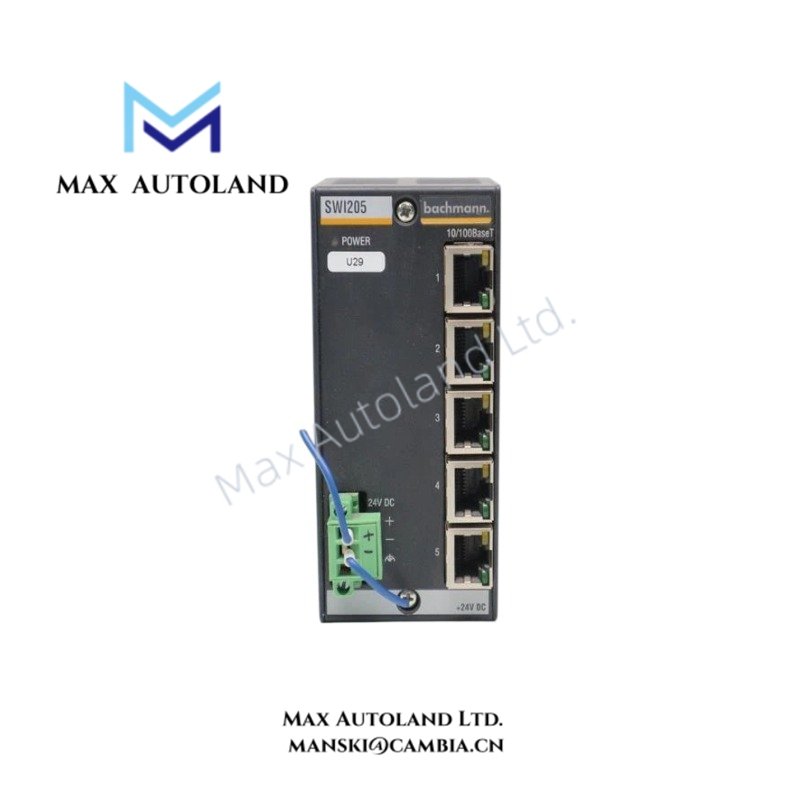

Bachmann SWI205 Industrial Ethernet Switch

Hardware Specifications

Profinet and EtherNet/IP Deterministic Network Performance

The SWI205 connects directly with industrial backplane bus communication architectures to deliver deterministic data transfer rates across node networks. Furthermore, the module handles high-speed frame processing for protocols such as Profinet and EtherNet/IP, maintaining predictable packet transmission latency and tight jitter tolerances. Consequently, firmware flash compatibility ensures seamless version control and integration through standard engineering software platforms without causing bus arbitration faults.

Frequently Asked Questions

Q: What are the backplane power dissipation limits when operators run the SWI205 module in high-density rack configurations?

A: The module draws operational power directly from the system bus interface. Therefore, engineers must calculate total rack power consumption via system configuration software to ensure the central power supply unit remains within its rated load capacity.

Q: Does the SWI205 support hot-swapping during live operational conditions?

A: Standard industrial backplane architecture permits hot-insertion under specific system states. However, disconnecting active network trunks during live operation remains restricted to prevent transient communication errors or packet drops.

Field Installation Guidelines

• Mount the unit exclusively on standard 35 mm DIN rails in a vertical orientation to maintain adequate passive thermal dissipation across the housing envelope.
• Connect the integrated grounding lug directly to the cabinet ground reference using low-impedance copper braided wire to mitigate electromagnetic interference.
• Route communication cabling away from high-voltage power lines and variable frequency drive outputs, maintaining a minimum physical separation distance of 300 mm.
