Overview

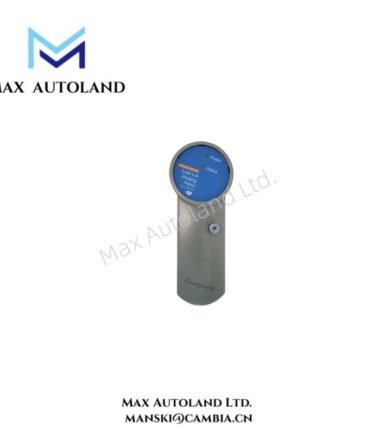

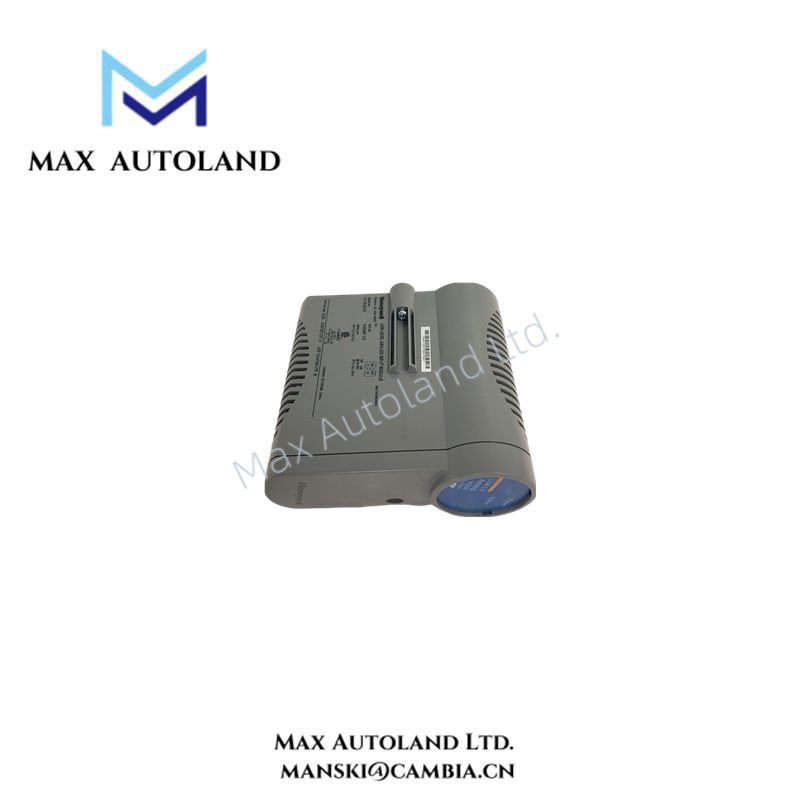

The CC-PAIL51 is a low-level analog input module designed for Honeywell Experion C300 C Series I/O systems. It provides 16 temperature channels, each processing either thermocouple (TC) or resistance temperature device (RTD) inputs.
This low-level IOP module handles all 16 temperature input channels directly. Each channel accepts thermocouple or RTD signals. Unlike LLMUX (CC-PAIM01), the C Series IOTA manages 16 channels without requiring an external process manager FTA.
Specifications
| Parameter | Specification | |
| Input /Output Model | CC-PAIL51 | |
| IOTA(16pt) | CC-TAIL51 | 9” |
| Input Type | Thermocouple or RTD(configurable per channel) | |
| Temperature | Operating Temperature | -40 to+70 |
| Storage Temperature | -40 to +85 | |
| Input Channels | Fully isolated Channel to Channel and Channel to Power System | |
| Input scan rate | 1 Second | |
| Channel bandwidth | 0 to 4.7 Hz(-3 dB) | |
| Nominal input range(TC only) | -20 to+100 millivolts | |
| Maximum normal mode continuous input(non-damaging) | -10 to+10 volts (TC) -1 to+2 Volts @100 milliamps(RTD) | |
| Gain error | 0.050%ful scale max | |
| Temperature stability | TC,Millivolt inputs | +1-20 ppm per max |
| RTD inputs | +/-20 ppm per max | |
| Long term drift | 500 ppm | |
| Input impedance | 1 megohm at dc(TC only) | |
| CMV with respect to Power System common,dc to 60 Hz | +/-250 VDC or VAC RMS | |
| CMRR,50 or60 Hz(with 1000 ohms source impedance max.) | 120 dB min | |
| Voltage,channel-to-channel,dc to 60 Hz | +1-250 VDC or VAC RMS | |
| Crosstalk,dc to 60 Hz | 80 dB(120 dB at 50 and 60 Hz) | |
Manuals/Datasheet PDF
CC-PAIL51 Honeywell Experion C300 Low Level Analog Input datasheet
