Overview

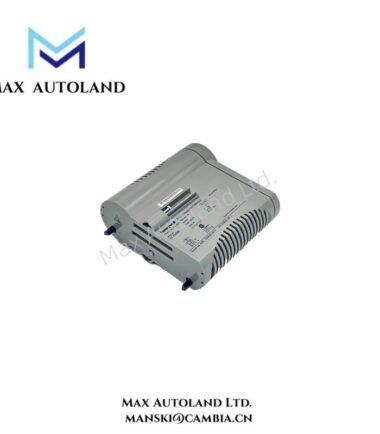

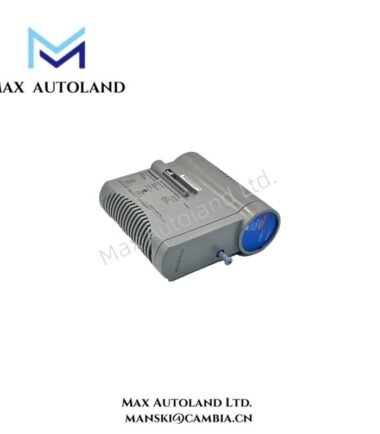

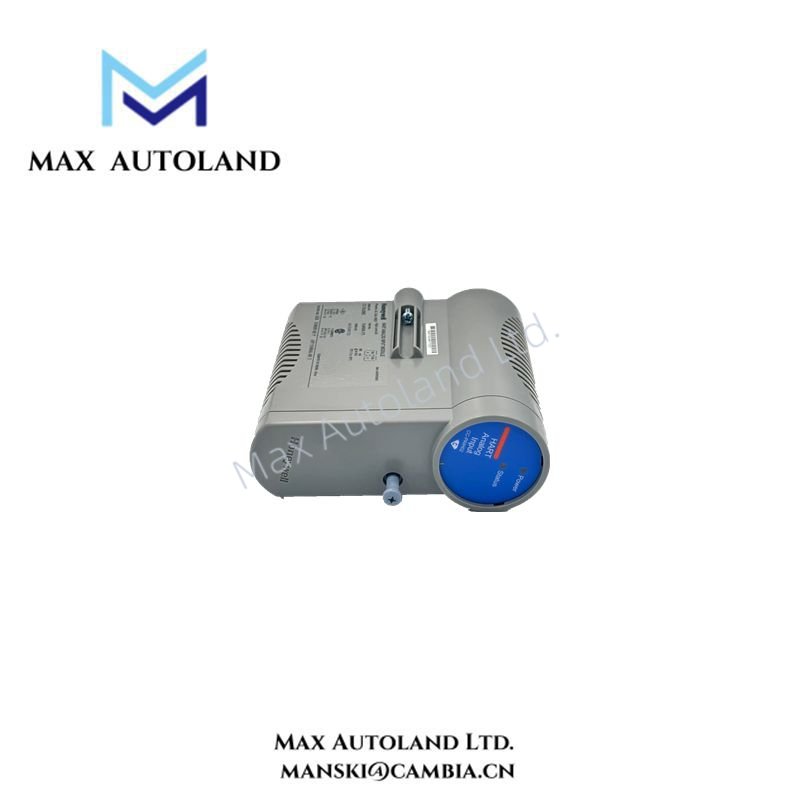

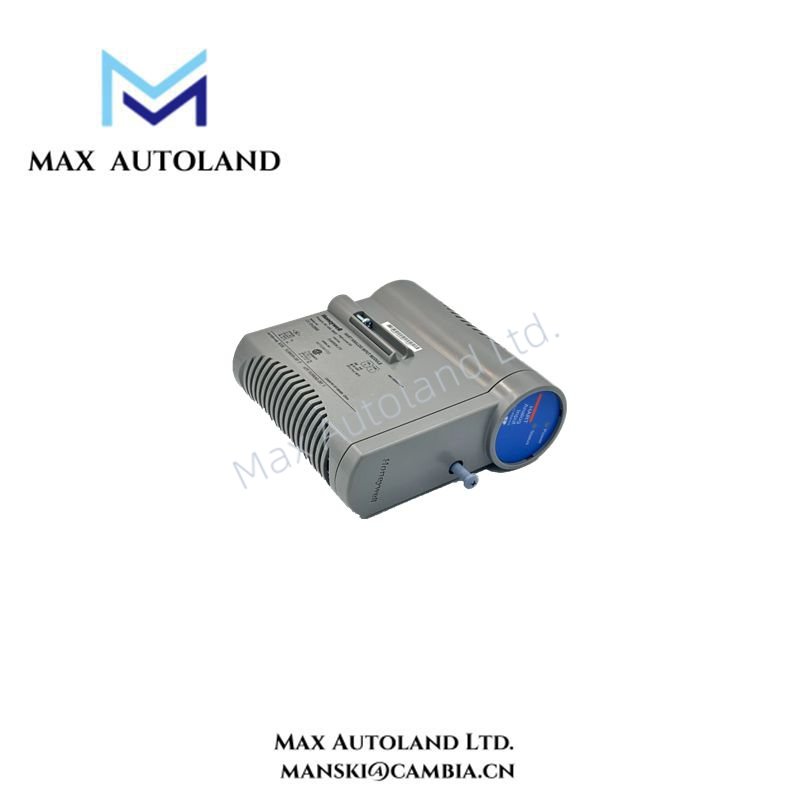

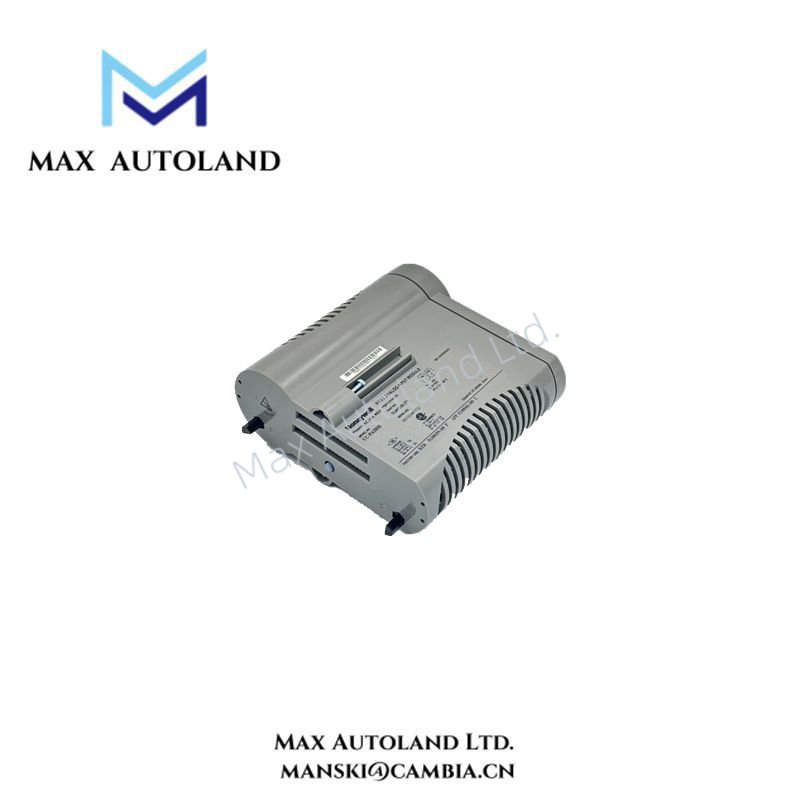

The Honeywell CC-PAIH02 is a high-level analog input module with HART, designed for the C300 Experion PKS system. It supports 16 channels, including 12 single-ended and 4 differential inputs, providing flexible integration with both voltage and current transmitters. Each channel delivers precise signal acquisition with a 16-bit ADC and fast 50 ms scan rate, ensuring accurate process measurements in demanding industrial environments.
Its compact form factor allows efficient panel utilization, and the modular architecture simplifies installation, maintenance, and system expansion. The CC-PAIH02 excels in oil and gas, petrochemical, and power generation applications, offering fast loop scanning and PV protection for continuous and secure operation.The Analog Input Module accepts high level current or voltage inputs from transmitters and sensing devices.
Specification
| Parameter | Specification | |
| Input/Output Model | CC-PAIH02-High-Level Analog Input with HART | |
| IOTA Models | Non-Redundant | Redundant |
| CC-TAIX01 | CC-TAIX11 | |
| CC-GAIX21 | CC-GAIX11 | |

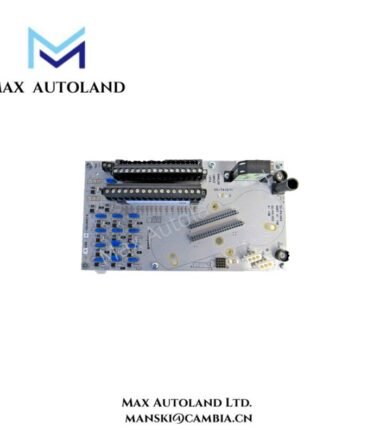

| CC-TAID01 | CC-TAID11 | |
| Input Type | Voltage,current(2-wire or self-powered transmitters) | |
| Input Channels | 16 Channels(12 Single Ended/4 Differential) | |
| Common Mode Rejection Ratio,dc to 60 Hz(500 Ω source imbalance) | 70 dB | |
| Common Mode Voltage,dc to 60 Hz | -6 to+5Vpeak | |
| A/D Converter Resolution | 16 bits | |
| Input Range1 | 0 to 5V,1 to 5V,0.4 to 2V,4-20 mA (through 250 Ω) | |
| Normal Mode Rejection Ratio,at 60 Hz | 19 dB | |
| Normal Mode Filter Response | Single-pole RC,-3dB@6.5Hz | |
| Maximum Normal Mode Input (differential inputs,no damage) | ±30 Volts | |
| Crosstalk,dc to 60 Hz(channel-to-channel) | -60 dB | |
| Input Impedance (voltage inputs) | >10 MQpowered | |
| Input Scan Rate | 50 ms | |
| Hardware Accuracy(@CMV=0V) | ±0.075%of full-scale(23.5°±2℃) ±0.15%of full-scale(0 to 60℃) | |
| Transmitter Field Power Conditioning | Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing.No fusing required | |
Manual/Datasheet PDF
CC-PAIH02 51405038-375 Honeywell C300 Analog Input with HART datasheet
