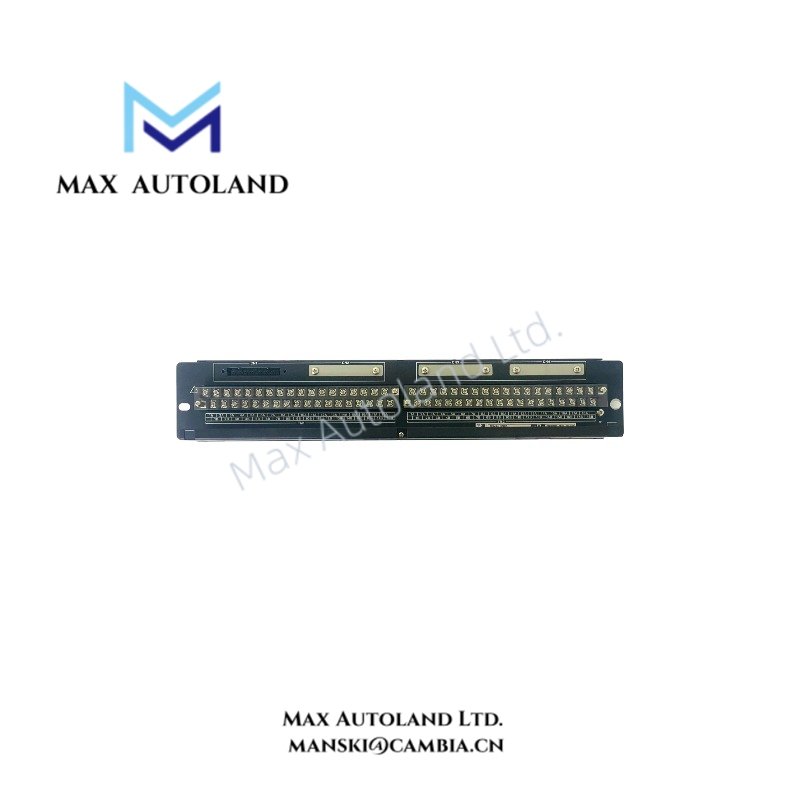

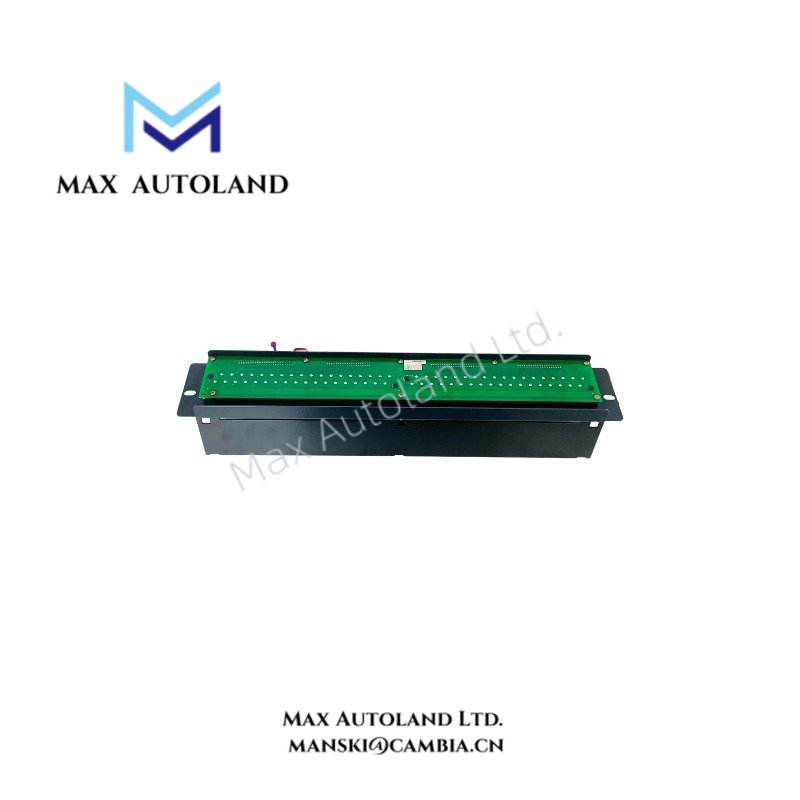

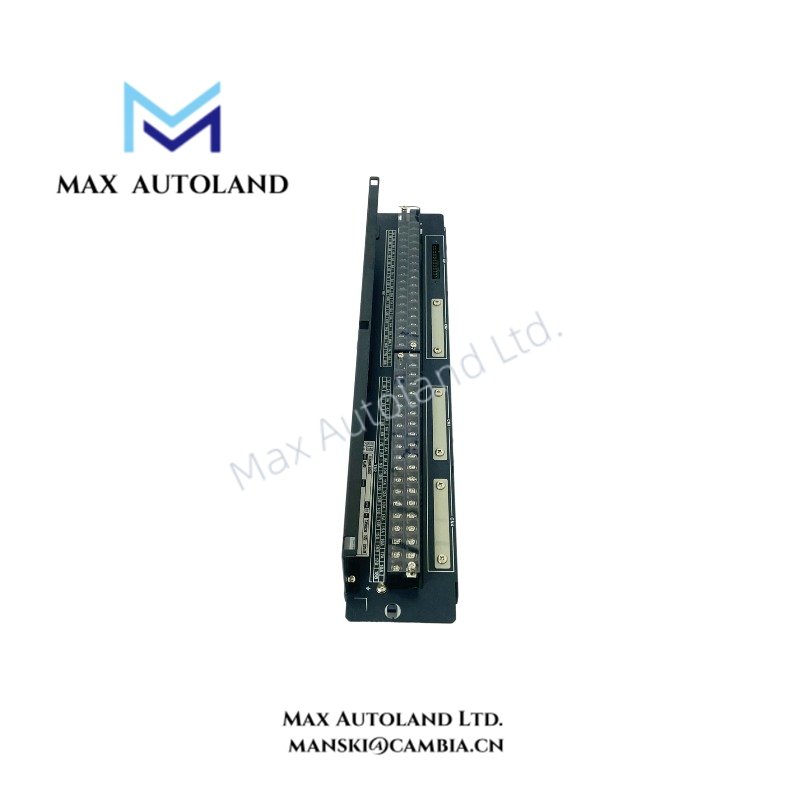

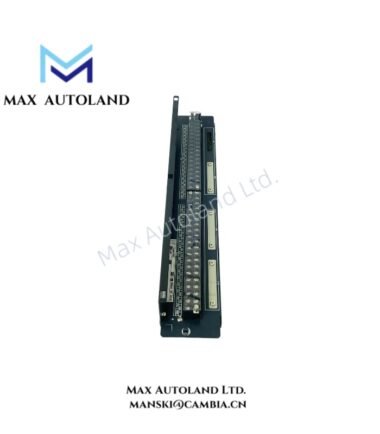

AEA4D-05 Yokogawa Terminal Board for Analog

Hardware Specifications

Analog Signal Termination and DCS Interface

The AEA4D-05 terminates field analog signal wiring at M4 screw terminals and provides the physical connection to compatible DCS I/O modules through the KS1 system cable.

Its 16-channel configuration accommodates analog signal wiring in single or dual-redundant arrangements. However, the terminal board itself does not establish the signal type, measurement range, or isolation characteristics of the connected I/O module.

For installation, verify the terminal assignment and cable compatibility against the applicable Yokogawa system documentation.

Frequently Asked Questions (FAQ)

Q: How many analog signal channels does the AEA4D-05 support?

A: The AEA4D-05 supports 16 channels and accommodates single or dual-redundant configurations.

Q: Which system cable connects the AEA4D-05 to the I/O module?

A: The specified connection cable is KS1. Confirm the cable configuration and connector assignment before installation.

Q: Does the AEA4D-05 include surge protection?

A: No. The -0 suffix indicates a configuration without a surge absorber.

Field Installation Guidelines

1. Mounting: Install the terminal board inside a suitable control cabinet or rack. Maintain the required clearance for wiring access and inspection.
2. Wiring: Secure field conductors using the M4 screw terminals. Verify terminal assignments against the applicable wiring documentation.
3. System Connection: Connect the designated KS1 cable to the compatible I/O interface. Confirm connector orientation and cable routing before energizing the system.
4. Signal Separation: Route analog signal wiring separately from power conductors and high-noise switching circuits where practical.
5. Shielding: Terminate cable shields according to the system grounding design. Avoid unintended ground loops.
6. Redundancy: Verify the intended single or dual-redundant arrangement before connecting field circuits.
7. Electrical Verification: Check wiring continuity, terminal tightness, and insulation condition before applying power.
8. Environmental Conditions: Maintain the specified operating temperature range of -20 to +60 deg C and protect the assembly from environmental conditions outside its IP20 enclosure classification.
