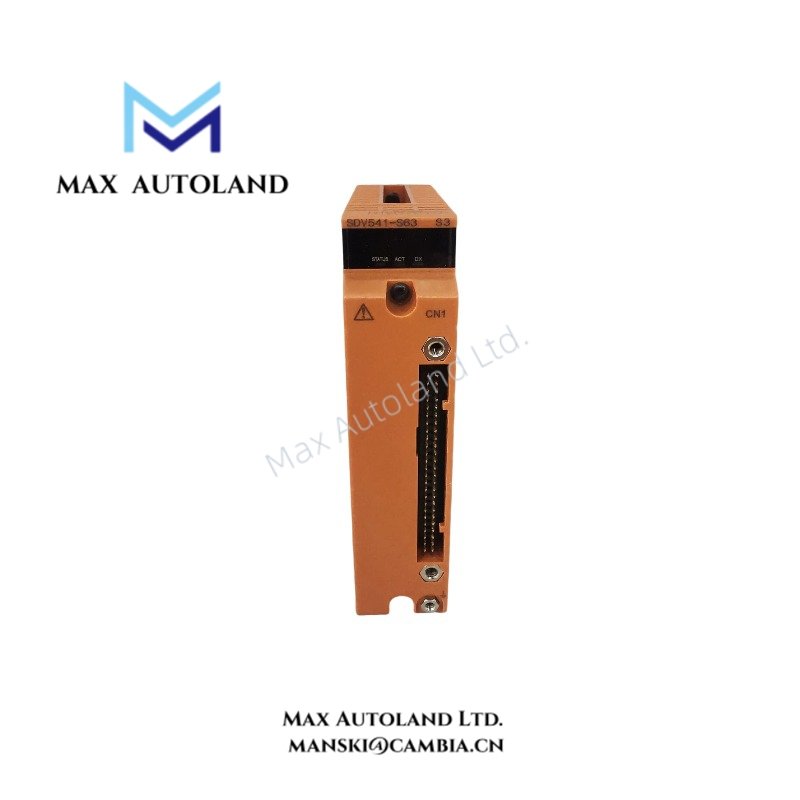

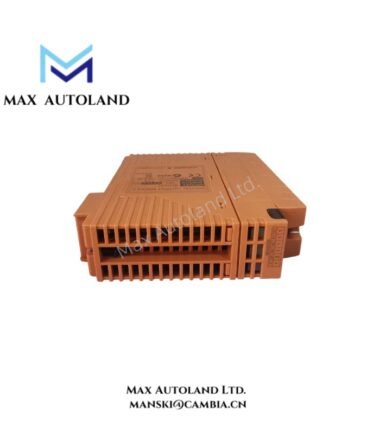

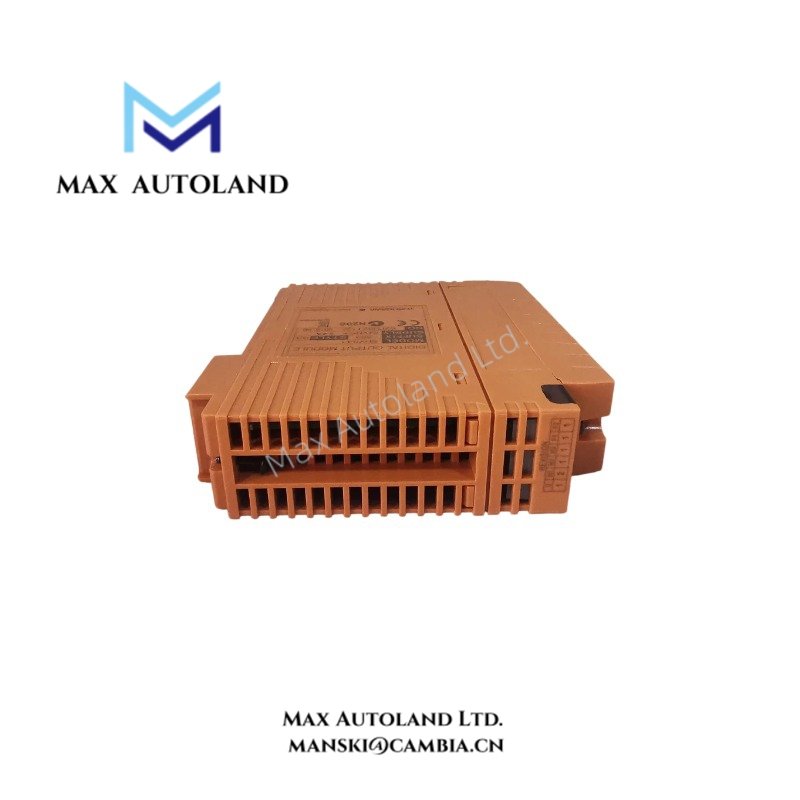

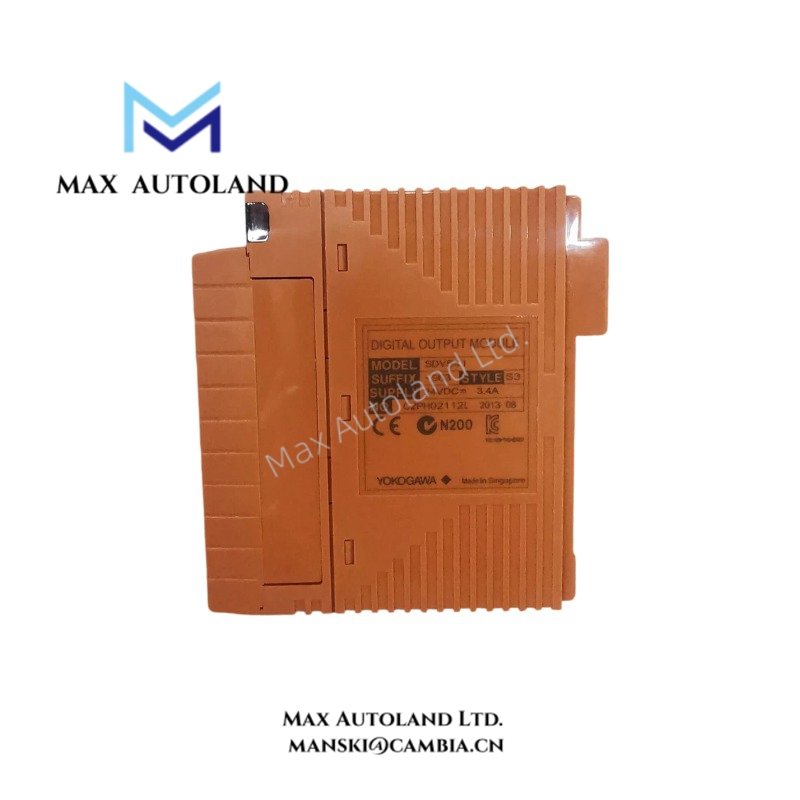

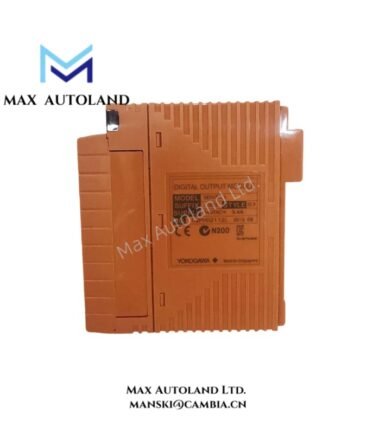

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV869-P01 |
| Brand | Yokogawa |
| Product Type | Digital I/O Module |
| Number of Input Channels | 32 |
| Number of Output Channels | 32 |
| Signal Isolation | Common isolation for every 16 channels |
| Contact Input – OFF Signal | 100 kOhm or more |
| Contact Input – ON Signal | 200 Ohm or less |
| Minimum Short-Circuit Input Current | 1.25 mA |
| Voltage Input – OFF Signal | 4.5 to 25 VDC |
| Voltage Input – ON Signal | Within +/- 1 VDC, with 200 Ohm or less |
| Input Contact Rating | 5 VDC, 20 mA or more |
| Input Response Time | 8 ms for status input |
| Output Signal | Transistor contact |
| Output Contact Rating | 30 VDC, 100 mA maximum for inductive or resistive loads |
| Output Response Time | 16 ms or less |
| Pulse Width | 8 ms, with up to 1 ms additional ON/OFF delay |
| Maximum Current Consumption | 800 mA at 5 VDC |
| Weight | Approximately 0.30 kg |
| External Connection | Dedicated KS9 cable |
| Compatible Card | ST5 compatible |
Input and Output Functions
The ADV869-P01 accepts contact and voltage input signals. For contact inputs, the specified OFF and ON resistance thresholds define the conditions used to distinguish input states. Voltage inputs use a separate voltage range for OFF detection and a near-zero voltage condition for ON detection. The pushbutton input function is not supported.
The output section uses transistor contacts with a maximum rated load of 30 VDC and 100 mA. Both inductive and resistive loads are listed, so the connected load must remain within the specified rating. The pulse-width function supports time-proportional output control, with an 8 ms pulse width and an additional ON/OFF delay of up to 1 ms.
Ordering Configuration
The supplied ordering information identifies the following suffix options:
| Code | Description |
|---|---|
| ADV869- | Base model designation |
| P | With pulse-width function / time-proportional output function |
| 0 | Basic type; specified as a fixed value |
| 1 | With ISA Standard G3 option |
The source also lists ADV869-P00 and ADV869-P01 in the heading, while the detailed specifications identify ADV869-P01. Confirm the complete ordering code and suffix interpretation against the module nameplate before ordering.
Frequently Asked Questions
Q: How many input and output channels does the ADV869-P01 provide?
A: The module provides 32 input channels and 32 output channels. Signal isolation is specified as common for every 16 channels.
Q: What input signals does the module accept?
A: It accepts contact inputs and voltage inputs. Contact inputs use resistance thresholds, while voltage inputs use the specified OFF and ON voltage conditions. The pushbutton input function is not supported.
Q: What should be checked when connecting output loads?
A: Check that the load operates within the maximum output rating of 30 VDC and 100 mA. The source specifies both inductive and resistive loads; confirm the actual load requirements before connecting equipment.
