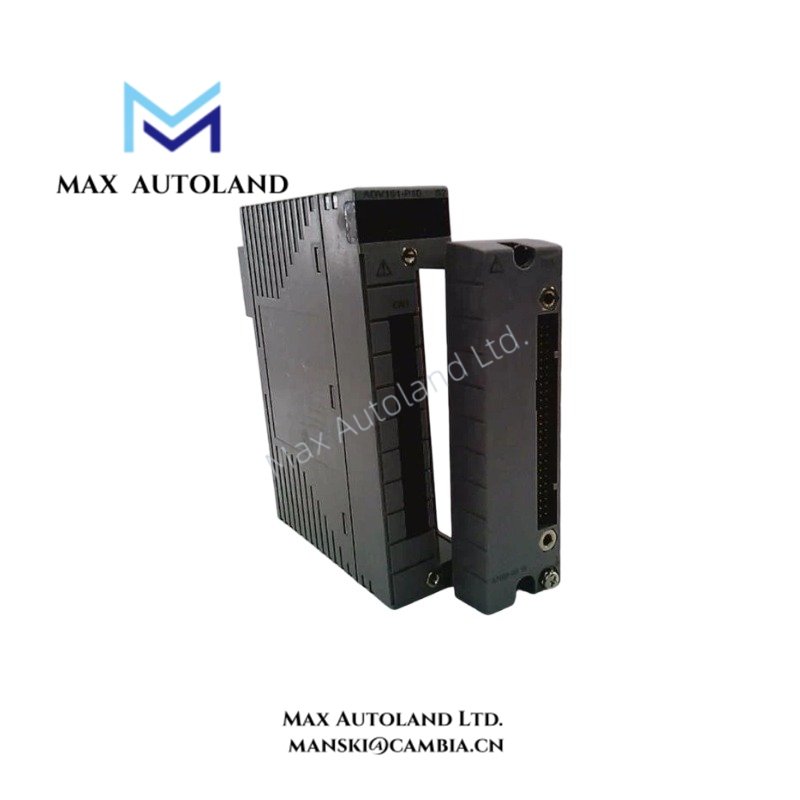

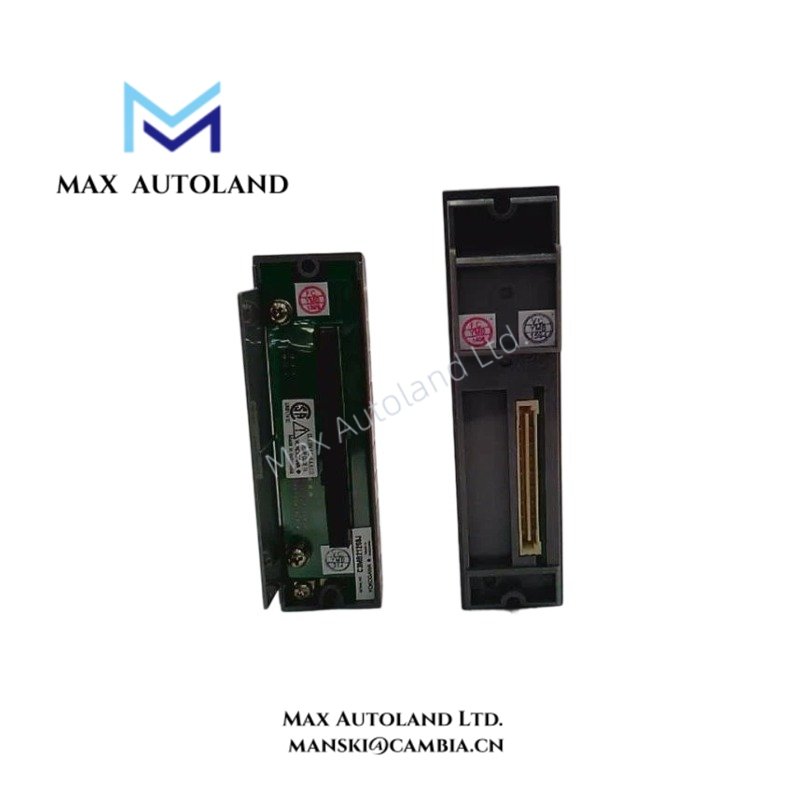

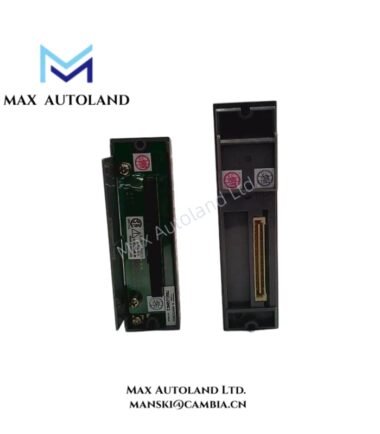

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV169-P01 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| Compatible Module Type | ST6 compatible |
| Number of Input Channels | 64 |
| Channel Configuration | Common connection every 16 channels |
| Contact Input – OFF Signal | 100 kOhm or more |
| Contact Input – ON Signal | 200 Ohm or less |
| Minimum Contact Short-Circuit Current | 1.25 mA |
| Voltage Input – OFF Signal | 4.5 to 25 VDC |
| Voltage Input – ON Signal | +/-1 VDC, 200 Ohm or less |
| Power Consumption | 800 mA at 5 VDC |
| Approximate Weight | 0.30 kg |
| Connection Cable | Dedicated KS9 cable |
Input Signal Characteristics
The ADV169-P01 accepts both contact inputs and DC voltage inputs. For contact signals, the specified OFF and ON resistance thresholds help distinguish open and closed contact states. For voltage inputs, the module defines separate OFF and ON signal ranges, which should be checked against the field device’s output characteristics before installation.
The 64 input channels are arranged in groups of 16 with a common connection for each group. This configuration is relevant when planning field wiring and checking the electrical arrangement of connected devices.
System Compatibility
The module is specified for installation in the following Yokogawa units:
- ESB Bus Node Units: ANB10S and ANB10D
- Optical ESB Bus Node Units: ANB11S and ANB11D
- Field Control Units: AFV30S, AFV30D, AFV40S, and AFV40D
The module is designed for compatible ST6 configurations. Confirm the host unit, slot requirements, and system configuration before selecting the module for replacement or expansion.
Model and Suffix Identification
The ordering information identifies ADV169 as the digital input module model and -P as the standard type designation. The supplied ordering table also lists the following configuration codes:
| Code | Description |
|---|---|
| ADV169 | Digital input module for compatible ST6, 64-channel configuration |
| -P | Standard type |
| 0 | Fixed code |
| 0 | Basic type |
| 1 | With ISA Standard G3 option |
The complete order code should be checked against the module nameplate. The supplied information lists the ISA Standard G3 option separately from the basic type, so the exact suffix combination should be verified before ordering.
Frequently Asked Questions
Q: How many digital input channels does the ADV169-P01 provide?
A: It provides 64 digital input channels, arranged with a common connection for every group of 16 channels.
Q: Can the ADV169-P01 accept both contact and voltage signals?
A: Yes. The specified inputs include contact signals and DC voltage signals. The field signal must meet the relevant ON and OFF thresholds listed in the technical specifications.
Q: Which Yokogawa units support the ADV169-P01?
A: The listed compatible units are ANB10S, ANB10D, ANB11S, ANB11D, AFV30S, AFV30D, AFV40S, and AFV40D. Confirm the specific host configuration before installation.
