Overview
Specification
| Parameter | Specification |
|---|---|

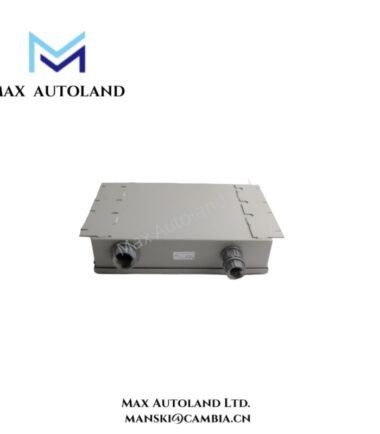

| Model | 9905-860 |
| Product Type | Digital Control Unit |
| Power Supply | 18–32 VDC nominal |
| Speed Sensing | Magnetic pickup or frequency input |
| Speed Range | 1000 to 20,000 Hz (adjustable) |
| Actuator Output | 20–200 mA (proportional current driver) |
| Analog Inputs | Configurable for sensor feedback and trim control |
| Digital Inputs | Start/stop, idle, droop, and shutdown signals |
| Analog Outputs | 0–5 VDC for monitoring |
| Ambient Temperature | –40°C to +70°C |
| Storage Temperature | –55°C to +85°C |
| Mounting | Panel or enclosure |
| Dimensions | Approx. 205 mm × 150 mm × 60 mm |
| Weight | 1.2 kg (approx.) |
| Certifications | CE, UL/cUL, CSA, and marine type approvals |
FAQ
It provides precise electronic speed control for diesel and gas engines in industrial and power generation applications.
Q2: Can the 9905-860 be used with older mechanical systems?
Yes. It can replace mechanical governors and retrofit into existing control architectures with minimal modification.
Q3: Does it support remote configuration?
Yes. The controller allows parameter adjustments and diagnostics through dedicated software interfaces.
Q4: What protection features does it include?
It features over-speed protection, actuator current limiting, and fail-safe shutdown to prevent equipment damage.
Q5: Which industries use the 9905-860 most commonly?
It is frequently used in marine, energy, oil and gas, and industrial automation sectors.
