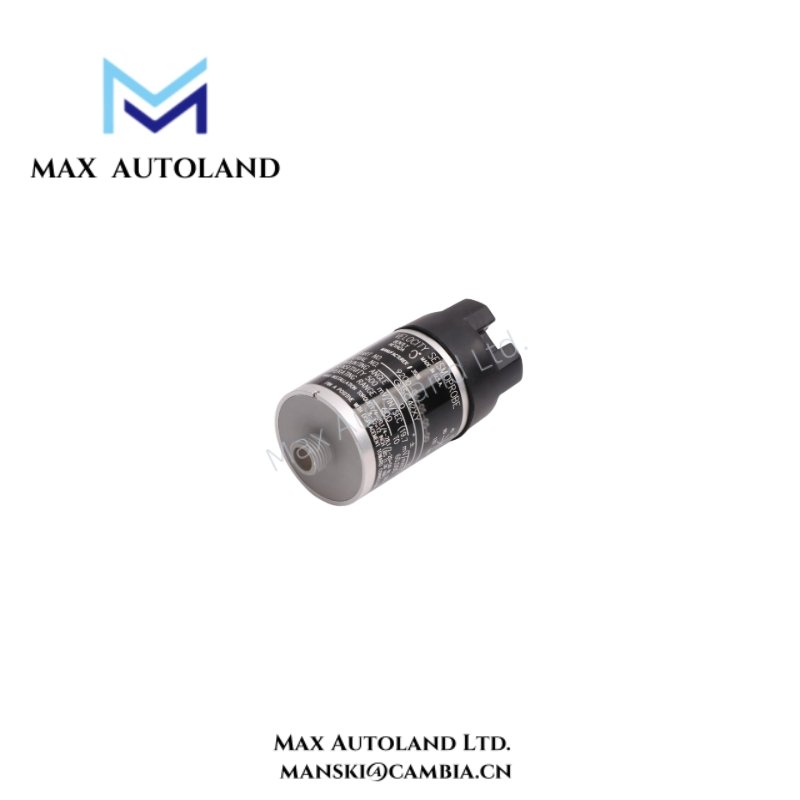

Overview
Moreover, its two-wire configuration requires no external power, which simplifies installation and supports portable measurement applications. Therefore, this transducer offers a dependable solution for long-term vibration monitoring in turbines, compressors, and rotating industrial equipment.
Specification
| Category | Specification |
|---|---|
| Electrical | |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% |
| Load | 10 kΩ between terminals A and B |
| Sensitivity Temperature Coefficient | 0.2% per °C |
| Frequency Response | 4.5 to 1000 Hz (+0, -3 dB typical) |
| Dynamic Operating Range | 2.54 mm (0.1 in) peak-to-peak maximum displacement |
| Velocity Range | 25 mm/s (1 in/s) at +22°C, 100 Hz |
| Coil Resistance | 1.25 kΩ ±5% |
| Inductance | 125 mH typical |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s at 100 Hz |
| Shock Resistance | Withstands 50 g peak along non-sensitive axis |
| Transverse Sensitivity | ±10% maximum at 100 Hz and 1 in/s |
| Polarity | Pin A positive relative to Pin B when case moves toward connector |
| Maximum Cable Length | 305 m (1,000 ft) |
| Environmental Limits | |
| Operating Temperature | -29°C to +121°C (-20°F to +250°F) |
| Dust/Moisture Resistance | Dust- and moisture-sealed |
| Relative Humidity | Up to 95% non-condensing; 100% non-submerged with integral cable |
| Maximum Altitude | 2000 m (6,561 ft) above sea level |
| Mechanical Configuration | |
| Transducer Mounting Angle / Minimum Operating Frequency Option | 0 ±100, 10 Hz (600 cpm) |
| Connector / Cable Option | Side Mount (no cable) |
| Mounting Base Option | Circular; M10×1 stud |
| Agency Approval Option | No Approvals |
FAQ
No. It is a self-generating two-wire transducer and does not require any external power source.
Q2: Can it be used with Bently Nevada 3500 Monitoring Systems?
Yes. It is fully compatible with both 3300 and 3500 series vibration monitoring racks.
Q3: What type of vibration does it measure?
It measures absolute vibration velocity relative to free space, suitable for bearing housings and machine structures.
Q4: How long can the signal cable be?
The cable length can reach up to 305 meters (1,000 feet). For longer lengths, contact Bently Nevada for guidance on frequency roll-off.
Q5: What industries typically use this model?
It is commonly used in oil and gas, power generation, chemical processing, and manufacturing industries for predictive maintenance and machine protection.
