Overview

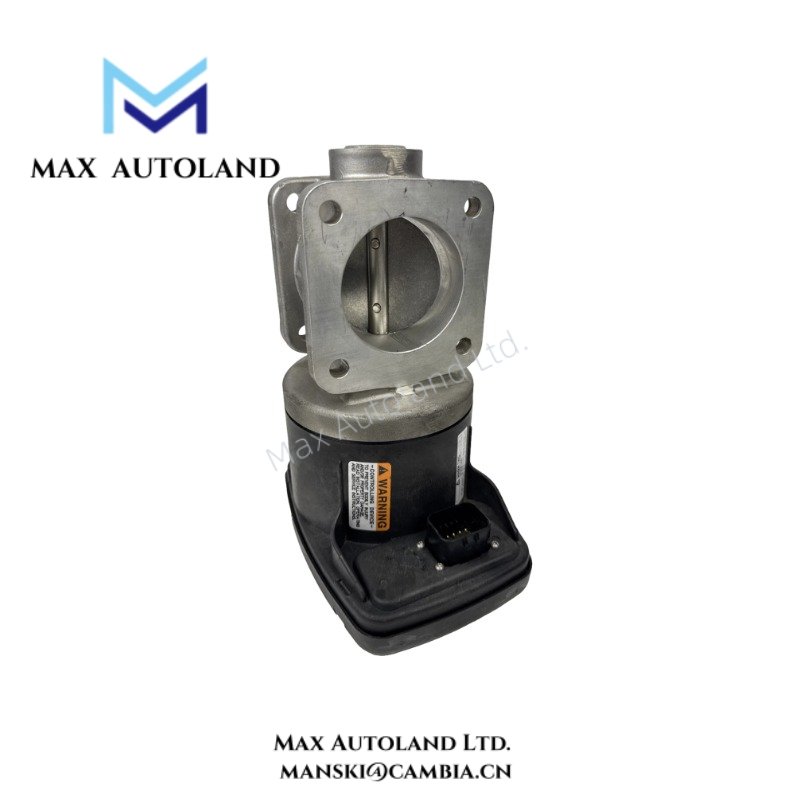

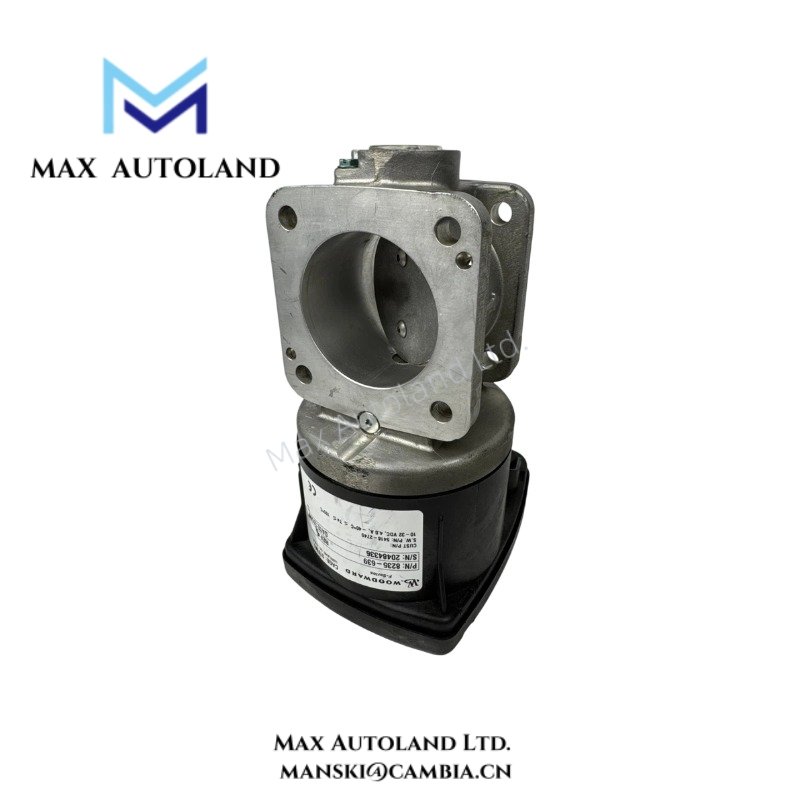

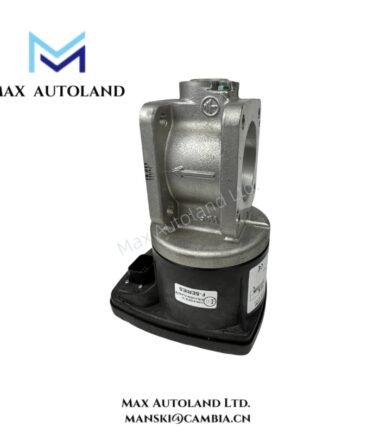

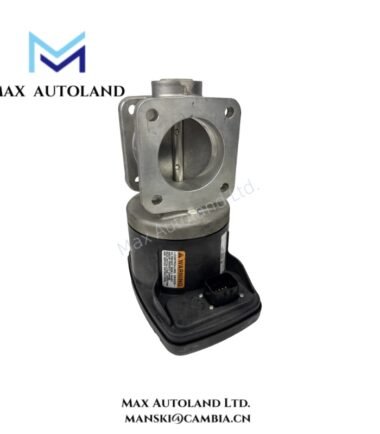

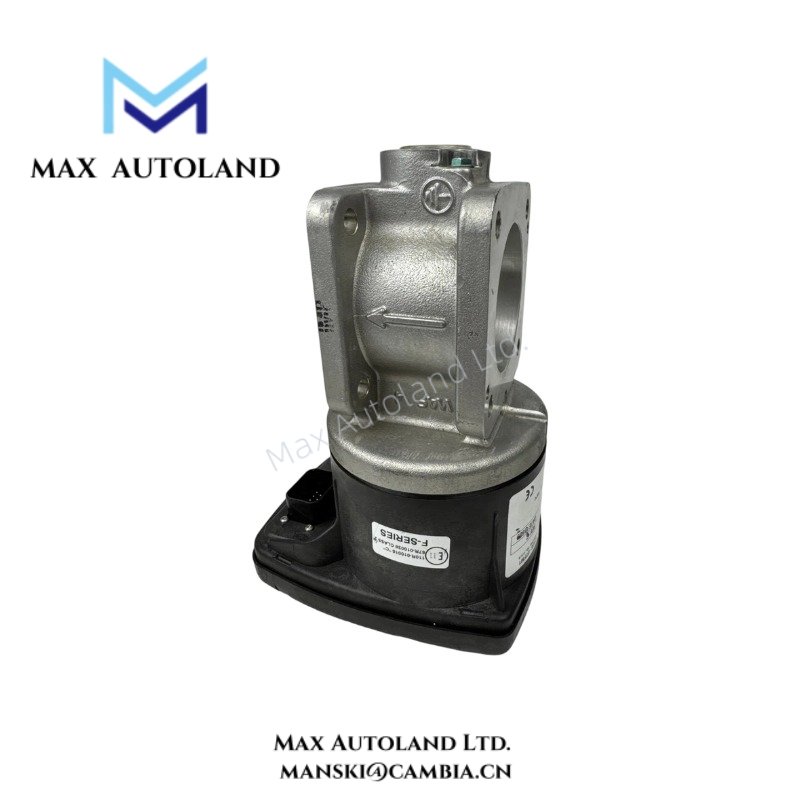

Woodward designs the 8235-639 as an integrated throttle body actuator for precise engine control applications.
It regulates airflow and fuel delivery to ensure stable combustion performance in industrial engines.
Engineers rely on Woodward actuator systems to improve responsiveness and operational efficiency.
The 8235-639 combines mechanical throttle body design with electronic actuation control.
It supports accurate positioning control in demanding power and engine management systems.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model Number | 8235-639 |
| Product Type | Integrated Throttle Body Actuator |
| Function | Airflow and throttle position control |
| Application | Industrial engines, turbine systems, power generation |
| Control Type | Electronic actuator with mechanical throttle body |
| Operating Voltage | 12–24 VDC system dependent |
| Power Consumption | Approx. 10–25 W depending on load |
| Actuation Type | Electromechanical rotary actuation |
| Position Feedback | Integrated position sensor feedback system |
| Response Time | < 100 ms typical control response |
| Torque Output | Engine calibration dependent |
| Connection Interface | Electrical harness connector + mechanical intake interface |
| Material | High-strength aluminum alloy housing |
| Cooling Method | Air-cooled via engine intake airflow |
| Operating Temperature | -40°C to +105°C |
| Storage Temperature | -40°C to +125°C |
| Vibration Resistance | Industrial engine-grade vibration tolerance |
| Mounting Type | Direct engine throttle body mounting |
| Dimensions | Approx. 180 mm × 140 mm × 120 mm (reference design size) |
| Weight | Approx. 1.2–1.8 kg |
| Protection Rating | Industrial sealed housing (engine compartment use) |
| Compliance | Woodward industrial engine control standards |
FAQ
Q1: What is the function of Woodward 8235-639?
It controls throttle position and regulates airflow in engine systems.
Q2: Is this actuator electronically controlled?
Yes, it uses an electromechanical system with integrated position feedback.
Q3: What industries use this actuator?
It is widely used in power generation, turbines, and industrial engines.
Q4: What is the operating temperature range?
It operates between -40°C and +105°C in harsh environments.
Q5: Do you provide original products and warranty support?
We supply new original units and offer 30-day return support for quality issues.
