Overview

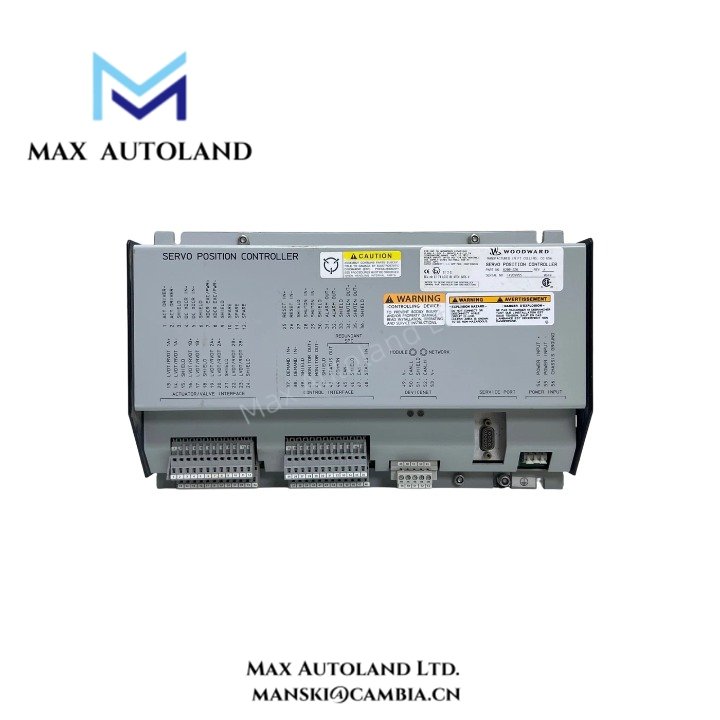

The Woodward 8200-226 Servo Position Controller provides precise actuator positioning for industrial and power generation applications. It ensures rapid response and accurate control, maintaining system stability even under high-load conditions. This controller integrates seamlessly with servo valves and engine control systems, delivering consistent and reliable performance.

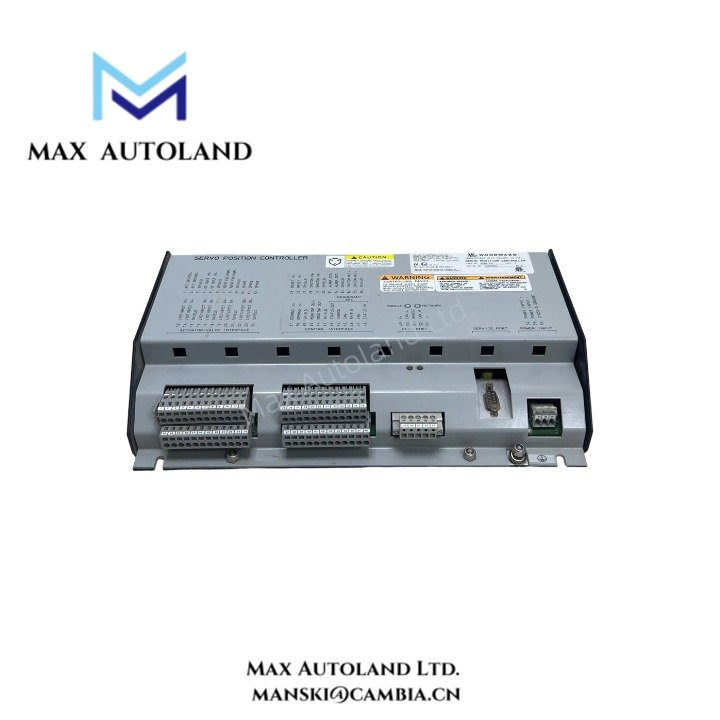

Constructed with robust electronics, the 8200-226 offers excellent resistance to vibration and temperature fluctuations. Its compact design allows straightforward installation in control panels or engine compartments, while connectors support secure signal and power interfacing.
Key Features
- High-precision servo position control for industrial and engine applications
- Rapid response time ensures consistent actuator movement and stability
- Compact form factor simplifies installation and reduces panel space requirements
- Durable electronics tolerate vibration, temperature extremes, and electrical noise
- Compatible with standard servo valves and industrial control interfaces
Specification
| Category | Parameter | Specification |
|---|---|---|
| General | Manufacturer | Woodward |
| Model | 8200-226 | |
| Product Type | Servo Position Controller | |
| Application | Industrial actuators, engine control systems | |
| Electrical | Supply Voltage | 24 V DC nominal |
| Signal Input | 0–10 V DC, ±10 V for position command | |
| Signal Output | ±10 V DC to servo actuator | |
| Interface | Standard 15-pin connector for I/O and power | |
| Mechanical | Mounting | Panel or bracket mount |
| Dimensions (W × H × D) | 120 × 90 × 60 mm | |
| Weight | 1.2 kg | |
| Housing | Robust, vibration-resistant enclosure | |
| Performance | Control Range | ±100% of actuator stroke |
| Response Time | <25 ms to 90% of setpoint | |
| Accuracy | ±0.5% of full scale | |
| Environmental | Operating Temperature | -20–70 °C |
| Storage Temperature | -40–85 °C | |
| Vibration Resistance | 2 g (10–500 Hz) | |
| Compliance | Certifications | CE, UL, ISO9001 |
FAQ
Q1: Is the Woodward 8200-226 brand new and original?
A1: Yes, the 8200-226 is 100% original, sourced from certified Woodward distributors.
Q2: How soon can the controller be shipped?
A2: Shipment occurs within 3 days to 2 weeks depending on order size, using DHL or similar carriers.
Q3: What type of actuators does the 8200-226 support?
A3: It supports standard industrial and engine servo valves requiring precise positioning.
Q4: Can the controller withstand harsh environments?
A4: Yes, the 8200-226 tolerates vibration, electrical noise, and temperature extremes.
