Overview

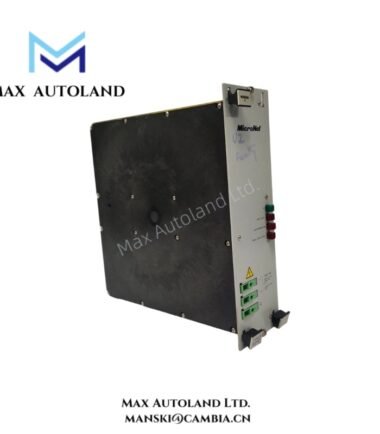

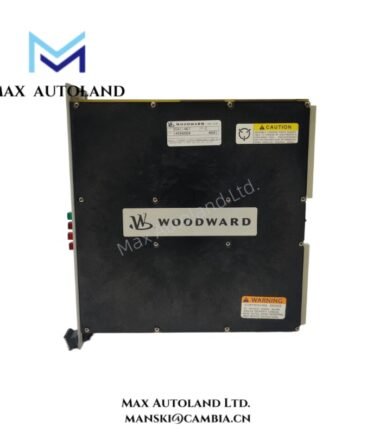

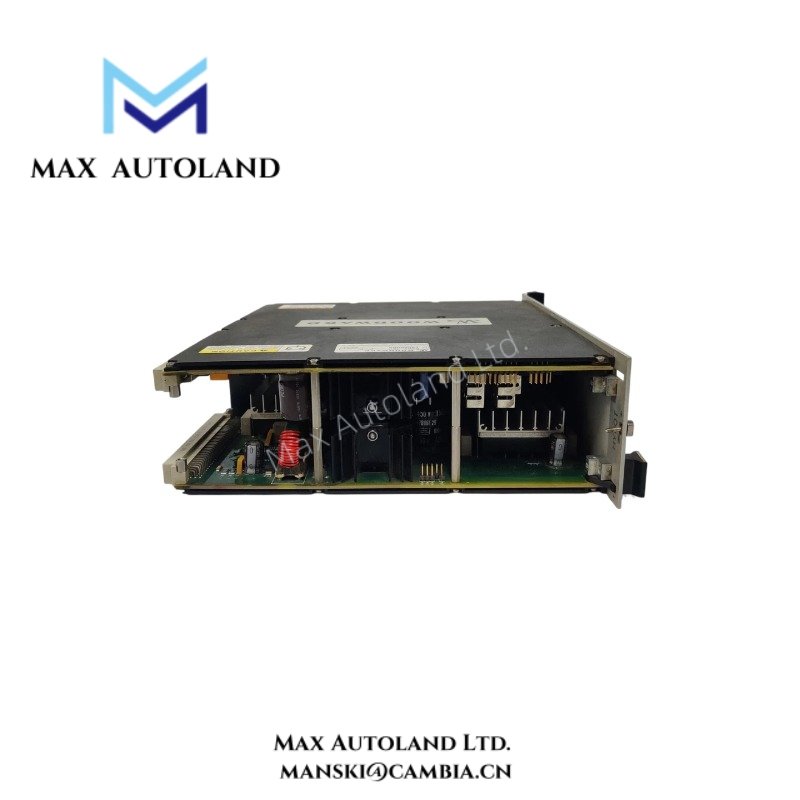

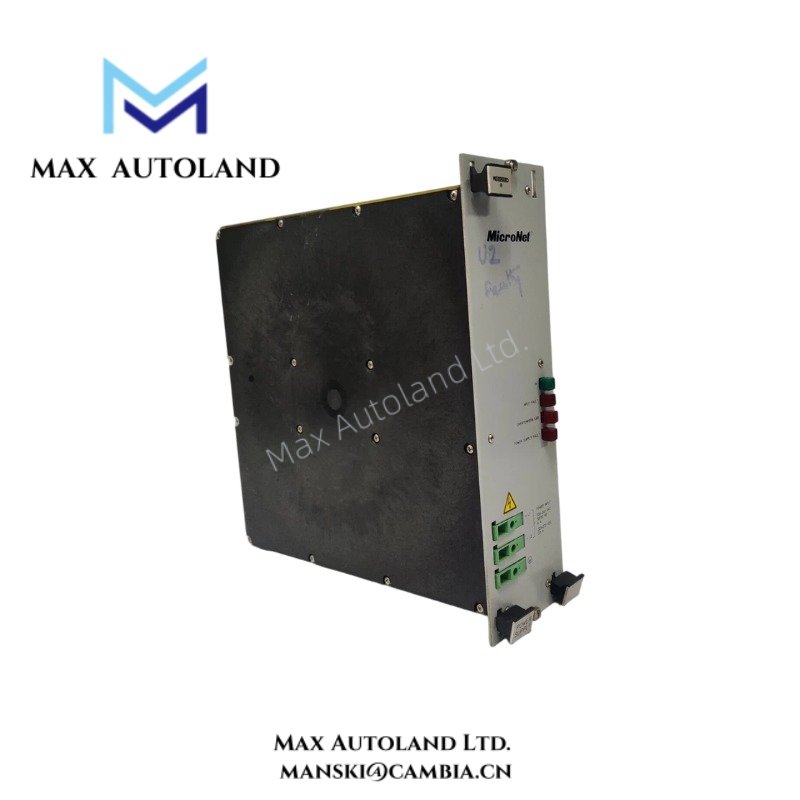

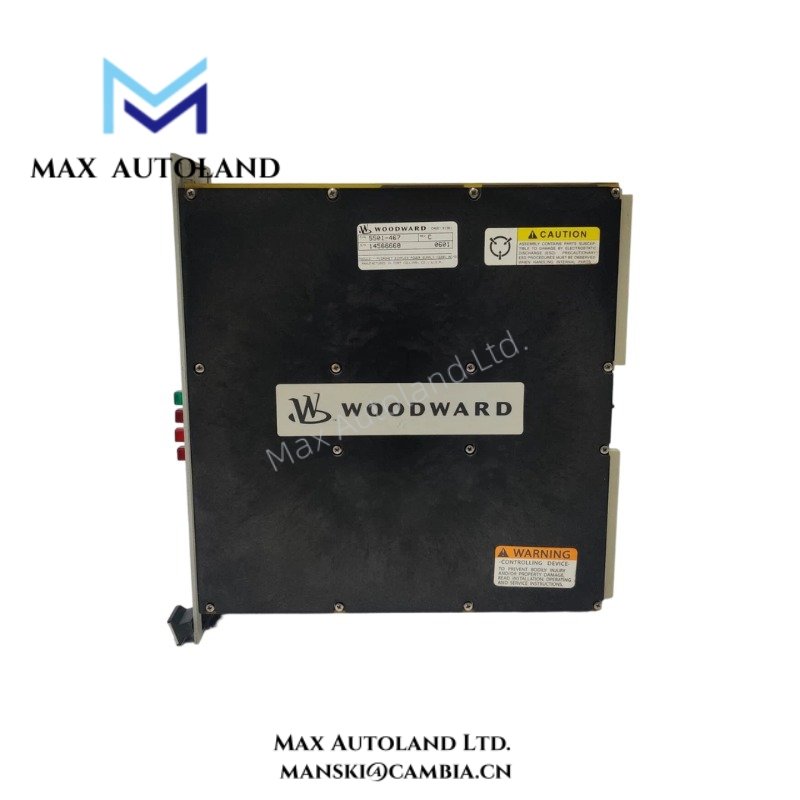

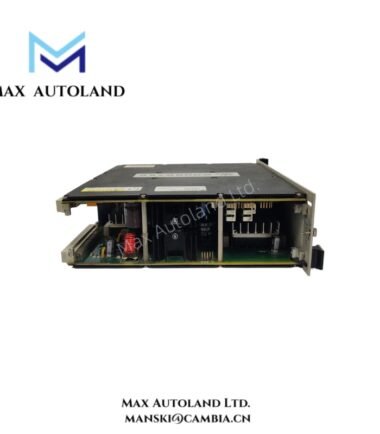

The 5501-467 is a Woodward MicroNet Simplex Power Supply Board designed for industrial control systems.
It provides stable and regulated DC power for MicroNet automation and turbine control architectures.
Moreover, the module ensures consistent energy distribution across connected control components.
Engineers rely on 5501-467 to maintain reliable system operation in critical environments.
Specification
| Parameter | Specification |
|---|---|
| Model | 5501-467 |
| Manufacturer | Woodward |
| Series | MicroNet Digital Control |
| Module Type | Simplex Power Supply Board |
| Power Architecture | Single-channel simplex power supply design |
| Input Voltage | 100–240 V AC (industrial wide-range input) |
| Output Voltage | 24 V DC regulated output |
| Output Stability | High-precision voltage regulation for control systems |
| Power Capacity | Supports MicroNet control system load requirements |
| Power Distribution | Backplane-based power distribution |
| Energy Storage | Internal capacitor-based short-term energy buffering |
| Efficiency | High-efficiency conversion design for reduced heat loss |
| Interface Type | Direct MicroNet backplane connection |
| Protection Functions | Over-voltage, over-current, and thermal protection |
| Diagnostics | Built-in power status monitoring |
| LED Indicators | Power status and fault indication LEDs |
| Redundancy | Simplex architecture (non-redundant configuration) |
| Dimensions | Approx. 180 × 120 × 40 mm |
| Weight | Approx. 0.8–1.2 kg |
| Mounting Type | Rack-mounted control board |
| Cooling Method | Passive convection cooling |
| Housing Material | Industrial-grade protective electronics board assembly |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | Designed for industrial turbine environments |
| Application | Turbine control systems, MicroNet automation, industrial power supply |
FAQ
Q1: Is the product new and original?
Yes, the 5501-467 is brand new, original, and factory sealed.
Q2: Do you have stock available?
Yes, we maintain 5501-467 in stock for fast shipment.
Q3: What is the delivery time?
We ship within 3 days to 2 weeks depending on order size and logistics conditions.
Q4: Which logistics do you use?
We commonly use DHL and other reliable international shipping carriers.
Q5: What if there is a quality issue?
We support 30-day returns if the 5501-467 module has any quality problems.
