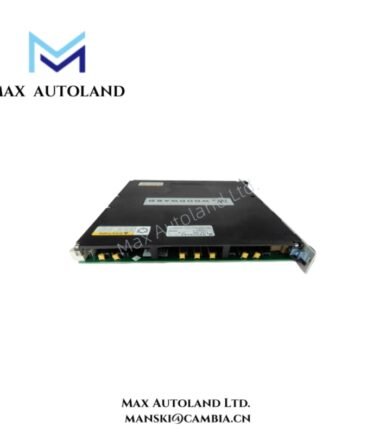

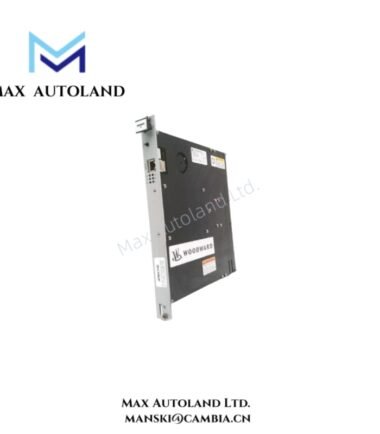

Overview
Built with industrial-grade components, the 5466-411 provides superior durability and consistent performance even under demanding environmental conditions. Therefore, it offers an efficient and scalable solution for upgrading control architectures that require secure and high-speed Ethernet communication.
Specification
| Parameter | Description |
|---|---|
| Model | 5466-411 |
| Manufacturer | Woodward |
| Product Type | MicroNet Ethernet Module |
| Function | Network communication interface for control systems |
| Communication Ports | Dual 10/100 Mbps Ethernet ports |
| Supported Protocols | TCP/IP, Modbus/TCP, proprietary MicroNet protocols |
| Power Supply | 18–32 VDC nominal |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Cooling | Natural convection |
| Mounting | Rack-mounted in MicroNet chassis |
| Diagnostic Indicators | Link, Activity, Status LEDs |
| Dimensions | Approx. 260 mm × 160 mm × 30 mm |
| Weight | Approx. 1.1 kg |
FAQ
A1: It provides Ethernet connectivity for MicroNet control systems, enabling high-speed communication with HMIs and supervisory devices.
Q2: Does the module support network redundancy?
A2: Yes. It offers dual Ethernet ports that support redundant configurations for continuous operation.
Q3: What communication protocols are supported?
A3: The 5466-411 supports TCP/IP, Modbus/TCP, and Woodward’s proprietary communication protocols.
Q4: Is the module compatible with existing MicroNet systems?
A4: Yes. It integrates seamlessly into all standard Woodward MicroNet Digital Control platforms.
Q5: How does it enhance system reliability?
A5: Its robust design, diagnostic indicators, and redundancy support help maintain stable and secure network communication.
