51307039-100 Honeywell Circuit Breaker Box Assembly

Overview

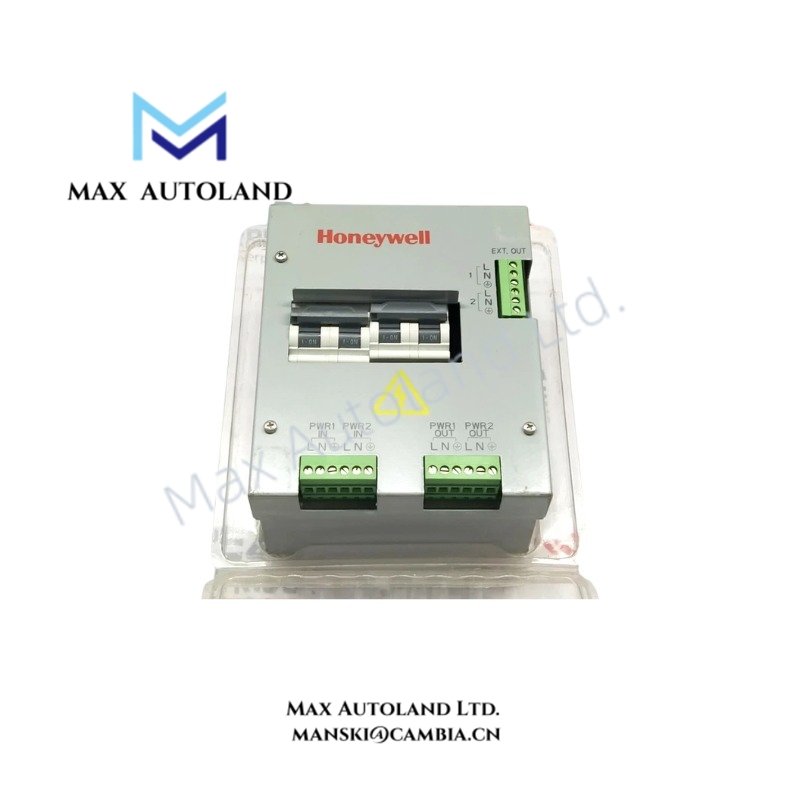

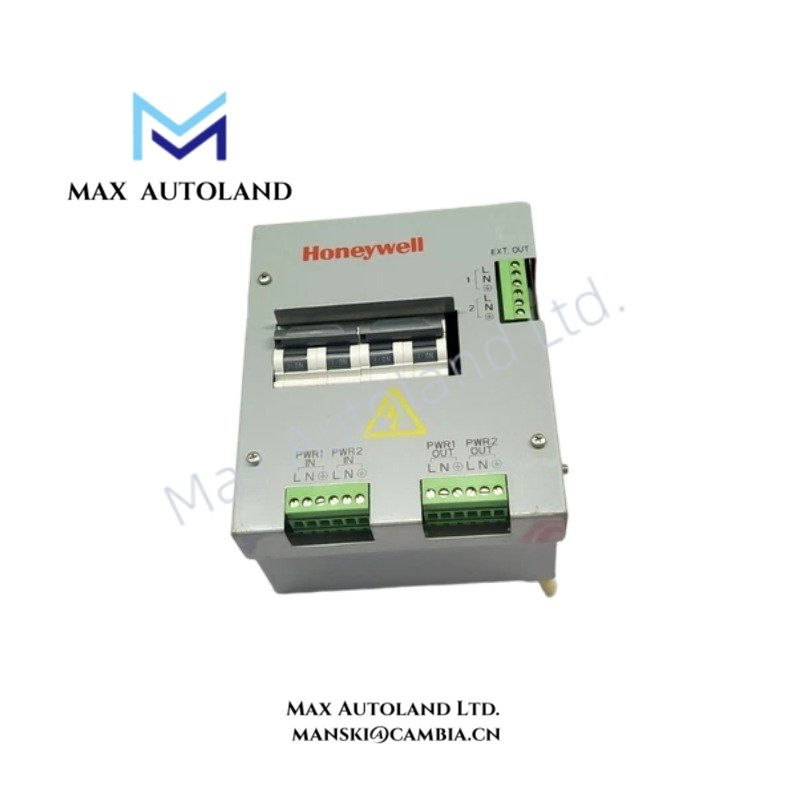

The Honeywell 51307039-100, also cataloged as the 51307039-100 Circuit Breaker Box Assembly, provides AC power distribution control with switched input isolation for Honeywell industrial control system hardware installations.

Hardware Specifications

Honeywell AC Power Distribution and Isolation Characteristics

The Honeywell 51307039-100 Circuit Breaker Box Assembly manages AC power routing through dedicated input, output, and extension connections. The assembly provides two independent power input paths, two power output paths, and two power extension paths for connected equipment distribution.

Additionally, the two front-mounted switches allow operators to manually control AC input activation and isolation. This switching function supports maintenance procedures by allowing technicians to disconnect incoming power before servicing connected control equipment.

The module functions as a power interface component rather than a signal processing device. Therefore, it does not provide process measurement functions such as 4-20 mA HART loop communication, FOUNDATION Fieldbus connectivity, or channel-to-channel signal isolation.

Frequently Asked Questions

Q: What voltage range does the Honeywell 51307039-100 support?
A: The assembly supports 100-120 VAC and 220-240 VAC input and output voltage ranges according to the provided technical data.

Q: How many power connection paths are available on this assembly?
A: The unit provides two power inputs, two power outputs, and two power extension connections for AC distribution.

Q: Does the 51307039-100 provide communication or control signal processing?
A: No. The assembly performs AC power switching and distribution functions and does not process industrial communication signals or field measurement inputs.

Field Installation Guidelines

Install the Honeywell 51307039-100 in a protected control cabinet environment with appropriate mechanical support. Verify that the supply voltage matches the specified AC input range before energizing the assembly.

Route AC power wiring separately from low-level analog and communication cables to reduce electrical interference. Maintain proper protective grounding according to the cabinet electrical design and applicable industrial installation standards.

Before maintenance activities, use the integrated switches to isolate AC input power. Confirm the absence of hazardous voltage with suitable test equipment before accessing wiring terminals.

Inspect all power connections for secure termination and check cable routing to prevent mechanical stress on the assembly housing and connectors.
