Overview

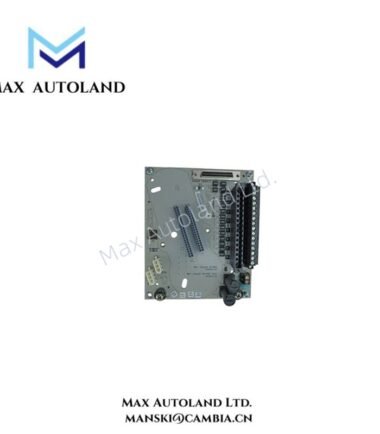

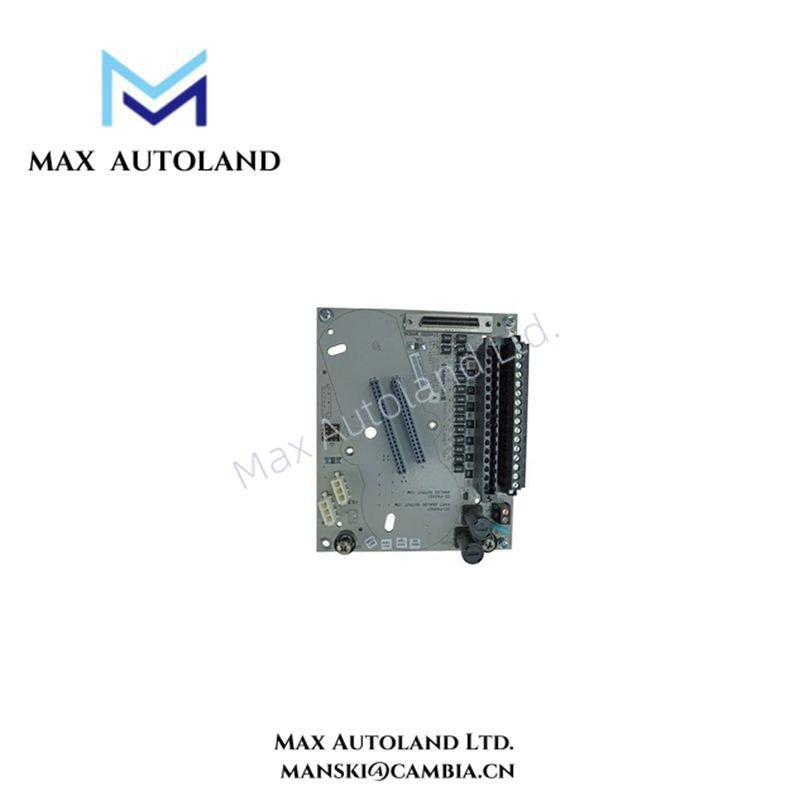

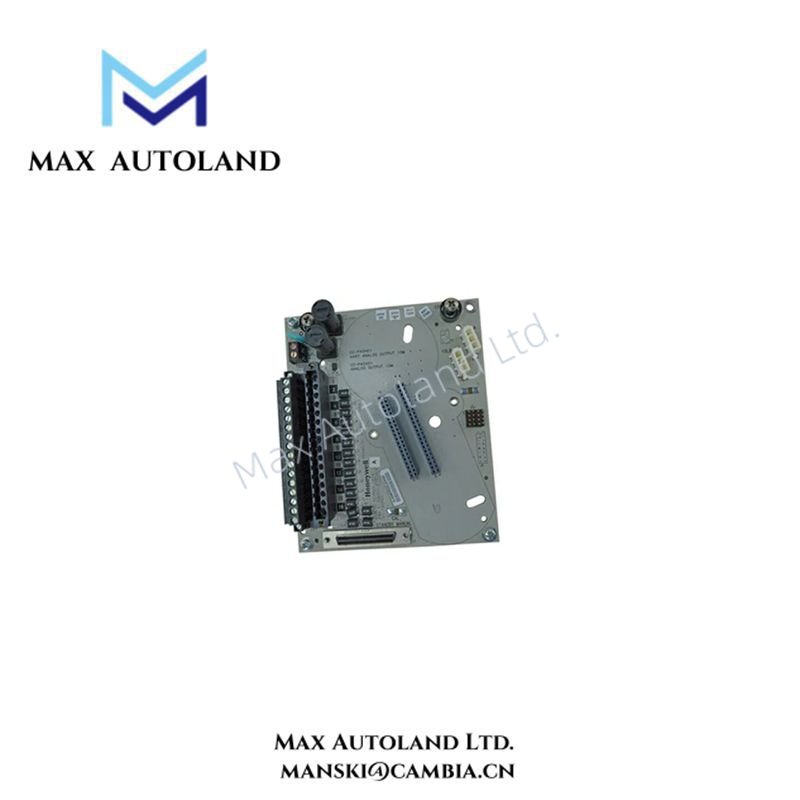

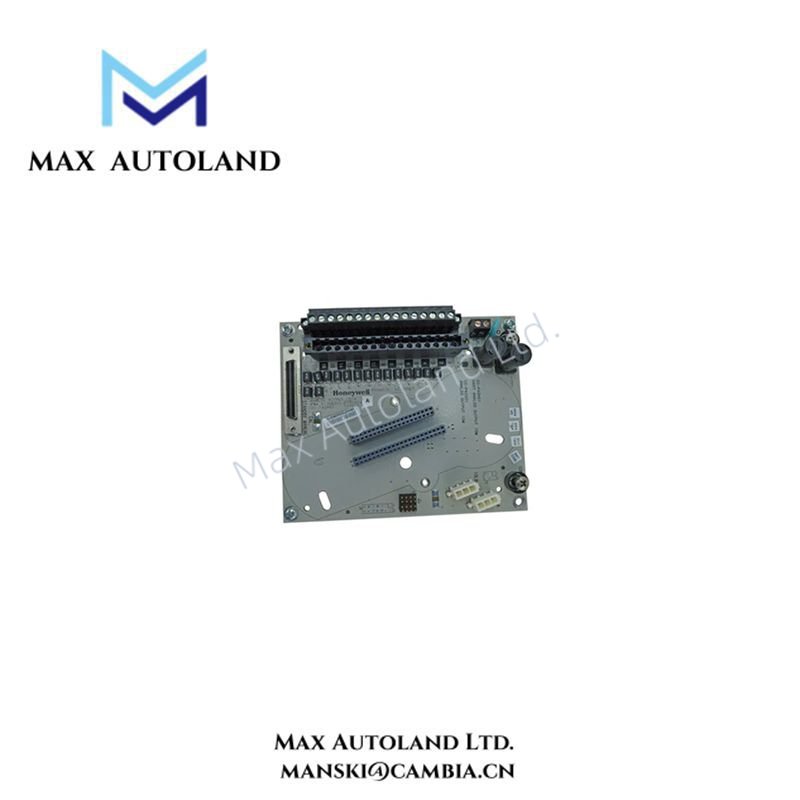

The Honeywell 8C-TAIM01 is a coated Low-Level Multiplexer (LLMUX) Input/Output Termination Assembly (IOTA) designed for the Experion C300 controller within the Series 8 platform. This module provides 64 input channels, facilitating the connection of multiple low-level analog signals to the control system. It supports various signal types, including thermocouples and Resistance Temperature Detectors (RTDs), making it suitable for temperature measurement applications in industrial processes.
In virtually all configurations, the C300 controller and Series 8 I/O provides useful, maintainable process equipment connections in a smaller footprint than competitor systems. Installing Series 8 I/O modules contributes to overall total installed cost savings.
Specification
| Attribute | Specification |
|---|---|
| Model Number | 8C-TAIM01 |
| Manufacturer | Honeywell |
| Series | Experion Series 8 |
| Module Type | Low-Level Multiplexer IOTA (Coated) IOTA (64pt) PWA |
| Input Channels | 64 |
| Signal Types Supported | Thermocouples, RTDs |
| Power Supply | 24V DC |
| Mounting Type | DIN Rail |
| Coating | Yes (Conformal Coating Applied) |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
