Overview
Specification
| Parameter | Specification |
|---|---|
| Model | 330901-00-10-10-02-00 |

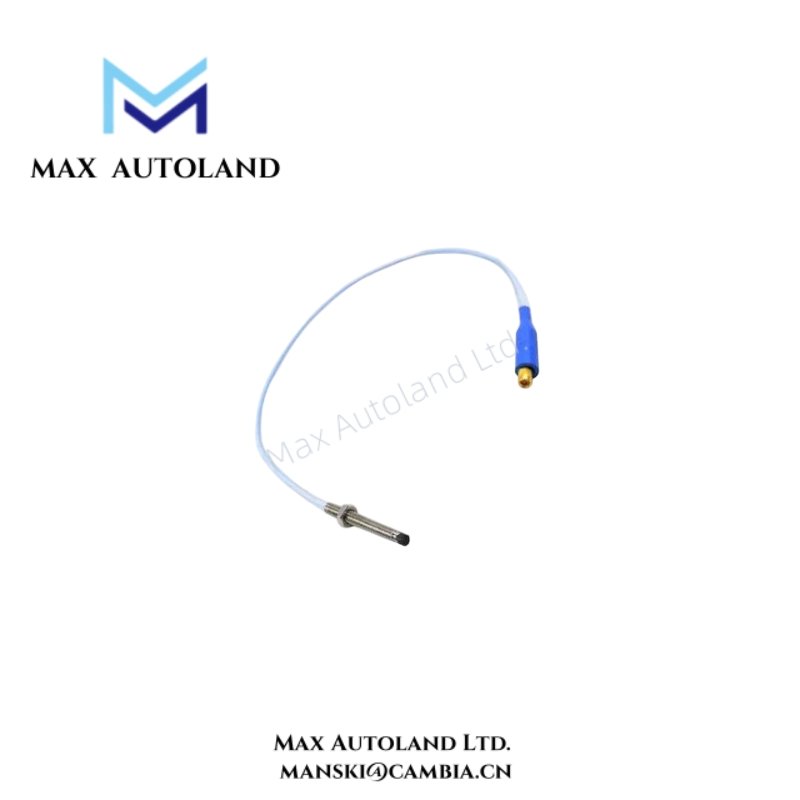

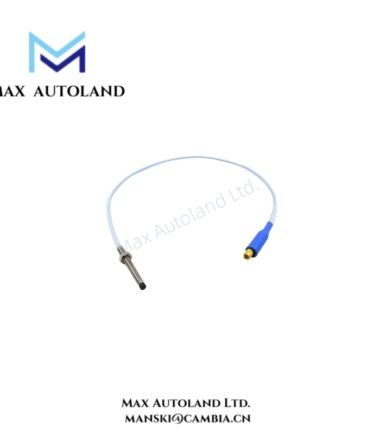

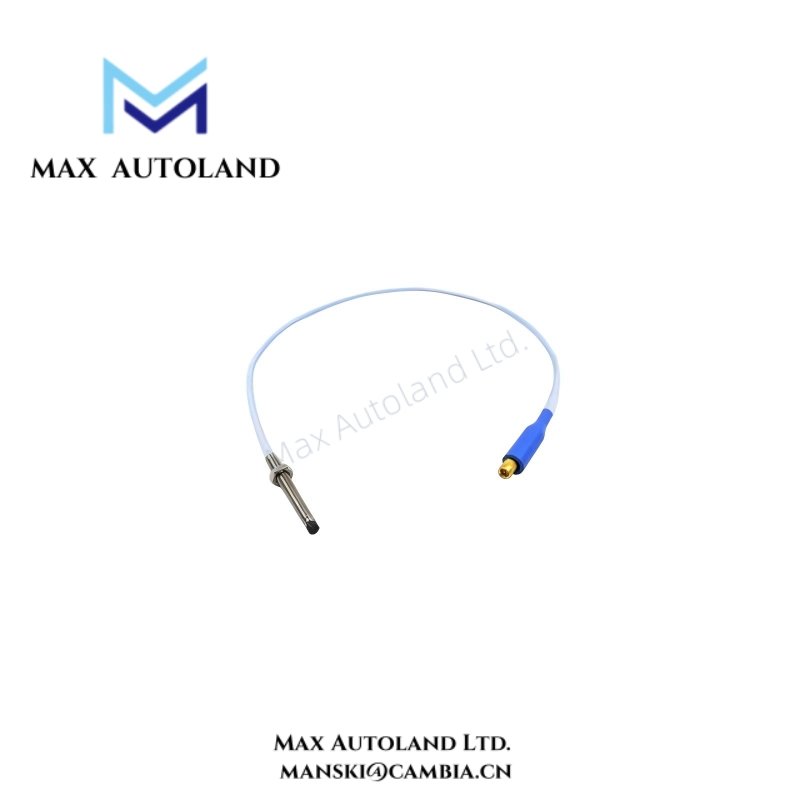

| Product Type | 3300 XL NSv Proximity Transducer Probe |
| Power Supply | -17.5 Vdc to -26 Vdc (12 mA max consumption) |
| Supply Sensitivity | < 2 mV change per volt input variation |
| Output Resistance | 50 Ω |
| Probe Type | Non-contacting eddy-current type |
| Sensing Element | AISI 4140 Steel Target |
| Probe DC Resistance | 0.5 m: 4.0 ± 0.5 Ω / 1.0 m: 4.2 ± 0.5 Ω / 5.0 m: 5.3 ± 0.7 Ω / 7.0 m: 5.9 ± 0.9 Ω |
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Extension Cable Resistance | Center: 0.220 Ω/m; Shield: 0.066 Ω/m |
| Field Wiring | 0.2–1.5 mm² (16–24 AWG), max length 305 m (1000 ft) |
| Linear Range | 1.5 mm (60 mils), from 0.25 to 1.75 mm (10–70 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±12.5% / -20% |
| DSL (Deviation from Straight Line) | ±0.06 mm (±2.3 mils) |
| Operating Temperature | 0°C to +45°C |
| Altitude Limit | Up to 2000 m |
| Total Length Option | 1.0 meter (39 inches) |
| Connector and Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| Compliance | CE, ATEX, and CSA/NRTL certifications |
| Agency Approval Option | Not required |
FAQ
It is designed for smaller shafts and restricted spaces where conventional 5 mm or 8 mm probes cannot be installed effectively.
Q2: Can it replace older 3300 RAM transducer systems?
Yes. The 3300 XL NSv system allows a straightforward upgrade from legacy RAM or 190 Series sensors using existing cables and hardware.
Q3: Is the probe certified for hazardous environments?
Yes, it complies with CE, ATEX, and CSA/NRTL certifications, ensuring safe operation in industrial zones.
Q4: What are its primary applications?
It’s ideal for compressors, pumps, and turbines requiring accurate vibration or axial position monitoring in limited-space setups.
