Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 2155/00-06-03-00-01-11-11-11-00-00-00 |

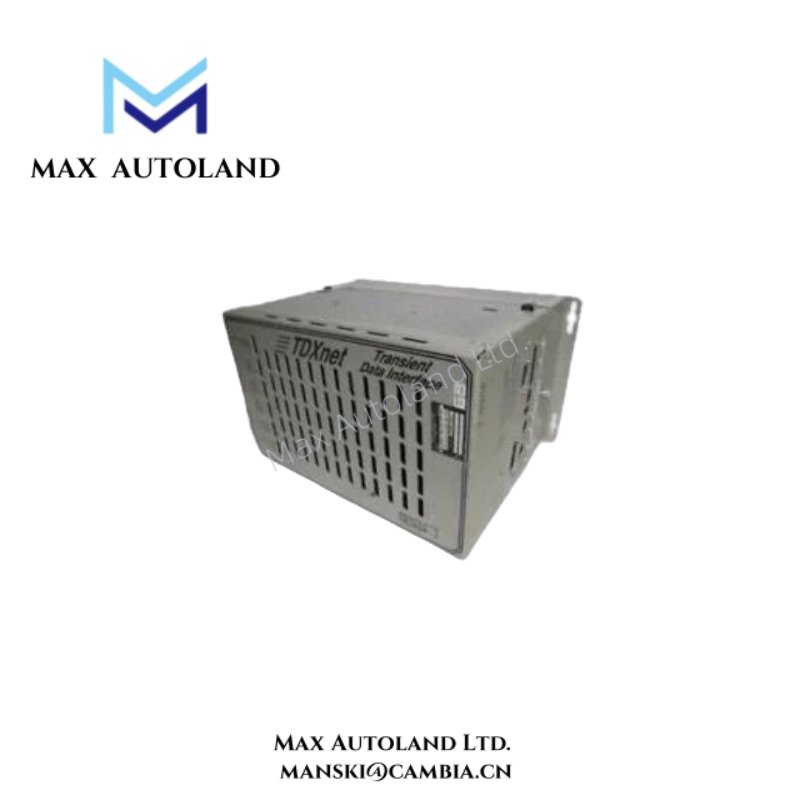

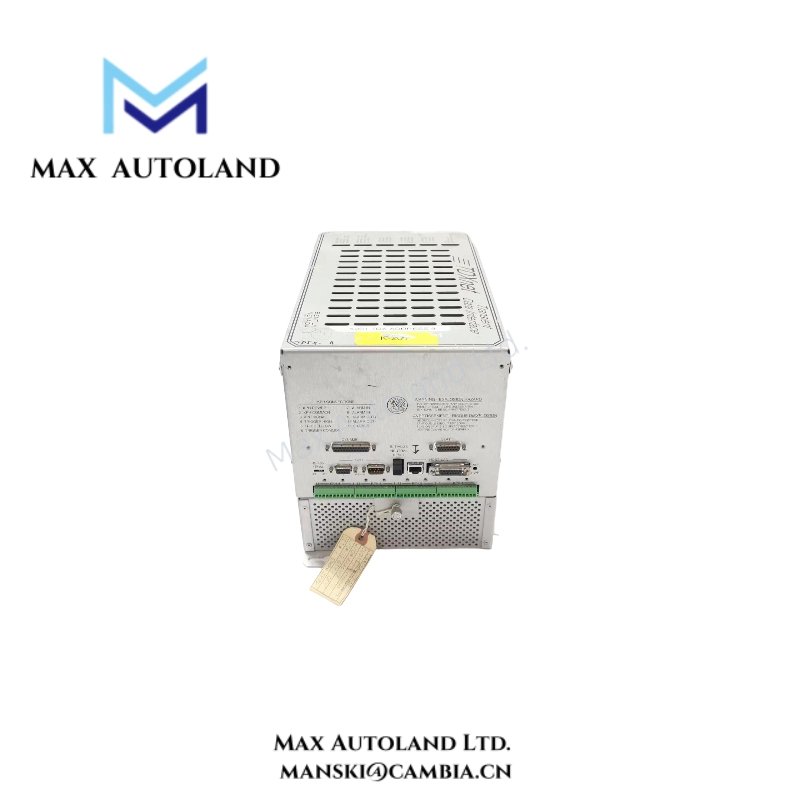

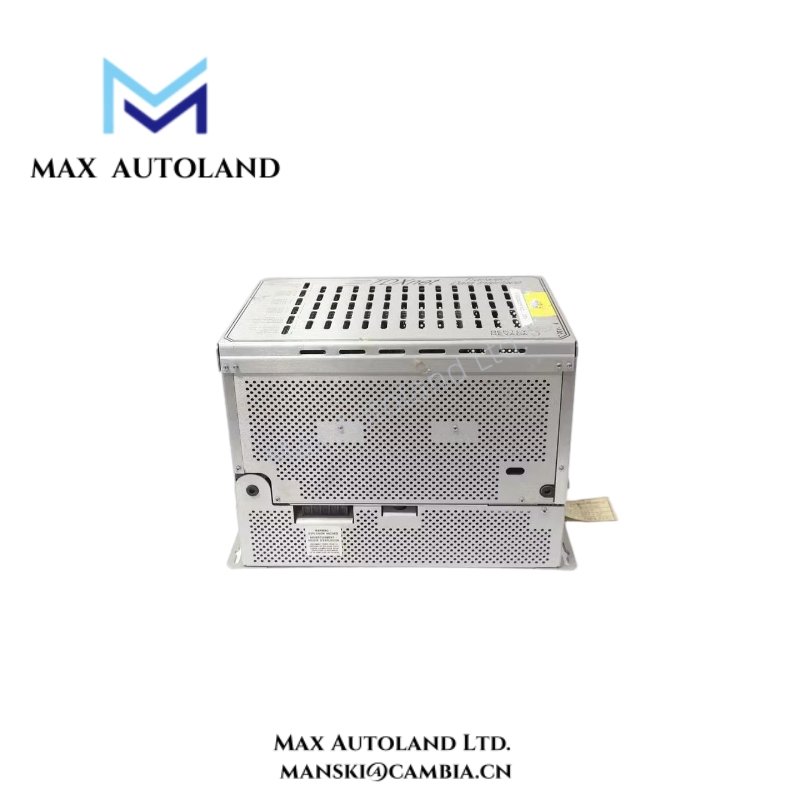

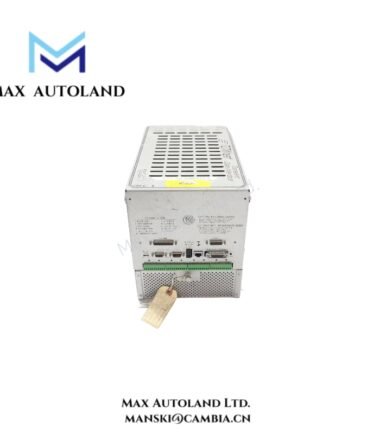

| Module Type | TDXnet Communication Processor |
| Primary Function | High-speed data communication for Bently Nevada monitoring racks |
| Supported Systems | Compatible with TDXnet-based architectures |
| Network Interface | Dual high-speed digital communication channels |
| Processor Type | Embedded communication processor |
| Power Requirements | +110/+220 VAC, rack-supplied power |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Diagnostics | Internal health monitoring and communication-integrity checks |
| Mounting | Installs into Bently Nevada system rack slots |
| Indicators | Status LEDs for power, health, and communications |
| Data Throughput | Optimized for real-time vibration and condition-monitoring data |
| Electrical Isolation | Isolation between network and rack electronics |
| Application Environment | Industrial rotating-equipment facilities and harsh process areas |
| Number of Sampler Cards | Six Sampler Cards (12 dynamic channels) |
| Cable Options | 0 2 2201 Cables |
| Approvals | No Approvals |
| Sampler Card Position – Slots 1 & 2 | Sampler card installed in both Slots 1 & 2 |
| Sampler Card Position – Slots 3 & 4 | Sampler card installed in both Slots 3 & 4 |
| Sampler Card Position – Slots 5 & 6 | Sampler card installed in both Slots 5 & 6 |
FAQ
A1: It manages high-speed data communication between Bently Nevada monitoring racks and supervisory systems.
Q2: Does it support large multi-rack systems?
A2: Yes, it scales effectively across distributed rack networks in large industrial plants.
Q3: Does the module include built-in diagnostics?
A3: Yes, it provides internal health monitoring and communication-integrity reporting.
Q4: What industries commonly use this processor?
A4: Power generation, petrochemical plants, refineries, pipelines, and heavy industrial machinery operations.
Q5: Is this module compatible with older Bently Nevada platforms?
A5: Yes, it supports TDXnet-based platforms used in both legacy and modern monitoring systems.
