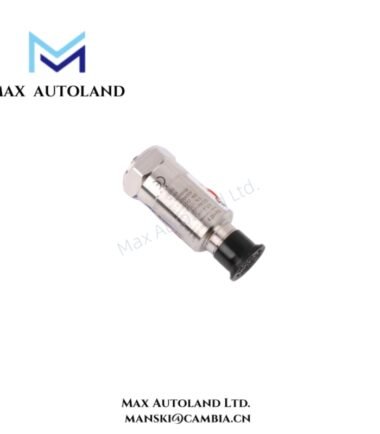

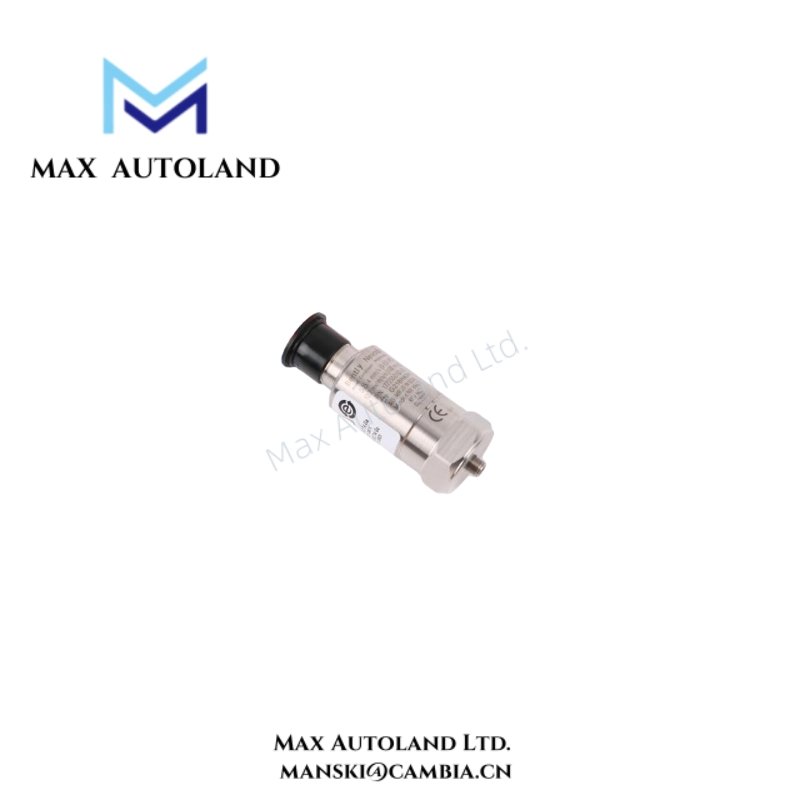

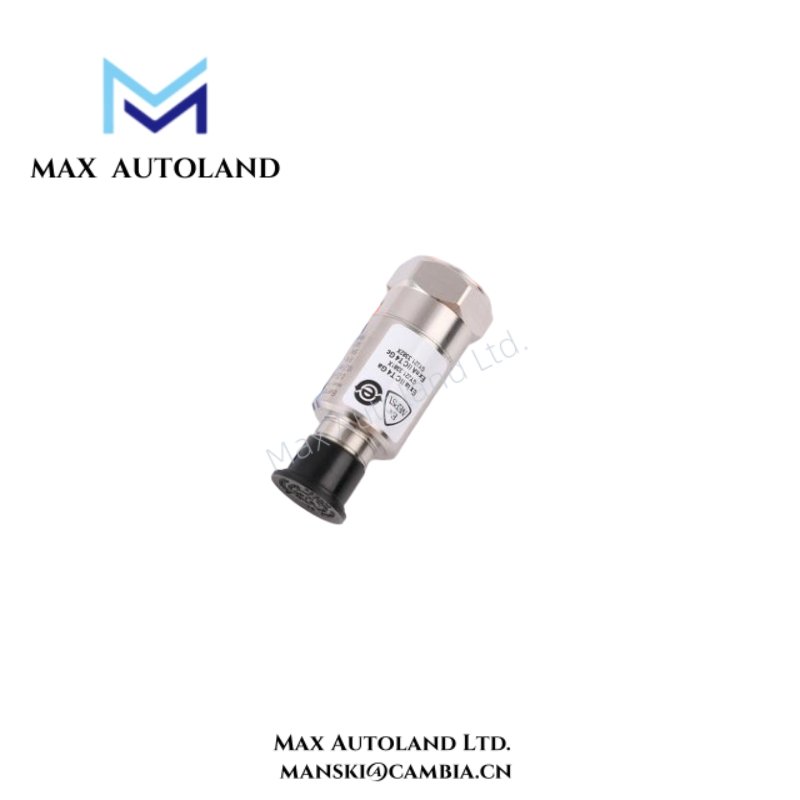

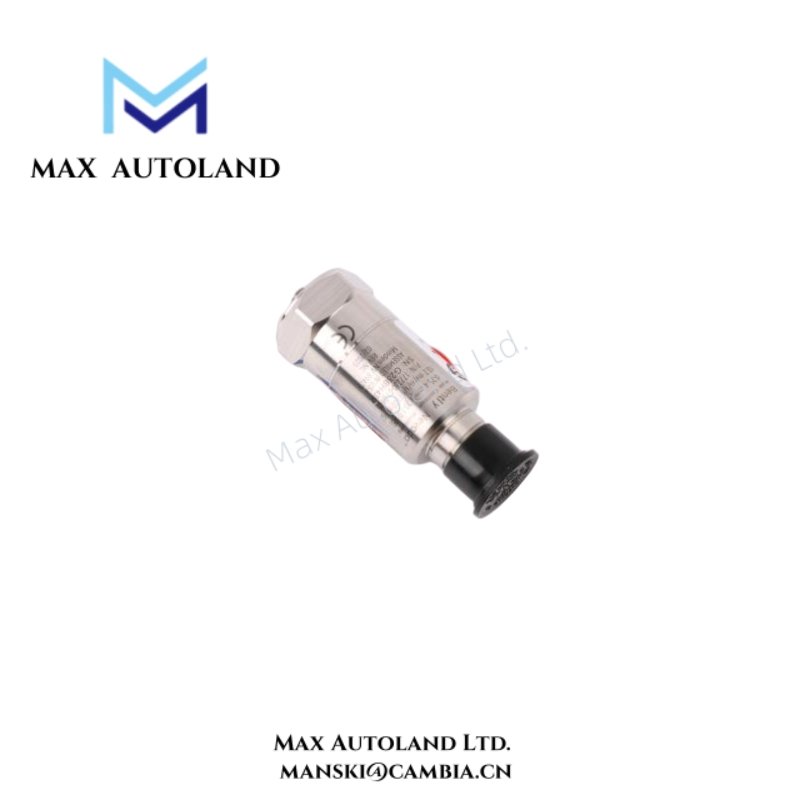

Overview
Specification
| Parameter | Specification |
|---|---|
| Model | 177230-01-01-05 |
| Probe Type | Seismic Transmitter |
| Excitation Voltage | 12–30 Vdc (current limited to 40 mA) |
| Settling Time | <15 seconds within 2% of final value |
| Sensing Element Type | Ceramic / Shear |
| Mounted Resonant Frequency | >12 kHz |
| Transverse Sensitivity | <5% |
| Connector Pin A | 4–20 mA Positive Loop |
| Connector Pin B | 4–20 mA Loop Return |
| Connector Pin C | Dynamic Acceleration Signal (unbuffered, referenced to Pin B) |
| Velocity Output Signal | 4–20 mA Current Loop (Pin A to Pin B) |
| Velocity Full Scale Range 00 | 0–12.7 mm/s ±10% |
| Velocity Full Scale Range 01 | 0–25.4 mm/s ±10% |
| Velocity Full Scale Range 02 | 0–50.8 mm/s ±10% |
| Measurement Range | 0–25.4 mm/s (0–1.0 in/s) |
| Velocity Frequency Response 01 | 10 Hz–1 kHz ±10% (RMS) |
| Velocity Frequency Response 02 | 3 Hz–1 kHz ±10% (Peak) |
| Acceleration Output Signal | Unbuffered voltage from Pin C to Pin B |
| Acceleration Sensitivity | 10.2 mV/m/s² (100 mV/g) ±20% |
| Acceleration Full Scale Range | 147 m/s² (15 g) peak |
| Acceleration Frequency Response | 2.5 Hz–10 kHz ±10% |
| Acceleration Linearity | ±1% of full scale |
| Output Bias | 2.5 |
| Approvals | Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
FAQ
A: Yes, it connects directly to PLCs, DCS, or SCADA systems without field configuration.Q: What outputs are available for vibration monitoring?
A: The device provides a 4–20 mA velocity loop and unbuffered acceleration voltage output.Q: Does it require additional calibration or configuration?
A: No, the 177230 operates with a simple interface and requires minimal setup.
Q: What is the operating temperature range for this transmitter?
A: It functions reliably in industrial environments from 0°C to +45°C (+32°F to +113°F).
Q: Which certifications or approvals does the 177230 have?
A: The transmitter carries multiple approvals, including CSA/NRTL/C and ATEX/IECEx, ensuring compliance with global safety standards.
