Overview

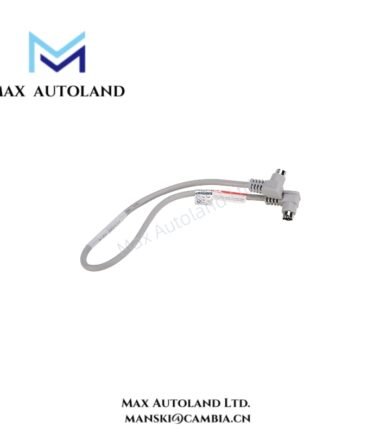

This cable works seamlessly with a wide range of MicroLogix 1000, 1100, 1200, and 1500 series controllers, making it a versatile choice for various automation applications. In addition, it simplifies connectivity setup, allowing engineers to reduce installation time while maintaining robust performance. System integrators also benefit from its reliable design, which streamlines device communication during configuration and maintenance.
Furthermore, the 1761-CBL-AM00 enhances operational efficiency by delivering consistent data transfer rates and preventing communication errors. Its compact design and flexible construction allow technicians to route it easily within control panels, ensuring a professional and organized setup. Therefore, OEMs and industrial facilities trust this cable for reliable and uninterrupted controller communication.
Specification
| Parameter | Specification |
|---|---|
| Part Number | 1761-CBL-AM00 |
| Product Type | MicroLogix Communication Cable |
| Cable Type | RS-232 Serial Communication |
| Connector (PC Side) | DB9 Male |
| Connector (PLC Side) | 6-pin Mini DIN |
| Cable Length | 1.8 meters (6 feet); flexible routing |
| Conductor Material | High-quality copper for optimal signal transmission |
| Conductor Gauge | 28 AWG |
| Shielding | Twisted pair with foil and braid shield for EMI protection |
| Insulation Material | PVC jacket, flame-retardant and industrial-grade |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Maximum Voltage | 30V DC (per RS-232 standard) |
| Communication Standard | RS-232, supports standard baud rates up to 115.2 kbps |
| Supported Controllers | MicroLogix 1000, 1100, 1200, 1500 Series |
| Certifications / Compliance | CE, UL Recognized Component |
| Durability / Flexibility | Industrial-grade insulation ensures resistance to abrasion, bending, and wear |
| Typical Applications | PLC programming, monitoring, troubleshooting, HMI/SCADA integration |
| Recommended Usage | Indoor use in industrial panels or controlled environments |
FAQ
A1: It is compatible with MicroLogix 1000, 1100, 1200, and 1500 series controllers.
Q2: Can I use this cable for communication over long distances?
A2: It is designed for standard RS-232 communication distances, typically up to 15 meters with proper serial extensions.
Q3: Is this cable shielded against interference?
A3: Yes, the twisted pair design includes EMI shielding to maintain signal integrity.
Q4: Can it be used for online monitoring of PLCs?
A4: Absolutely. It supports live data monitoring and troubleshooting operations.
