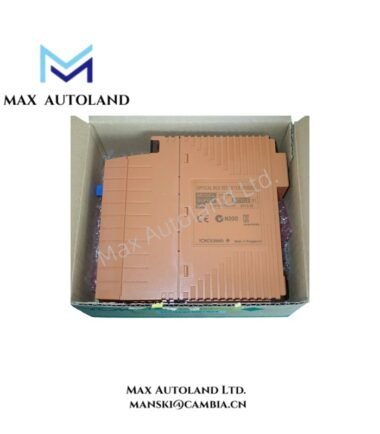

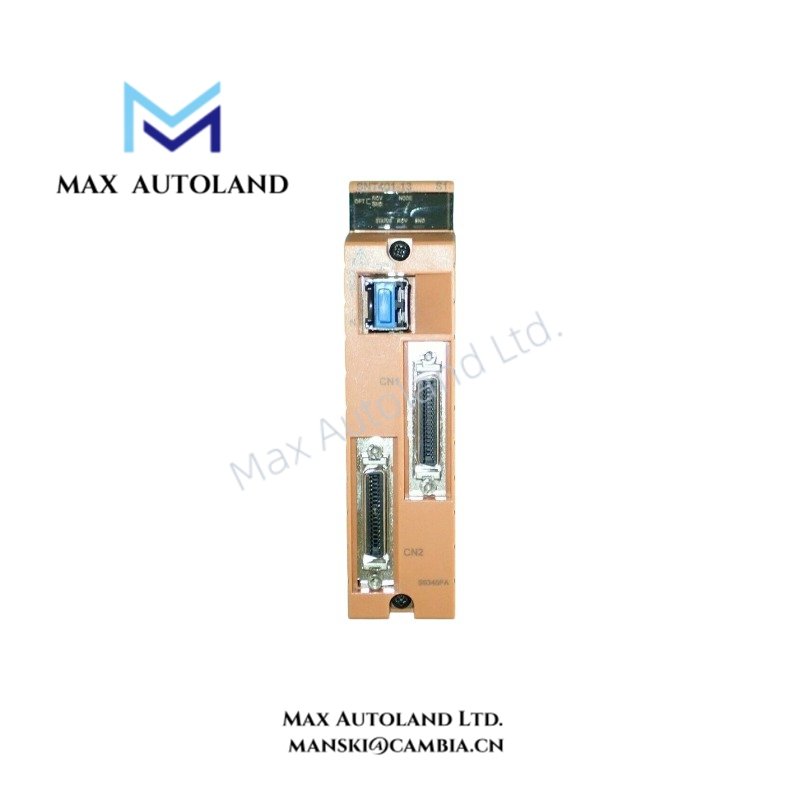

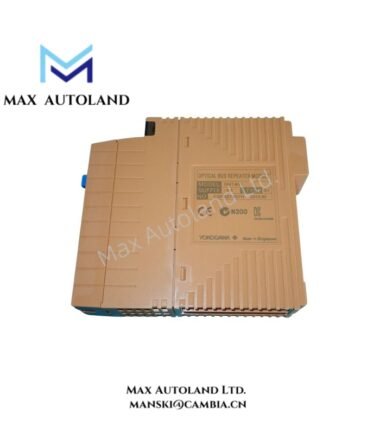

Yokogawa SNT401-13 S1 Optical ESB Bus Repeater Master Module

Hardware Specifications

Optical Communication and Channel Isolation

Designed explicitly for high-speed distributed control networks, this module executes optical signal conversion to bridge node-to-node communication spans without electromagnetic interference degradation. Furthermore, channel-to-channel optical isolation prevents transient voltage spikes from propagating across the Extended Serial Backplane (ESB) topology. The integrated CU1N connector unit facilitates secure physical termination, whereas the ruggedized conformal coating complies strictly with ISA Standard G3 environmental protection limits, safeguarding internal circuitry against corrosive airborne particulates within harsh industrial installations.

Frequently Asked Questions

Q: What is the primary function of the CU1N connector unit when paired with this module?

A: The CU1N unit provides the physical interface and mechanical latching required to terminate the optical ESB bus cables securely onto the repeater master module backplane.

Q: Does this module support hot-swap capabilities during live system operation?

A: Hot-insertion and removal procedures require strict adherence to system-level power-down directives for the specific node rack, unless explicitly designated by the control system architecture manual to prevent backplane bus arbitration faults.

Q: How does the G3 rating affect environmental deployment?

A: The ISA Standard G3 classification ensures that the module circuit boards resist severe corrosive gas environments, allowing reliable deployment in chemical processing plants without premature component degradation.

Field Installation Guidelines

Ensure that the mounting chassis is securely grounded to the control cabinet earth bar before sliding the module into the designated slot. When routing optical fibers to the CU1N connector unit, maintain a bend radius strictly above the manufacturer specification to prevent signal attenuation or fiber micro-fractures. Fasten all retention screws uniformly to establish proper backplane pin engagement and to withstand continuous plant vibration.
