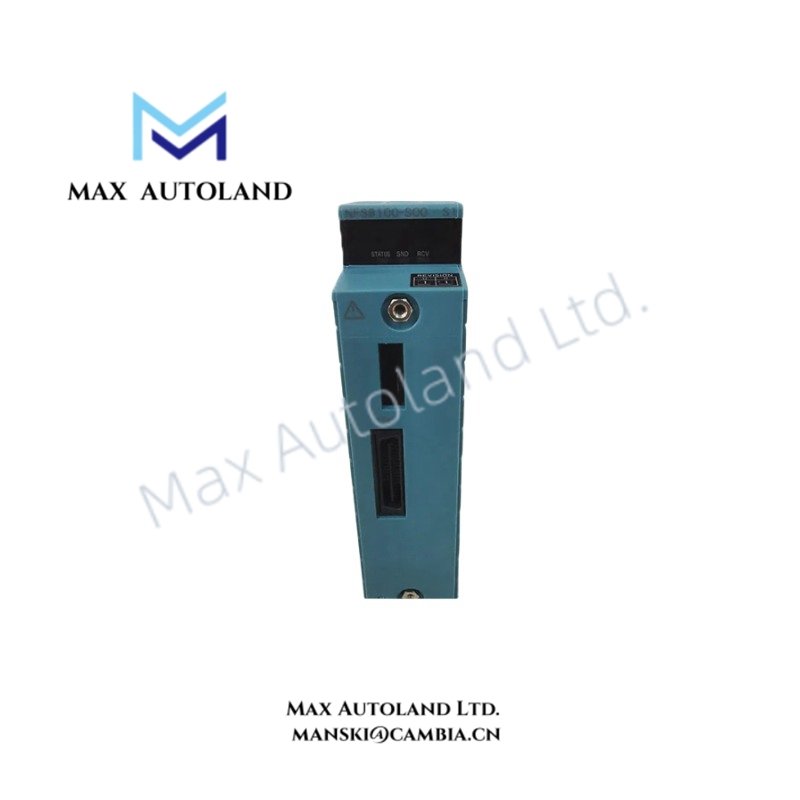

Yokogawa NFAI141-S50 Analog Input Module

Hardware Specifications

Yokogawa Process Signal Interface Characteristics

The NFAI141-S50 processes standard 4-20 mA transmitter signals through 16 non-isolated differential input channels. Therefore, each channel accepts current loop measurements from field transmitters and converts them into digital process values for the control system.

The module supports 2-wire and 4-wire transmitter configurations through channel setting pins. Additionally, the transmitter power supply circuit provides 22.8 to 26.4 VDC output with a current limitation of 27 mA.

For Yokogawa DCS instrumentation applications, the module maintains analog measurement accuracy at +/-0.1% of full scale and provides a 10 ms data refresh cycle. Moreover, the design includes input overcurrent protection to limit abnormal field signal conditions.

Frequently Asked Questions

Q: Does the Yokogawa NFAI141-S50 provide channel isolation?
A: No. The NFAI141-S50 uses 16 non-isolated differential input channels. Field wiring should follow the grounding and shielding requirements of the connected instrumentation system.

Q: What transmitter types can connect to the NFAI141-S50?
A: The module supports 2-wire and 4-wire transmitters with 4-20 mA output signals. The transmitter configuration is selected individually for each channel through the setting pin.

Q: Does the NFAI141-S50 support HART communication?
A: Yes. HART communication is available with the corresponding HART-enabled suffix configuration.

Field Installation Guidelines

Install the NFAI141-S50 in the designated Yokogawa I/O subsystem location and verify backplane compatibility before connection.

Use shielded instrumentation cables for 4-20 mA field wiring. Connect cable shields according to the site grounding standard to reduce electrical noise coupling.

Separate analog signal cables from high-current power cables, motor feeders, and switching circuits. Maintain proper terminal tightening conditions and verify polarity before applying transmitter power.

Before commissioning, confirm the transmitter wiring mode, channel configuration, input range, and current loop operation. Check that the measured loop current corresponds correctly with the configured process value.
