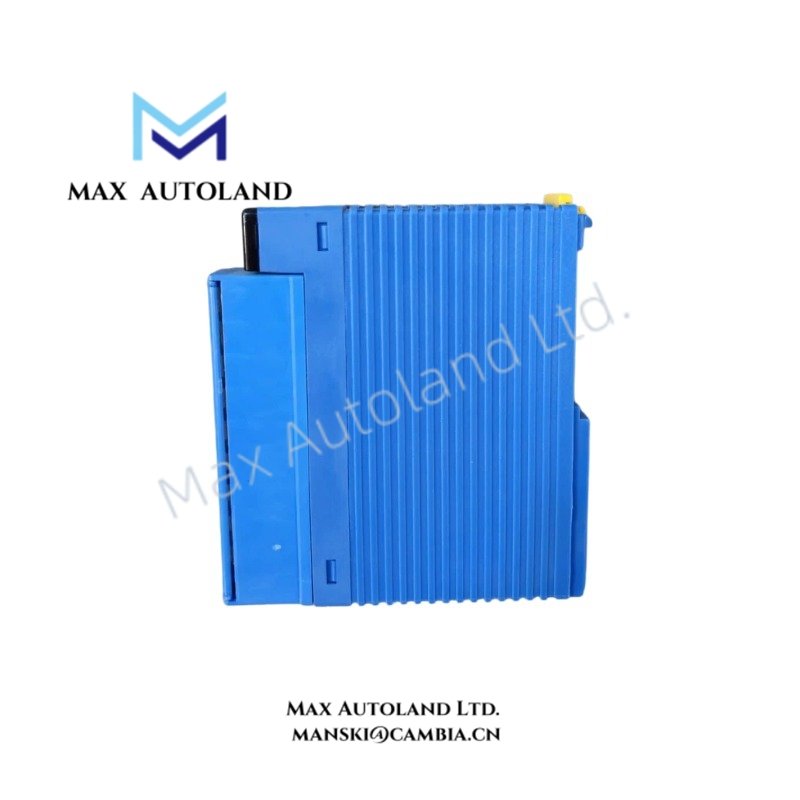

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F3YD14-0N |
| Brand | Yokogawa Electric Corporation |
| Origin | Japan |
| Series | FA-M3 Series |
| Module Type | Digital Transistor Output Module |
| Output Configuration | 14 points, sink type (NPN transistor output) |
| Rated Load Voltage | 12 to 24 VDC |
| Operating Voltage Range | 10.2 to 26.4 VDC |
| Maximum Load Current | 0.5 A per point |
| Response Time | OFF to ON: <= 1 ms; ON to OFF: <= 1 ms |
| ON-State Voltage Drop | <= 0.5 VDC |
| OFF-State Leakage Current | <= 0.1 mA |
| Isolation Method | Photocoupler isolation |
| Surge Protection | Built-in active clamp / surge absorber |

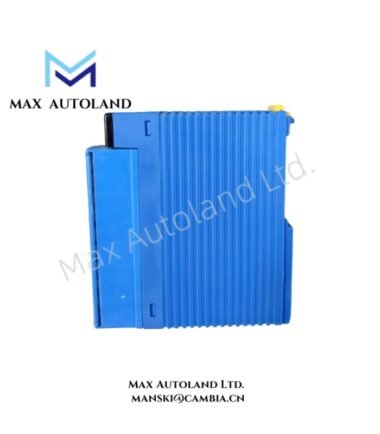

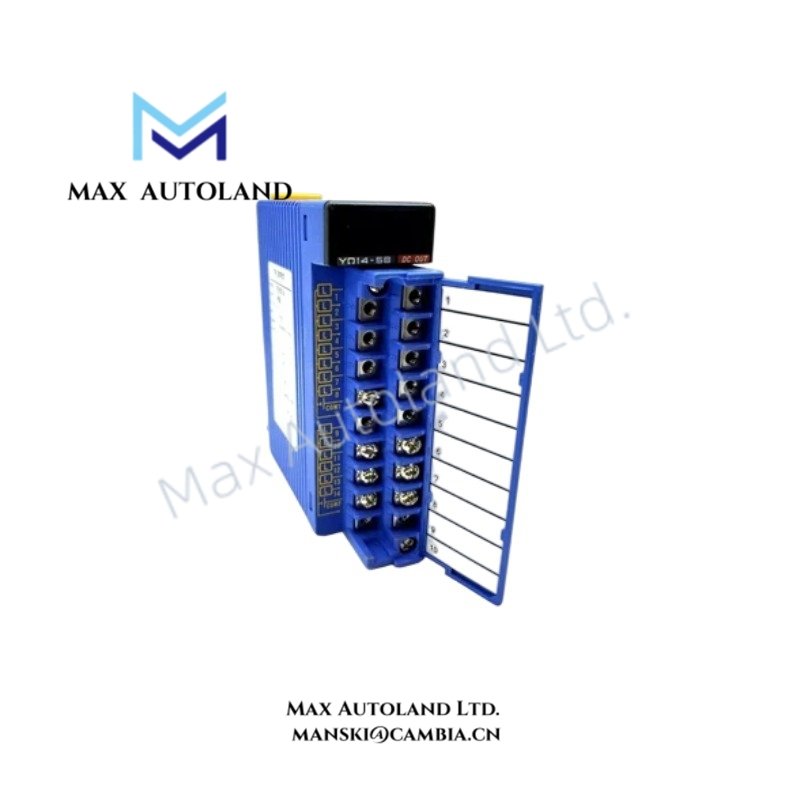

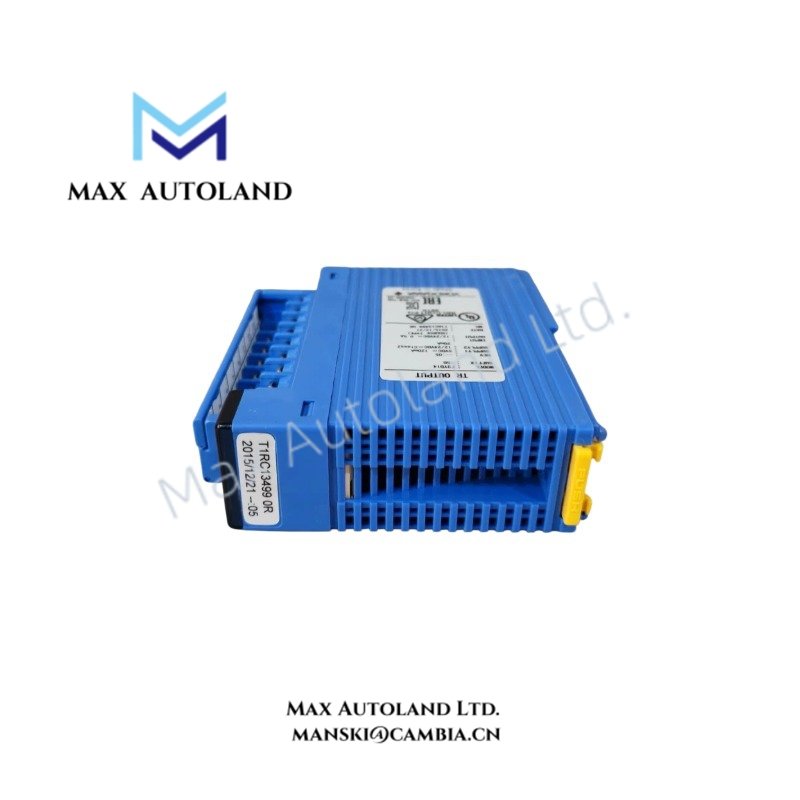

| External Connection | 14-point removable terminal block, M3.5 screw terminals |
| Internal Power Consumption | 100 mA from 5 VDC backplane supply |
| Weight | Approx. 300 g |
| Power Consumption | 100 mA at 5 VDC backplane supply |
Process Control I/O Isolation and Signal Handling
The Yokogawa F3YD14-0N operates as a discrete output interface between the FA-M3 controller backplane and external DC circuits. The module uses photocoupler isolation to separate internal control logic from field wiring circuits. Therefore, it reduces electrical interference transfer between the PLC system and connected loads.
The FA-M3 platform supports structured I/O expansion, and this output module provides direct transistor switching without requiring additional relay conversion. Furthermore, the output circuits include surge absorption components to protect switching elements during inductive load operation.
Frequently Asked Questions
Q: Does the F3YD14-0N provide relay-type output contacts?
A: No. The F3YD14-0N uses transistor sink outputs and requires compatible DC loads connected to the external field circuit.
Q: How does the module isolate the PLC CPU from field-side signals?
A: The module uses photocoupler isolation between the FA-M3 internal bus circuitry and external output terminals.
Q: Can the output channels directly drive AC loads?
A: No. The F3YD14-0N is designed for DC transistor switching applications within the specified voltage range.
Field Installation Guidelines
Install the F3YD14-0N on a compatible Yokogawa FA-M3 base module and confirm the backplane connection before applying system power.
Connect external DC loads according to the sink-type NPN output wiring configuration. Verify load polarity because transistor output modules require correct current flow direction.
Separate output wiring from high-voltage power cables and strong electromagnetic interference sources. Use proper cabinet grounding methods and maintain suitable shielding practices for signal cables when required.
Before commissioning, confirm each output channel status through the FA-M3 diagnostic functions. Check connected field devices for correct response after controller configuration and I/O assignment.
