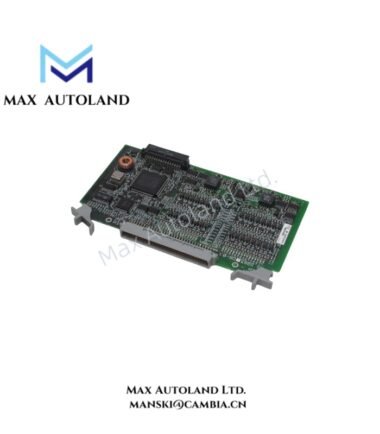

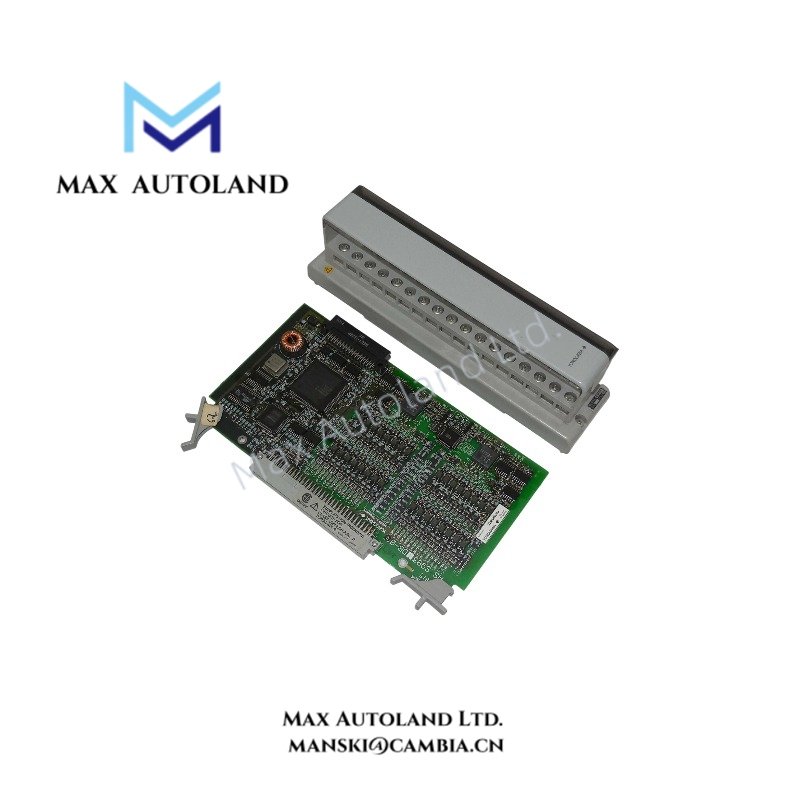

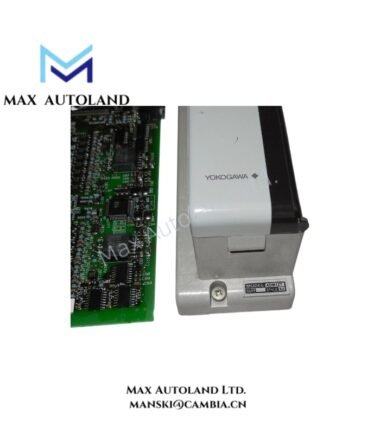

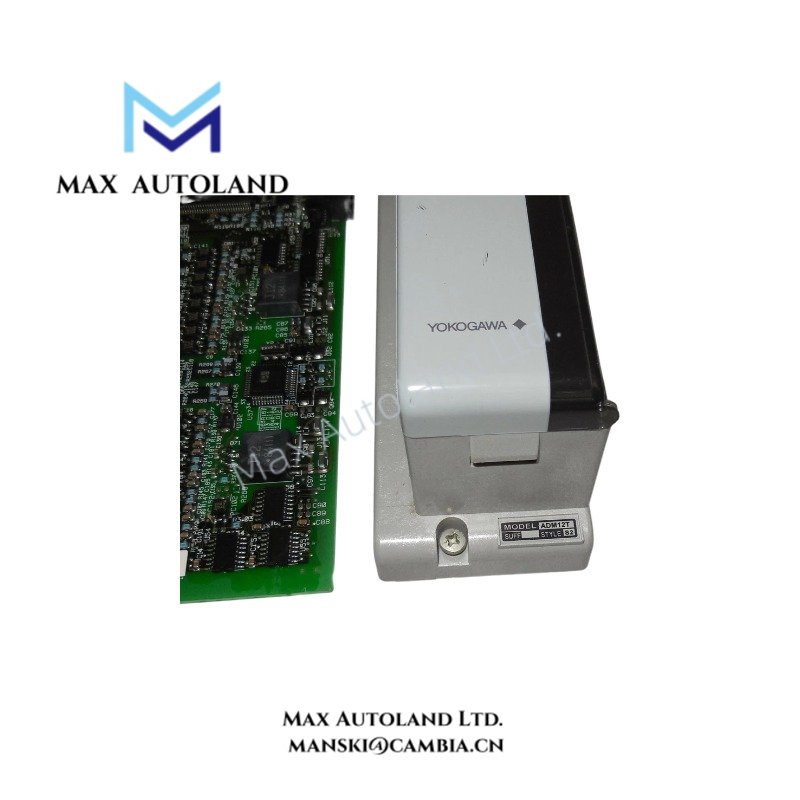

Yokogawa ADM12T Contact Input Module

Hardware Specifications

Yokogawa Discrete Signal Processing

The ADM12T accepts discrete field states through either contact or voltage input conditions. For contact inputs, the module distinguishes OFF and ON states using the specified resistance thresholds. For voltage inputs, it recognizes the defined DC voltage ranges and ON-state resistance condition.

The module also supports pulse acquisition. A pulse width of at least 40 ms and a maximum frequency of 10 Hz define the stated pulse-processing range. Therefore, field devices used for edge counting must produce signals within these limits.

The input interface uses common minus side insulation. Consequently, installation should maintain the specified field wiring arrangement and avoid unintended conductive paths between signal conductors and other circuit references.

Frequently Asked Questions

Q: How many discrete input channels does the ADM12T provide?
A: The ADM12T provides 32 input channels.

Q: What pulse conditions does the ADM12T support?
A: The specified minimum pulse width is 40 ms, while the maximum pulse frequency is 10 Hz.

Q: How does the module connect to field wiring?
A: The module uses terminal connections with M4 screws and installs in a dedicated I/O module nest.

Field Installation Guidelines

• Install the ADM12T in its designated I/O module nest according to the applicable Yokogawa hardware arrangement.
• Secure field conductors at the M4 screw terminals and verify terminal identification before energizing the circuit.
• Keep discrete signal wiring separated from high-voltage power conductors and high-current switching circuits where practical.
• Maintain consistent signal polarity and the specified common minus-side insulation arrangement.
• Verify contact resistance against the stated ON and OFF thresholds before commissioning.
• For voltage inputs, confirm that the field signal remains within the specified ON and OFF voltage conditions.
• For pulse or edge-counting applications, verify that the field device produces a pulse width of at least 40 ms and does not exceed 10 Hz.
• Check terminal tightness and wiring continuity after installation and before system startup.
• Do not assign operating temperature, physical dimensions, weight, or other environmental limits unless the applicable Yokogawa hardware documentation specifies them.
