Overview

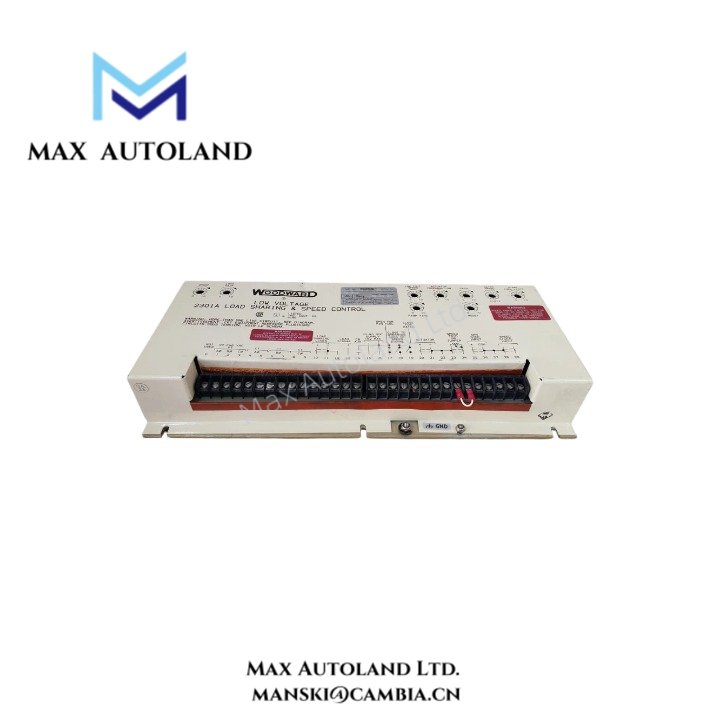

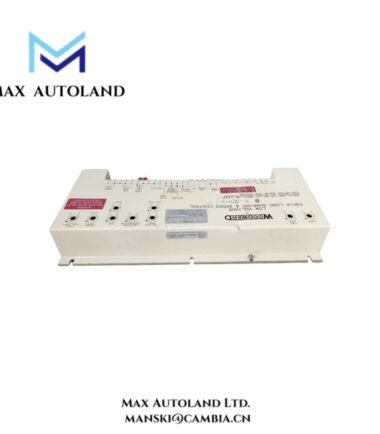

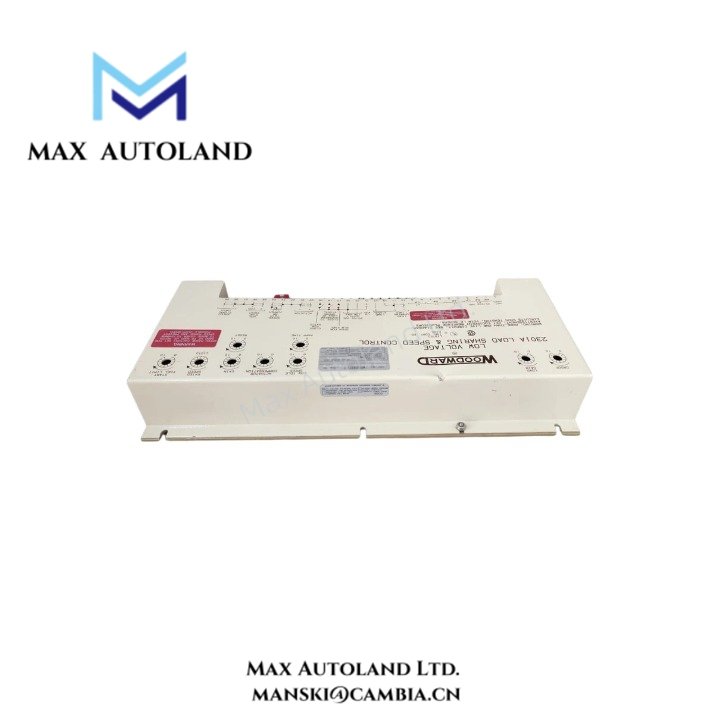

The Woodward 9905-068 provides advanced digital load sharing and speed control for multiple generator and engine applications. It ensures synchronized power distribution while maintaining precise speed regulation under varying load conditions. Designed for industrial and power generation systems, this unit integrates seamlessly with standard governor and actuator interfaces.
Its robust construction resists vibration and electrical interference, ensuring reliable operation in harsh environments. The 9905-068 features intuitive connectors for fast installation and secure signal connections, supporting both analog and digital inputs.
Key Features
- Precise digital load sharing and speed control for multiple engines or generators
- Fast response maintains system stability during load fluctuations
- Robust housing tolerates vibration, heat, and electrical noise
- Compatible with analog and digital control signals for flexible integration
- Compact design simplifies installation in engine rooms or control panels
Specification
| Category | Parameter | Specification |
|---|---|---|
| General | Manufacturer | Woodward |
| Model | 9905-068 | |
| Product Type | Digital Load Sharing and Speed Control | |
| Application | Engine and generator control systems | |
| Electrical | Supply Voltage | 24 V DC nominal |
| Input Signals | ±10 V DC analog or digital pulse input | |
| Output Signals | ±10 V DC analog and digital speed/load commands | |
| Interface | 15-pin industrial connector for I/O and power | |
| Mechanical | Mounting | Panel or bracket mount |
| Dimensions (W × H × D) | 140 × 100 × 60 mm | |
| Weight | 1.5 kg | |
| Housing | Vibration- and temperature-resistant enclosure | |
| Performance | Load Sharing Accuracy | ±1% between generators |
| Speed Regulation | ±0.25% of nominal speed | |
| Response Time | <50 ms to load step change | |
| Environmental | Operating Temperature | -20–70 °C |
| Storage Temperature | -40–85 °C | |
| Vibration Resistance | 2 g (10–500 Hz) | |
| Compliance | Certifications | CE, UL, ISO9001 |
FAQ
Q1: Is the Woodward 9905-068 new and original?
A1: Yes, the 9905-068 is 100% original and sourced from certified Woodward distributors.
Q2: How fast is the shipping?
A2: Orders ship within 3 days to 2 weeks depending on size, using DHL or other common carriers.
Q3: Can it handle multiple generator load sharing?
A3: Yes, the 9905-068 maintains precise load distribution across multiple generators.
Q4: Does it resist harsh environmental conditions?
A4: Absolutely, the 9905-068 tolerates vibration, temperature extremes, and electrical noise.
