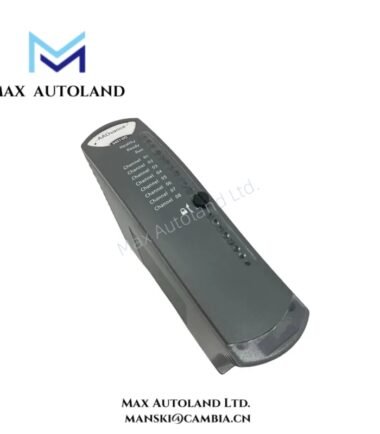

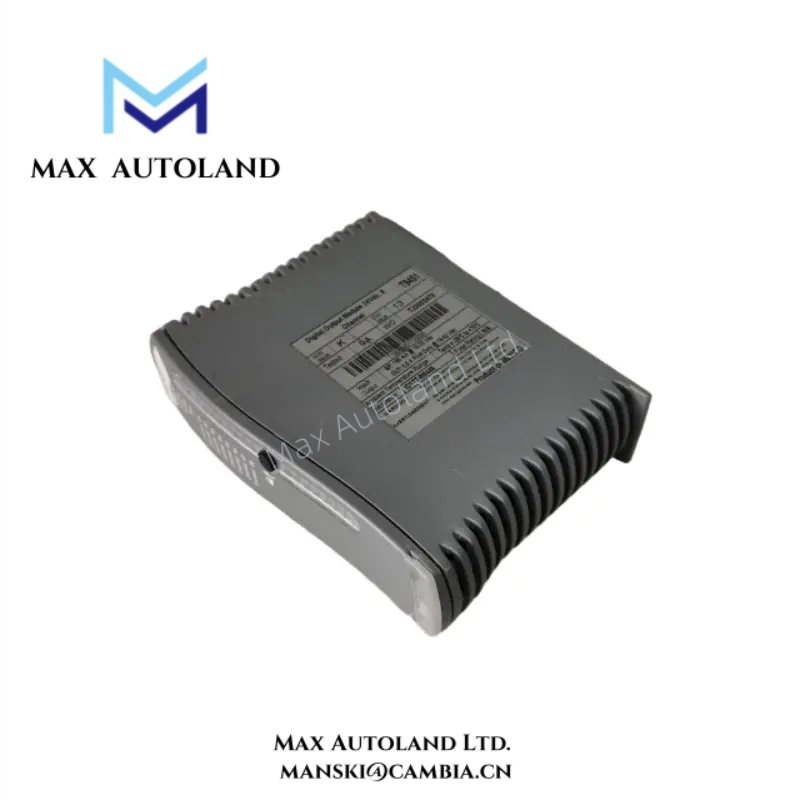

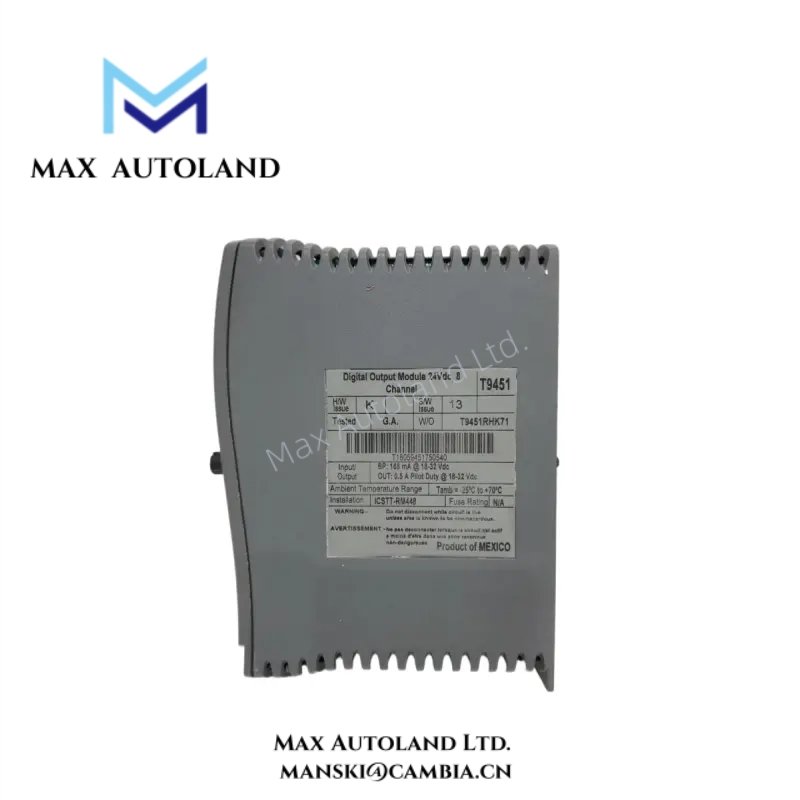

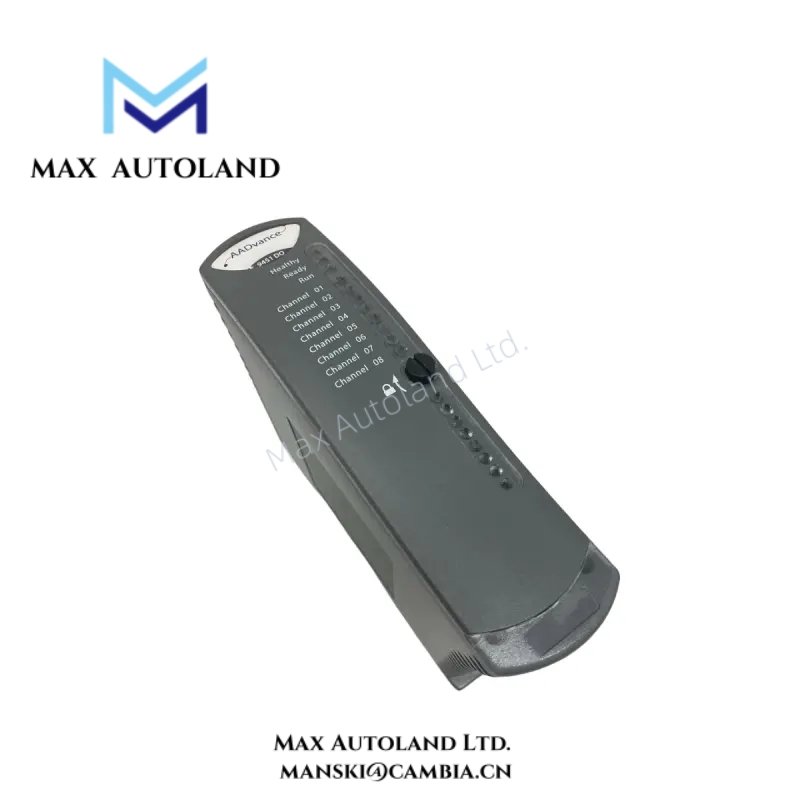

Overview
Specification
| Parameter | Specification |
|---|---|
| Part Number | T9451 |
| Module Type | Digital Output Module |
| Controller Platform | ICS Triplex AADvance |
| Output Channels | 8 independent channels |
| Output Type | Commoned digital outputs |
| Nominal Supply Voltage | 24 V DC |
| Operating Voltage Range | 18–32 V DC |
| Maximum Output Current | 1 A per channel continuous |
| Maximum Switching Frequency | 50 Hz (typical) |
| Load Types Supported | Resistive, inductive, solenoids, small relays |
| Output Protection | Short-circuit detection, open-load detection, reverse current protection |
| Diagnostics | Real-time channel status monitoring, fault reporting |
| Isolation | Electrically isolated outputs to improve system integrity |
| Mounting | Backplane slot installation |
| Connector Type | Standard ICS Triplex backplane connector |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Shock & Vibration Resistance | IEC 60068-2 compliant |
| Dimensions (approx.) | 163 mm × 38 mm × 58 mm |
| Weight (approx.) | 0.35 kg |
| Certifications | CE, UL, ICS Triplex safety compliance |
| Typical Application | Field device control in safety-critical process and automation systems |
| Reliability & MTBF | High MTBF for continuous industrial operation |
| Maintenance | Minimal; periodic inspection of outputs recommended |
FAQ
A1: Yes, but external suppression devices may be required depending on load characteristics.Q2: Is the module hot-swappable?
A2: Yes, it supports replacement without powering down the controller, minimizing downtime.
Q3: How does diagnostics improve system reliability?
A3: The module reports channel status and failures in real-time, allowing engineers to take corrective actions quickly.
Q4: Which controllers are compatible with the T9451?
A4: It is designed for ICS Triplex AADvance controllers and integrates seamlessly into fault-tolerant architectures.
Q5: What is the typical operating temperature range?
A5: The T9451 operates reliably from 0°C to 60°C under standard industrial conditions.
