Overview
Specification
| Parameter | Specification |
|---|---|

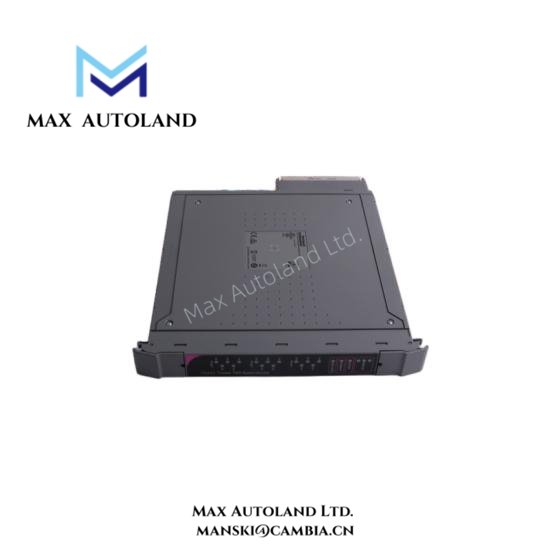

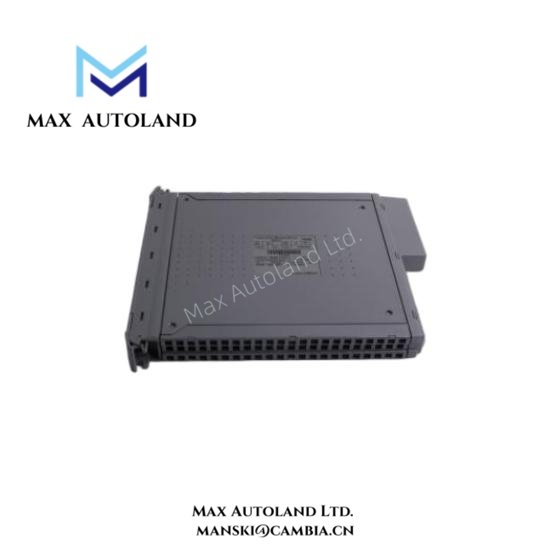

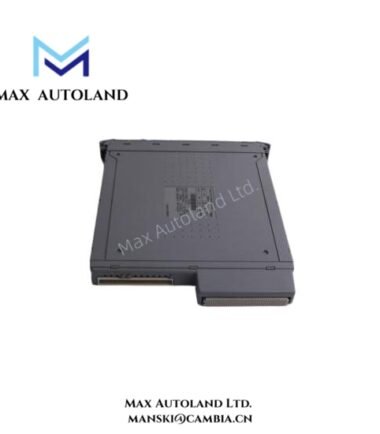

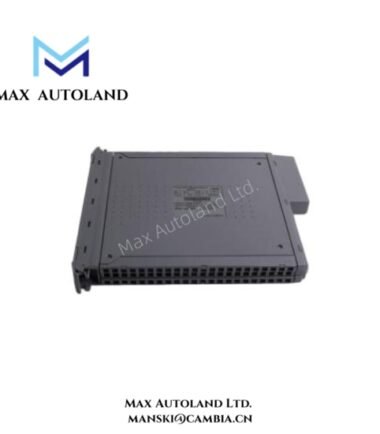

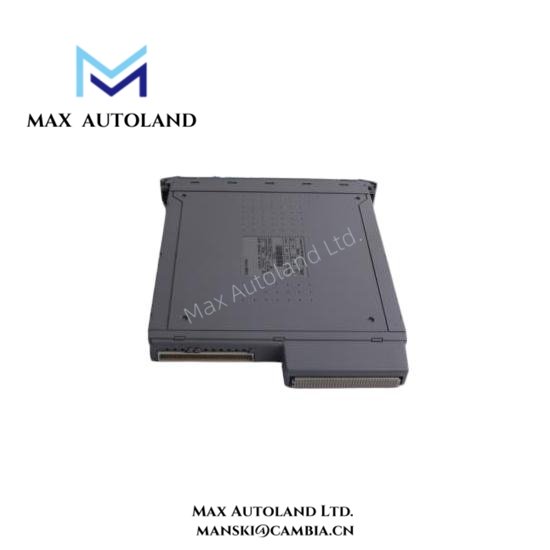

| Product Type | TMR Speed Monitor Module |
| Model | T8442 |
| Manufacturer | Rockwell Automation |
| Product Family | ICS Triplex Trusted |
| Architecture | Triple Modular Redundant (TMR) |
| Primary Function | Speed and overspeed monitoring |
| Input Signal Type | Speed sensors for rotating equipment |
| Signal Processing | Independent TMR channel processing |
| Safety Integrity | Designed for high-integrity safety systems |
| System Integration | Trusted controller and I/O platforms |
| Fault Detection | Continuous channel comparison and diagnostics |
| EMC Compliance | Industrial safety system standards |
| Operating Environment | Harsh industrial and process environments |
| Mounting | Trusted system chassis |
| Cooling Method | Passive cooling through chassis airflow |
| Hot-Swap Capability | Supported in compatible Trusted systems |
| Maintenance Requirement | No routine calibration required |
| Serviceability | Field-replaceable module |
FAQ
A1: The T8442 monitors rotational speed and overspeed conditions to trigger safe shutdown actions in safety systems.Q2: Which control platforms support the T8442 module?
A2: The module operates within Rockwell Automation ICS Triplex Trusted TMR systems.
Q3: Why does the T8442 use TMR architecture?
A3: TMR architecture ensures fault tolerance by eliminating single-point failures through triple independent processing channels.
Q4: Can the T8442 support turbine overspeed protection?
A4: Yes, it is commonly used in turbine and rotating equipment overspeed protection applications.
Q5: Does the T8442 require routine calibration?
A5: No routine calibration is required under normal operating conditions.
Q6: Can engineers replace the T8442 module during maintenance?
A6: Yes, the module supports field replacement in compatible Trusted systems, minimizing downtime.
