Overview
Specification
| Parameter | Specification |
|---|---|

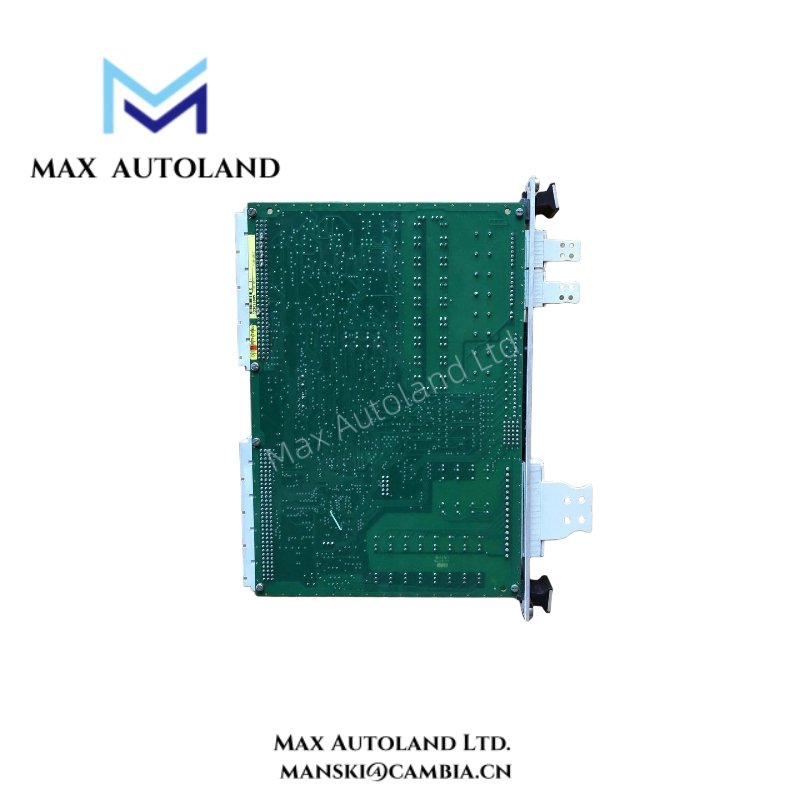

| Model | PIB101C / PIB-101C |
| Type | Power Interface Board |
| Input Voltage | 24–48 V DC |
| Output Signal | Standard industrial interface signals |
| Maximum Output Current | 500 mA |
| Isolation Voltage | 1500 V DC |
| Response Time | ≤ 10 ms |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Vibration Resistance | 5–25 Hz, 0.5 mm amplitude |
| Shock Resistance | 15 g, 11 ms |
| Mounting | DIN rail compatible |
| Dimensions | 125 mm × 85 mm × 35 mm |
| Weight | 0.48 kg |
| Material | Industrial-grade PCB, metal enclosure optional |
| Compliance | CE certified, industrial-grade reliability |
| MTBF (Mean Time Between Failure) | > 100,000 hours |
FAQ
A: Yes, it functions reliably between -20°C and +70°C, meeting industrial standards.Q2: Is the PIB101C compatible with existing ALSTOM systems?
A: Absolutely, it integrates seamlessly with most ALSTOM automation frameworks.Q3: How long is the expected service life?
A: With proper maintenance, the PIB101C typically operates reliably for over ten years.Q4: How is the module installed?
A: It mounts on standard DIN rails, allowing fast and straightforward installation.
