Overview

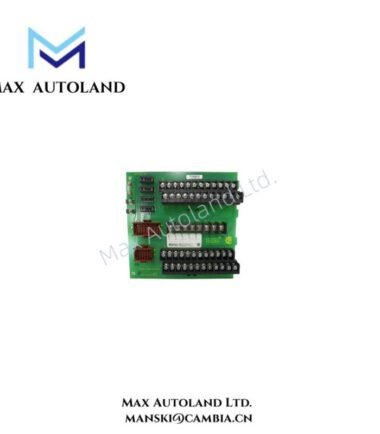

The ABB NTHS03 Termination Unit serves as an essential interface between hydraulic servo modules (like IMHSS03, SPHSS03/04/05/13) and field devices such as valves, I/H converters, or LVDTs. It routes signals, provides power, and supports protection features to ensure consistent operation under demanding control scenarios.
Engineers select the NTHS03 because it features reliable fuse protection, configurable dip-shunts and jumpers, and compatibility with both internal Infi-90 backplane power and external sources. Its compact form factors ease mounting on the NFTP01 Field Termination Panel within standard ABB Harmony racks.
Specification
| Parameter | Value |
|---|---|
| Model Number | NTHS03 |
| Manufacturer | ABB / Bailey Controls |
| Product Category | Hydraulic Servo Termination Unit |
| Compatible Modules | IM/SPHSS03, SPHSS04, SPHSS05, SPHSS13 |
| Power Supply | 24 VDC Faston connector; common return (IO common) |
| Fuse | 3 A, 250 V slo-blo fuse supplied |
| Controls / Configuration | Four dip-shunt sockets; four jumpers for power & signal routing |
| Signal Types Supported | LVDT primaries & secondaries; analog outputs; digital trip / bias contacts |
| Operating Frequency | LVDT primary excitation frequencies from approx. 400 Hz to 15 kHz |
| Analog Output Range | ± output currents up to defined values depending on coil impedance |
| Mounting Method | Mounted on NFTP01 Field Termination Panel |
| Dimensions | Length/Depth: ~25.4 mm; Height: ~195.58 mm; Width: ~195.58 mm |
| Net Weight | ~0.3 kg |
| Environmental Conditions | 0°C to +70°C operating; –40°C to +85°C storage; non-condensing humidity 5-95% |
| Certification / Protection | Surge withstand per IEEE-472; CSA / FM certified for non-hazardous Class I Division 2 use |
FAQ
Q1: Is the NTHS03 unit genuine and new?
A1: Yes, all NTHS03 units we supply are brand new, factory-original.
Q2: Do you have NTHS03 in stock, and how long is delivery?
A2: Stock varies; shipping typically takes 3 days to 2 weeks, depending on order size.
Q3: Which shipping carriers do you use?
A3: We generally ship via DHL, FedEx, or UPS to ensure secure, timely delivery.
Q4: Which hydraulic servo modules does the NTHS03 support?
A4: It supports IMHSS03, SPHSS03, SPHSS04, SPHSS05, and SPHSS13 modules.
Q5: What power protection exists on the NTHS03?
A5: It includes a 3 A, 250 V slow-blow fuse and design features (dip-shunts/jumpers) to safeguard circuits.
Q6: What about return policy if quality issues occur?
A6: We support returns within 30 days for verified quality defects.
Manual/Datasheet PDF
NTHS03 ABB Bailey Hydraulic Servo Termination Unit datasheet
