Overview
Specification
| Specification | Details |
|---|---|

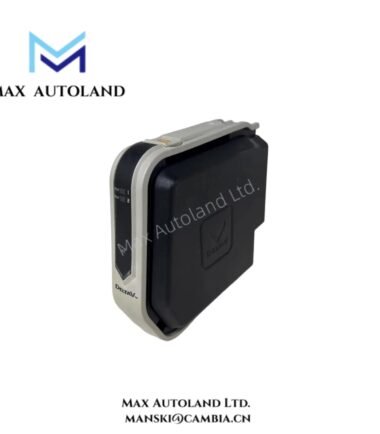

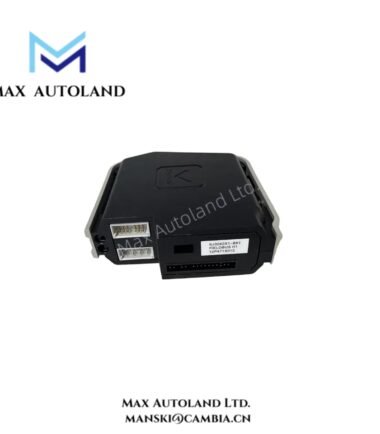

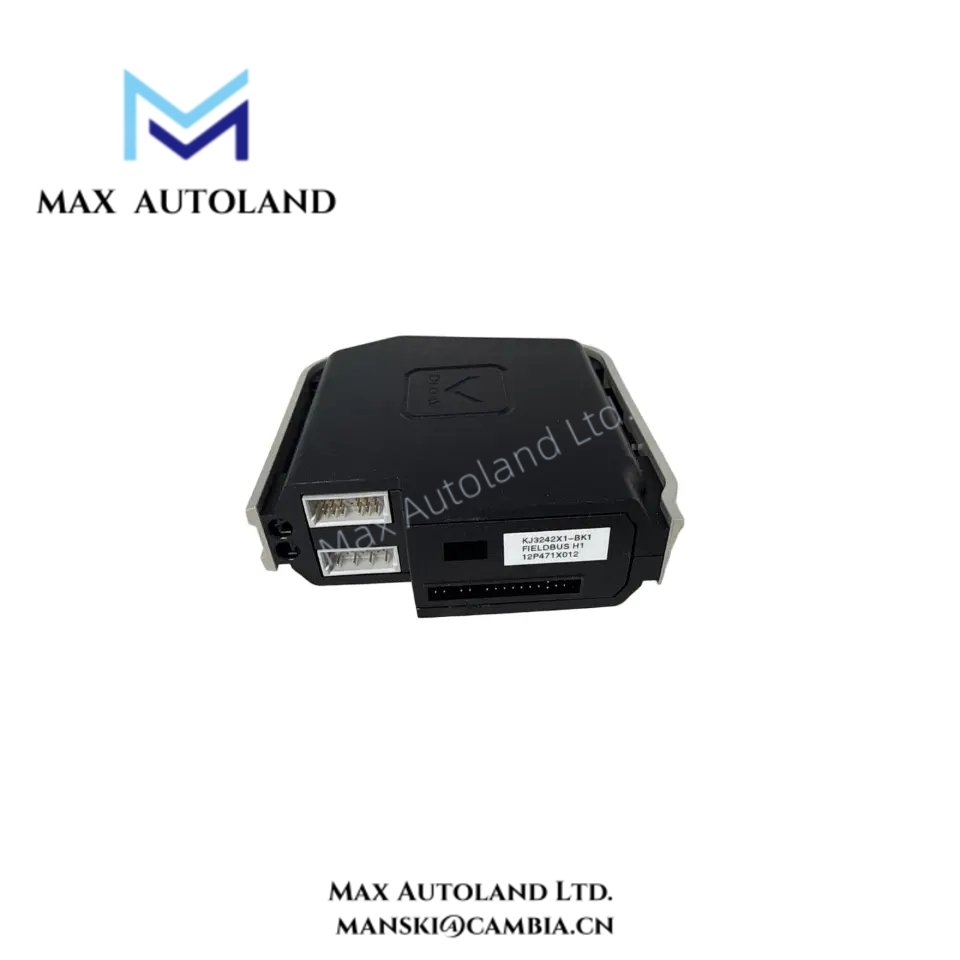

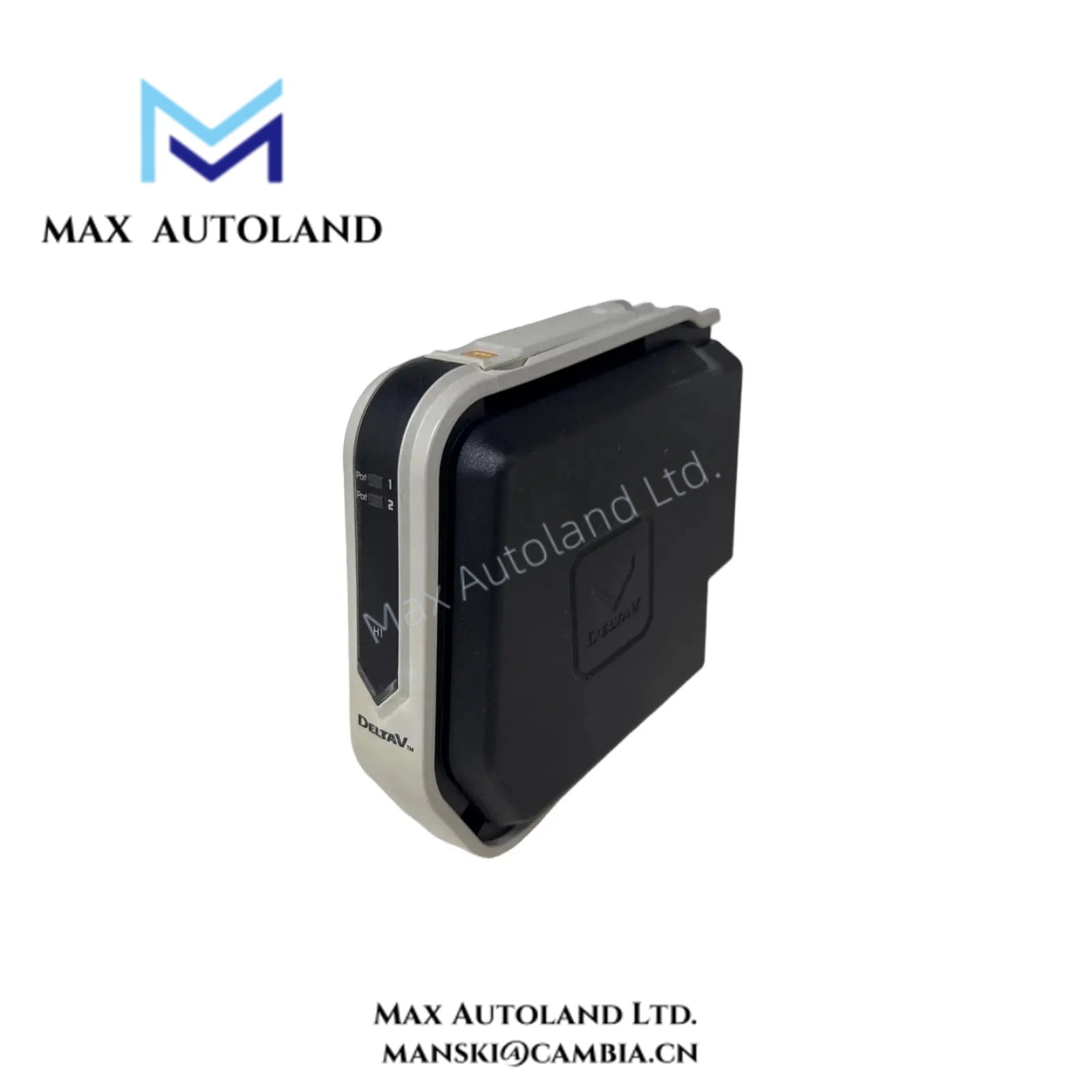

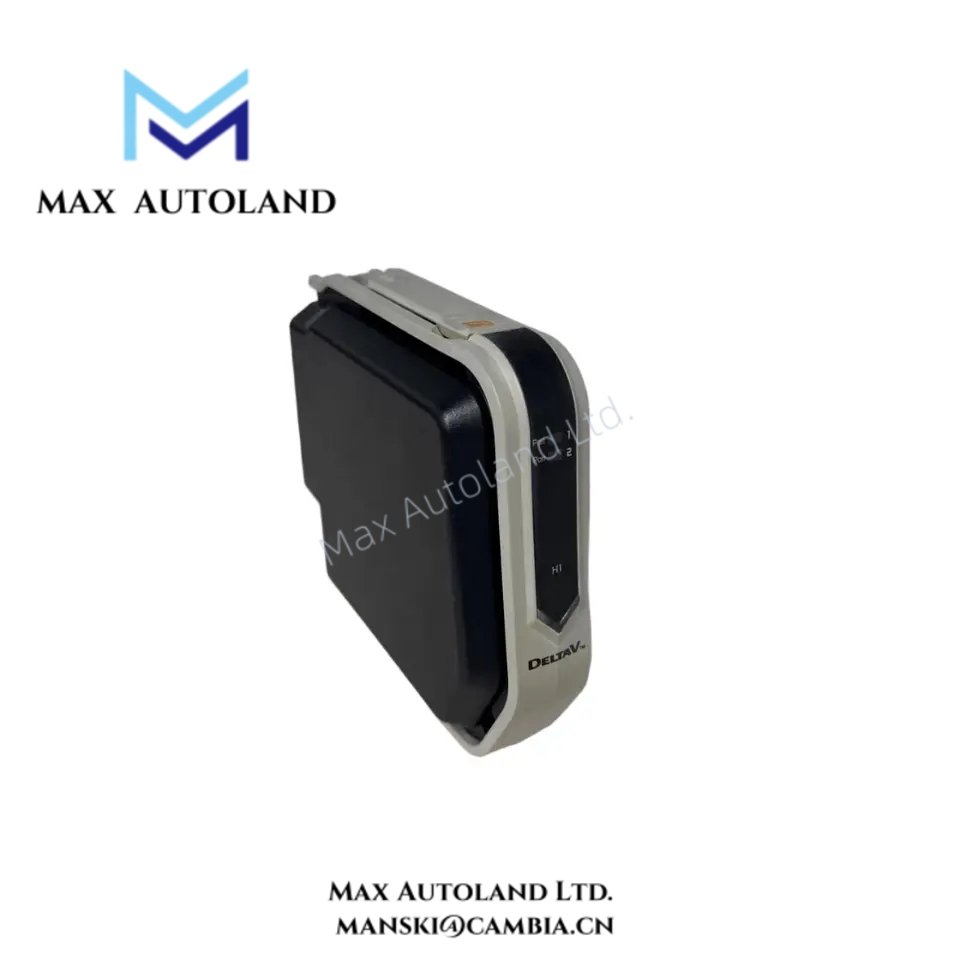

| Model Number | KJ3242X1‑BK1 |
| Product Type | S‑Series Fieldbus H1 Communication Card |
| System Compatibility | Emerson DeltaV Distributed Control System (DCS) |
| Communication Protocol | FOUNDATION Fieldbus H1 |
| Channels | Two independent H1 ports |
| Local Bus Power | 12 VDC at 300 mA |
| Fieldbus Power | 9–32 VDC at 12 mA per port |
| Operating Temperature | ‑40 °C to +70 °C |
| Humidity | 5% to 95% non‑condensing |
| Shock Resistance | 10 g half‑sine wave @ 11 ms |
| Vibration Resistance | 1 mm peak‑to‑peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Airborne Contaminant Rating | ISA‑S71.04 Class G3 |
| Hazardous Area Certifications | ATEX, IECEx, Class I Division 2 |
| Mounting | DeltaV S‑Series I/O rack |
| Weight | Approx. 0.5 kg |
| Typical Use | Fieldbus communication and power delivery for smart field devices |
FAQ
This card supports the FOUNDATION Fieldbus H1 digital communication protocol, enabling data exchange with smart field devices.Q2: How many H1 channels are available?
It provides two independent H1 channels for communication and device power distribution.
Q3: Can it power field devices directly?
Yes, the card supplies fieldbus power (9–32 VDC) directly to connected field devices.
Q4: What hazardous area certifications does it have?
It is certified for ATEX, IECEx, and Class I Division 2 hazardous locations.
Q5: What environmental conditions can it endure?
It operates reliably from ‑40 °C to +70 °C with non‑condensing humidity up to 95%.
Q6: Is diagnostic information provided?
Yes, integrated diagnostics help maintenance personnel quickly identify communication and device issues.
