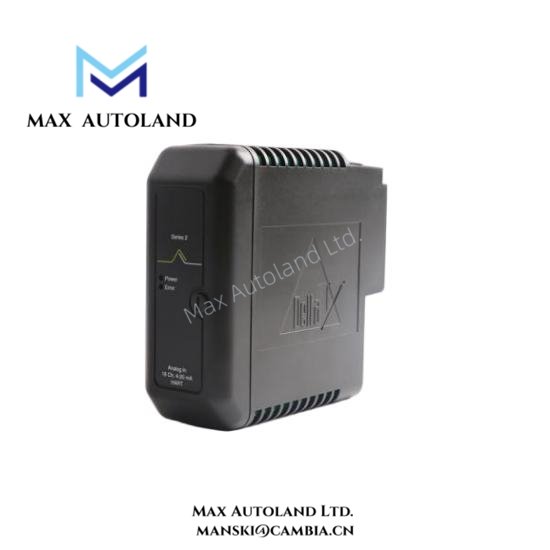

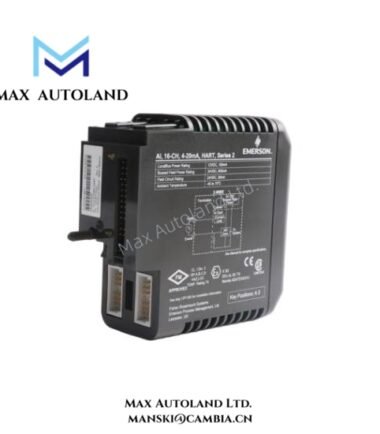

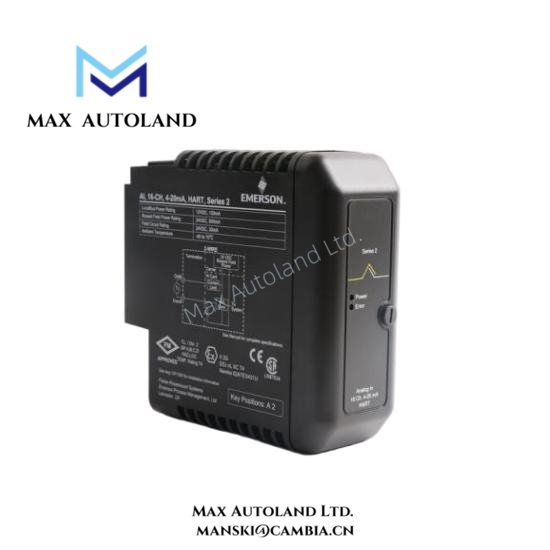

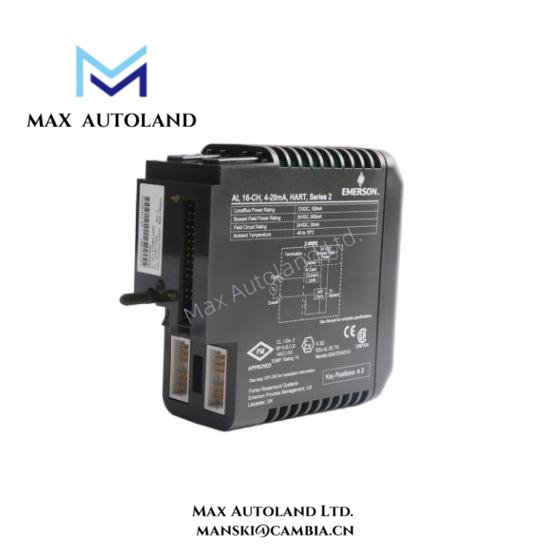

Overview
It supports sixteen 2-wire analog input channels, therefore enabling efficient integration of field transmitters into DeltaV architectures.
Moreover, native HART communication allows simultaneous access to process variables and device diagnostics.
Engineers select this module to improve measurement reliability while simplifying wiring and cabinet design.Designed for Series 2 DeltaV systems, the card supports stable operation in both standard and hazardous environments.
In addition, Emerson engineering ensures consistent performance across long operating lifecycles.
Specification
| Parameter | Description |
|---|---|
| Product Type | Analog Input Module |
| Manufacturer | Emerson |
| System Platform | DeltaV Distributed Control System |
| Model Number | KJ3223X1-BA1 |
| Series | DeltaV Series 2 |
| Channel Count | 16 analog input channels |
| Input Signal Type | 4–20 mA |
| Wiring Type | 2-wire transmitter support |
| HART Support | Yes, HART communication enabled |
| Channel Isolation | Channel-to-system isolation |
| Resolution | High-resolution analog-to-digital conversion |
| Typical Accuracy | Suitable for precision process measurement |
| Mounting Type | DeltaV I/O carrier mounting |
| Hazardous Area Support | Compatible with intrinsically safe configurations |
| Operating Environment | Industrial process control environments |
| Compliance | Designed to meet DeltaV and applicable international standards |
FAQ
A1: It supports 4–20 mA analog input signals from 2-wire field transmitters.Q2: Does this module support HART communication?
A2: Yes, it provides native HART pass-through for device diagnostics and configuration.
Q3: How many channels are available on this card?
A3: The module provides sixteen independent analog input channels.
Q4: Is this card suitable for hazardous area applications?
A4: Yes, it supports intrinsically safe configurations when installed with approved barriers.
Q5: Does the module require special maintenance?
A5: No routine maintenance is required beyond standard DeltaV system inspections.
