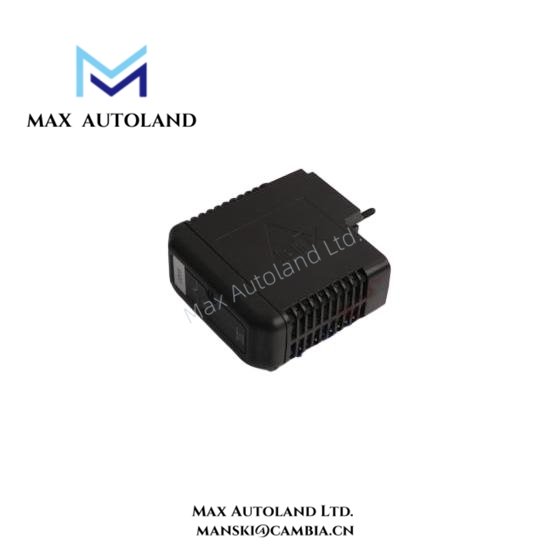

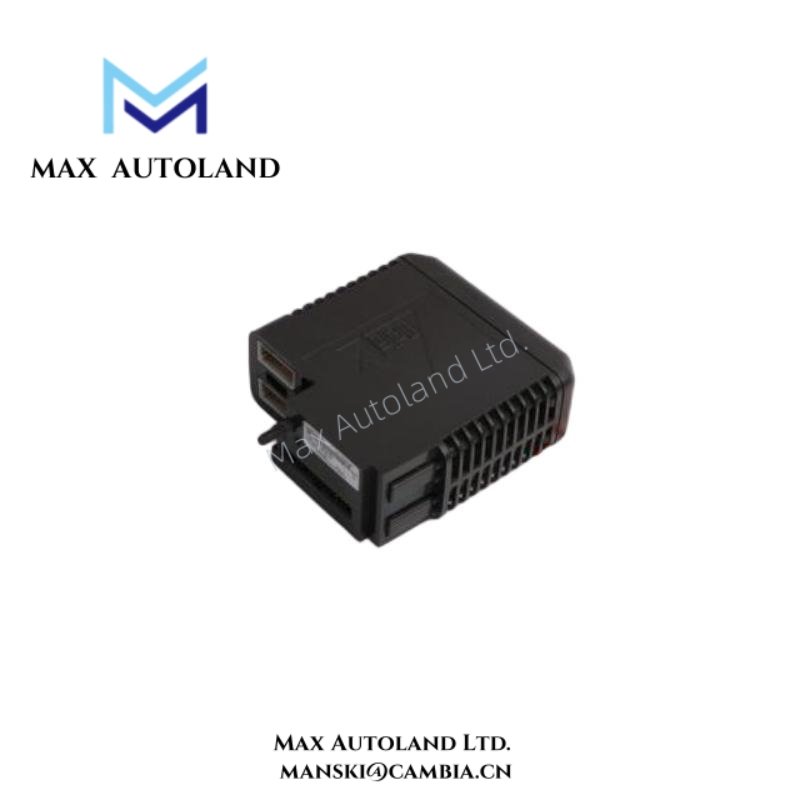

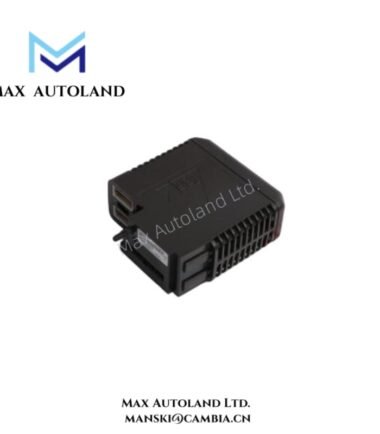

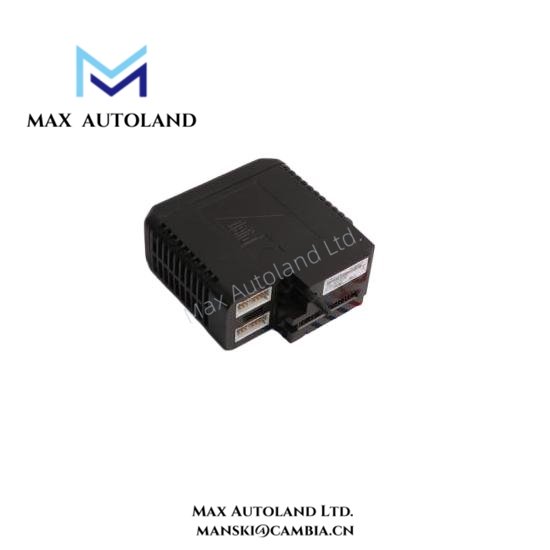

Overview
This module offers 32 digital input channels, each capable of handling 24 VDC dry contacts. Furthermore, its low power consumption and efficient design make it ideal for continuous industrial operations. Therefore, process engineers select this card to enhance system scalability, improve monitoring accuracy, and maintain safety-critical operations without unexpected downtime. In addition, the module’s compact form factor simplifies integration into complex control systems, supporting both current and future process requirements.
Specification
| Parameter | Details |
|---|---|
| Model Number | KJ3001X1-CA1 |
| Module Type | 32-Channel Dry Contact Input Card |
| Input Voltage | 24 VDC nominal |
| Number of Channels | 32 digital inputs |
| Input Type | Dry contact / switch closure |
| Current Consumption | ≤ 100 mA typical |
| Isolation | 500 V AC between channels |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Humidity | 5–95 % non-condensing |
| Mounting | DeltaV rack |
| Dimensions | 44 mm × 174 mm × 300 mm |
| Weight | ~0.45 kg |
| Certifications | CE, UL, CSA, FM approvals |
FAQ
A1: Yes, it is fully compatible with standard DeltaV racks, allowing straightforward installation.
Q2: What type of signals does this module support?
A2: The module supports 24 VDC dry contact or switch closure signals across all 32 channels.
Q3: How many digital input channels does the card provide?
A3: It provides 32 individual digital input channels, enabling high-density input monitoring.
Q4: Is this module suitable for continuous operation in industrial environments?
A4: Yes, it is designed for reliable 24/7 operation under demanding industrial conditions.
Q5: Does the module provide isolation between channels?
A5: Yes, each channel is electrically isolated up to 500 V AC for safety and signal integrity.
Q6: How can I verify the status of individual channels?
A6: Local LED indicators on the module allow quick diagnostics and real-time channel status monitoring.
