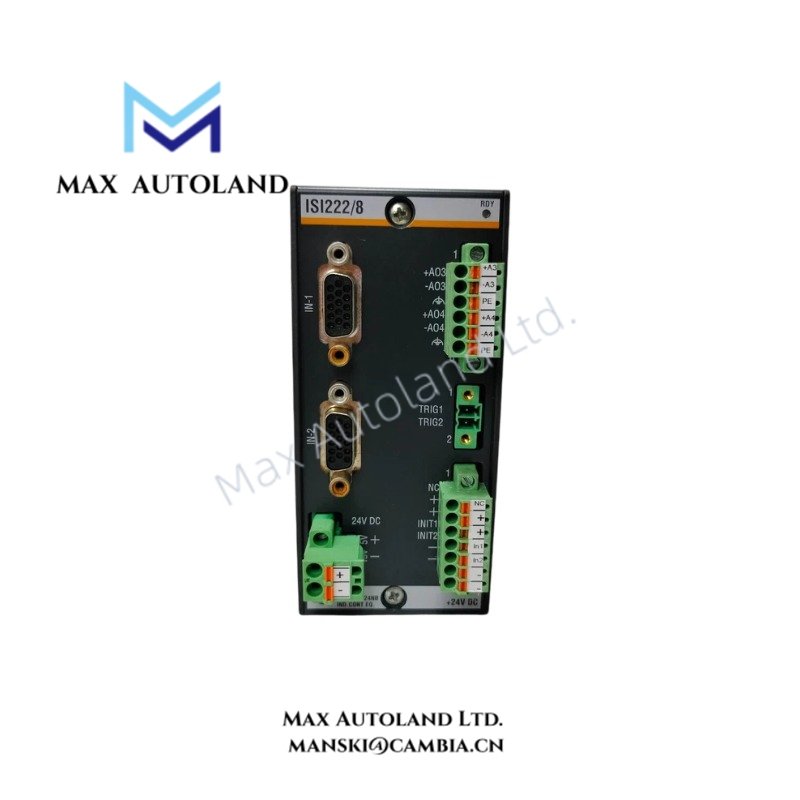

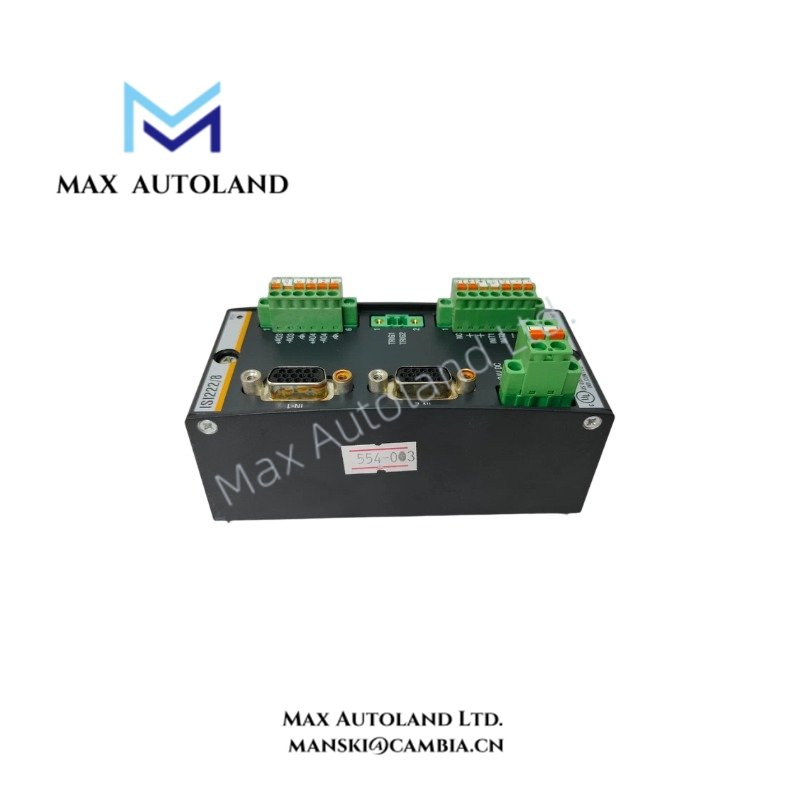

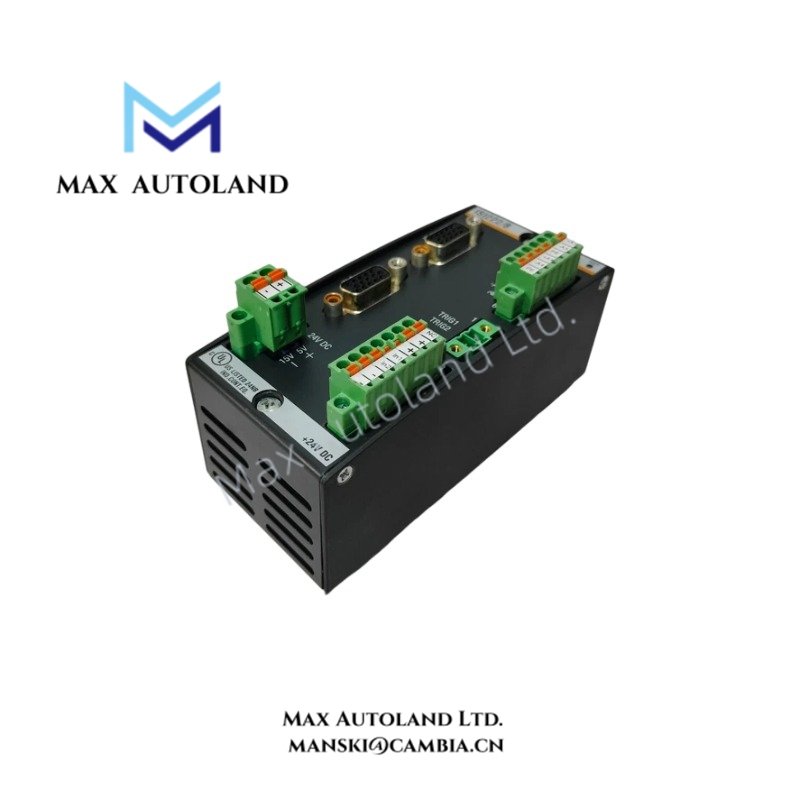

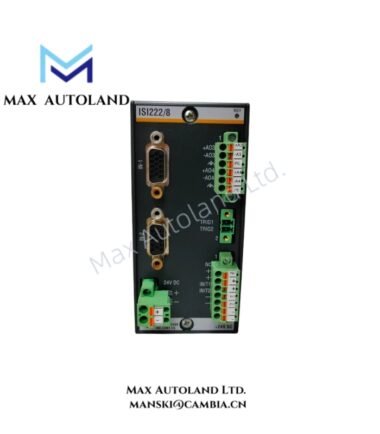

ISI222/8 Bachmann Positioning Module

Hardware Specifications

Encoder Acquisition and Motion Control

The ISI222/8 acquires incremental encoder signals and converts pulse transitions into position counts for two motion axes. Its 32-bit counters support position tracking, while selectable edge evaluation and pulse-direction operation accommodate different encoder signal configurations.

The two 14-bit analog outputs provide voltage command signals for connected control equipment. Four fast digital inputs accept trigger and initiator signals. System-level I/O can also supply motion-related signals, such as limit-switch states, through the controller communication architecture.

The integrated diagnostic functions monitor encoder resolution and identify potential wiring faults. Correct encoder signal assignment, supply selection, shielding, and signal routing are required for proper operation.

Frequently Asked Questions

Q: What is the maximum encoder input frequency?

A: The specified maximum input frequency is 8 MHz. Actual operation depends on the encoder interface configuration and signal characteristics.

Q: What analog output signals does the module provide?

A: The module provides two 14-bit analog outputs with a specified range of -10 V to +10 V. Verify the connected device’s input requirements before commissioning.

Q: Which controller interfaces are supported?

A: The supplied documentation identifies SVI and MIO as standard programming interfaces. It also lists compatibility with M-SMC, M-CNC, and M-SHAFT controller modules. Confirm the exact controller and firmware compatibility for the intended installation.

Field Installation Guidelines

• Install the module in the designated Bachmann M200 system position and follow the applicable hardware installation instructions.
• Verify encoder channel assignments for A, B, and N signals before applying power.
• Select the encoder supply voltage according to the encoder manufacturer’s electrical requirements and the module configuration.
• Route encoder wiring separately from motor power cables and other high-noise conductors where practicable.
• Apply cable shielding and grounding according to the controller and encoder documentation. Avoid unintended ground loops.
• Check the polarity, voltage range, and load requirements of each analog output before connecting the actuator or drive input.
• Confirm that digital input signals remain within the specified 18 to 34 VDC range.
• Verify SYNC and PreSYNC connections when system-synchronized motion control is required.
• Inspect encoder diagnostics and position counts during commissioning. Investigate wiring faults or inconsistent resolution readings before enabling motion.
• Confirm environmental suitability and required approvals against the official documentation for the exact hardware revision.
