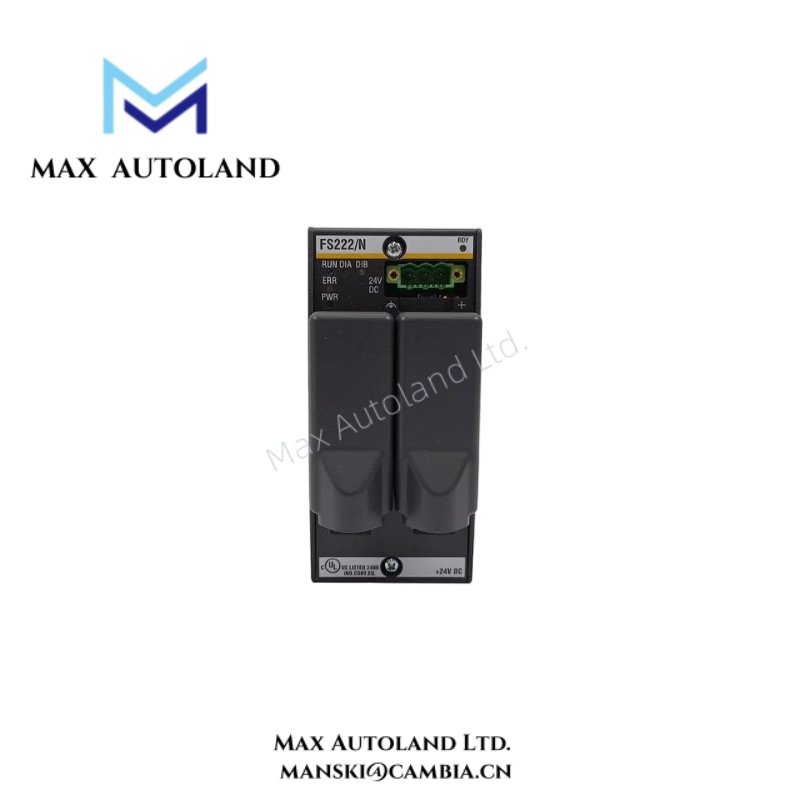

Overview
In addition, the module integrates seamlessly into Bachmann FASTBUS networks. Therefore, it becomes ideal for factory automation, energy, and process control applications.
Specification
| FASTBUS Interface | ||
| Cable length | 2000 m between the stations Total length max:2300m | |
| Transmission medium | Multimode fiber(50/125μm and 62.5/125μm)max.2000m FOC connector type LC FOC guide wavelength 1310nm | |
| Max.number of stations | 16(max.10 per line) | |
| Link budget | >8 dB(3dB reserve) | |
| Integrated power supply | ||
| nput voltage | 24VDC(18Vto 34V) | |
| Nominal power(Output) | 18.25W | |
| Output current at+5V | 3000 mA1) | |
| Output current at+15V | 250 mA1) | |
| Output current at-15V | 200 mA1) | |
| )Total power must not exceed the specified nominal power(output) | ||
| Diagnostics | ||
| Fiber optics-received light output | HW:three-color status LED SW:0 %to 100 % | |
| Approvals/Certificates | ||
| General | CE,UKCA,cULus | |
| Marine | ABS,BV,DNV,KR,LR,NK,RINA | |
| Environmental conditions Standard ColdClimate(米) | ||
| Operating temperature | -30°℃to+60℃ | |
| Relative humidity,operation | 5%to 95%noncondensing | 5%to 95%with condensation |
| Storage temperature | -40℃ to+85℃ | |
| Relative humidity,storage | 5%to 95%with condensation | |
| Pollution degree(IEC 60664-1) | 2(noncondensing) | 2 |
FAQ
It operates on the FASTBUS network for real-time communication between modules.
Q2: Can it be used with Bachmann MC series processors?
Yes — it is fully compatible with MC series processors and other FASTBUS modules.
Q3: Does FS222/N provide diagnostic features?
Yes — LED indicators and internal monitoring help track module and network status.
Q4: Is the module suitable for harsh industrial environments?
Yes — it is designed for industrial-grade operation under temperature and electrical variations.
Q5: Can the system expand using multiple FS222/N modules?
Yes — multiple modules can be added to scale the system according to application requirements.
