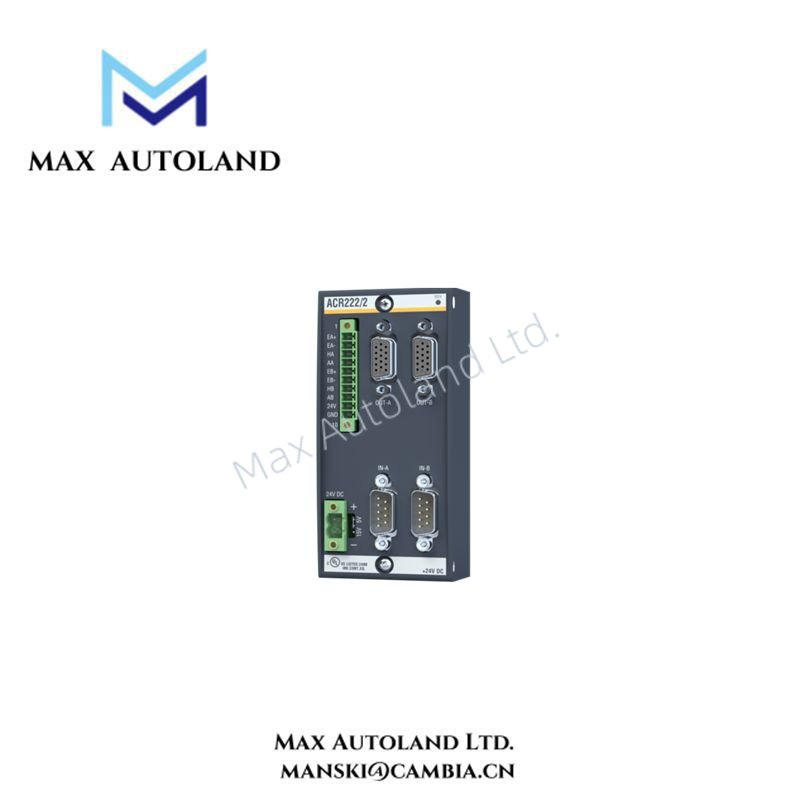

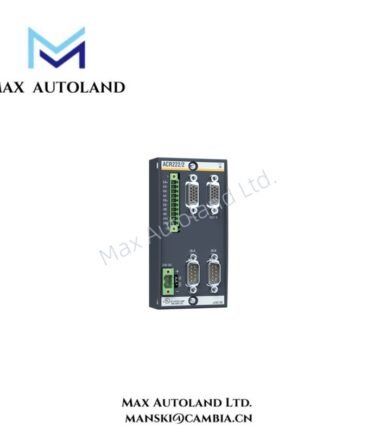

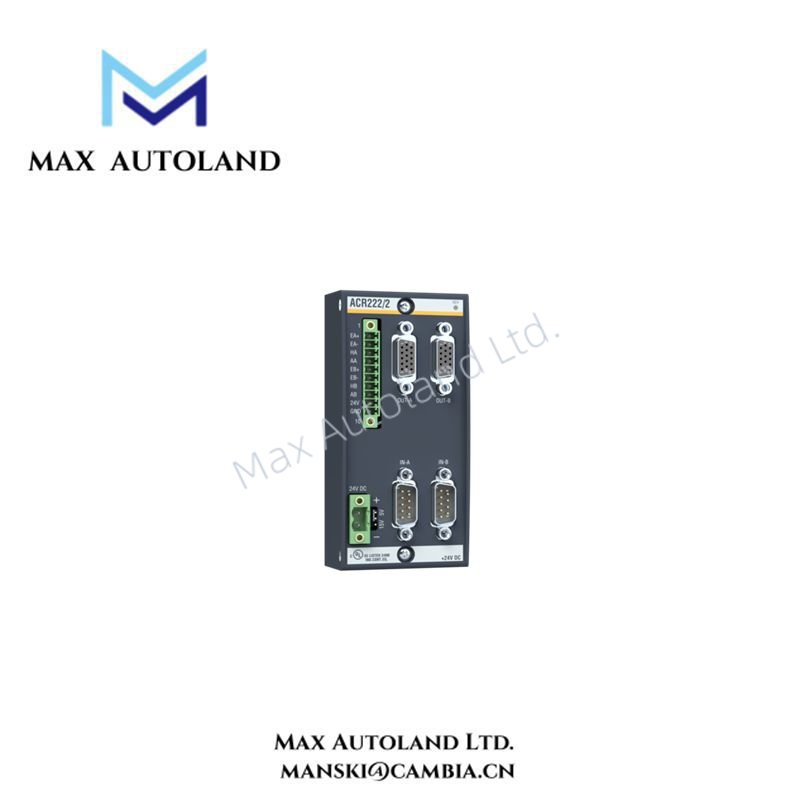

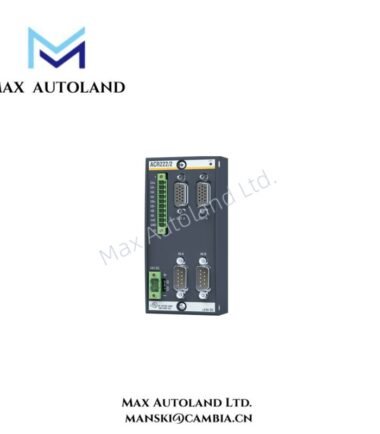

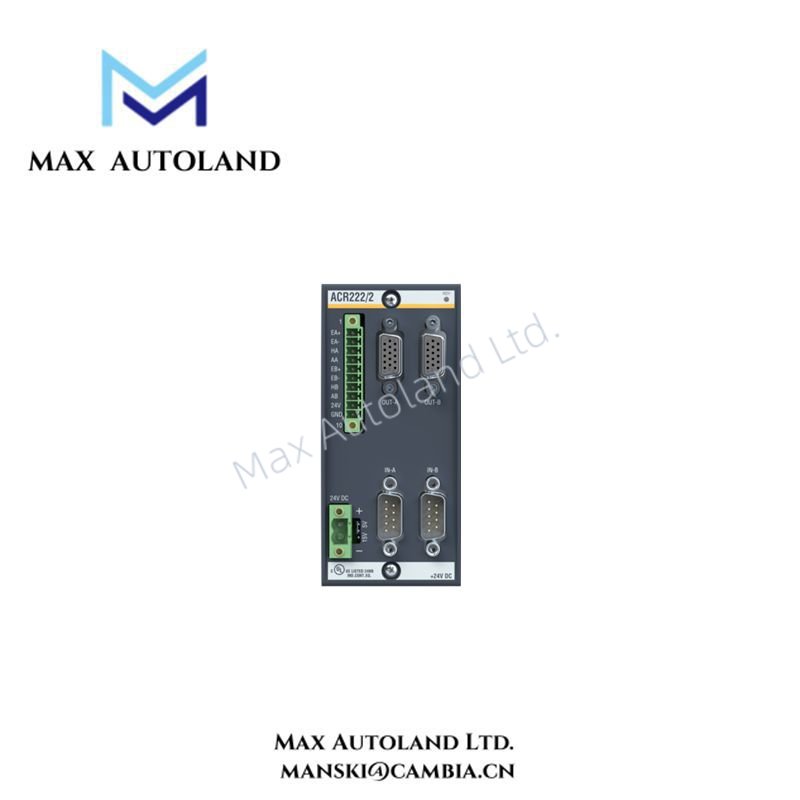

Overview
Specification
| Category | Specification |
|---|---|
| Encoder Interface | Counter Resolution: 24 bit |
| Counter Modes: 1-, 2-, 4-edge evaluation | |
| Encoder Frequency: Max. 1 MHz | |
| Inputs: HEDL (HP/AVAGO interface) / RS422 | |
| Galvanic Isolation from System: 500 V | |
| Encoder Power Supply: +5 V or +15 V selectable with jumper | |
| Motor Controller Interface | Stepper Frequency: Max. 150 kHz |
| Number of Steps (Range): 1 to 16,777,215 | |
| Acceleration Type: Linear, sin², or parabolic | |
| Acceleration/Braking Time: 8 ms to 131 s | |
| Output Voltage: Low: 0–2 V, High: 3–34 V, Imax = 10 mA | |
| Input Voltage: Low: 0–3 V, High: 4–30 V | |
| Voltage Range: 18–34 VDC | |
| Current Consumption Internal: Normally 400 mA at 24 VDC + Σ current consumption of encoders/sensors | |
| Galvanic Isolation from System: 500 V | |
| Reverse Polarity Protection: Yes | |
| Approvals / Certificates | CE, cULus, CCC |
| Ambient Conditions | Operating Temperature: 0 to +60 °C |
| Storage Temperature: -40 to +85 °C | |
| Relative Humidity (Operation): 5–95% without condensation | |
| Relative Humidity (Storage): 5–95% without condensation | |
| Pollution Degree: 2 (without condensation; IEC 60664-1) | |
| Dimensions | Size: 2.5″ x 4.7″ x 2.5″ (6.3 x 11.9 x 6.3 cm) |
| Weight: 0 lbs 9.8 oz (0.3 kg) |
FAQ
Q: What is the maximum number of modules that can be connected in a system?
A: The number of modules that can be connected depends on the specific configuration and the overall system design. It’s advisable to consult the system’s documentation or contact Bachmann support for detailed information.
Q: Does the ACR222/2 include a power amplifier?
A: No, the ACR222/2 does not include a power amplifier; it serves as a controller module interfacing with external power stages.
Q: What is the warranty period for the ACR222/2?
A: The warranty period may vary depending on the supplier. It’s recommended to verify the warranty details with the purchasing vendor.
Manual/Datasheet PDF
