Overview
Specification
| Parameter | Description |
|---|---|

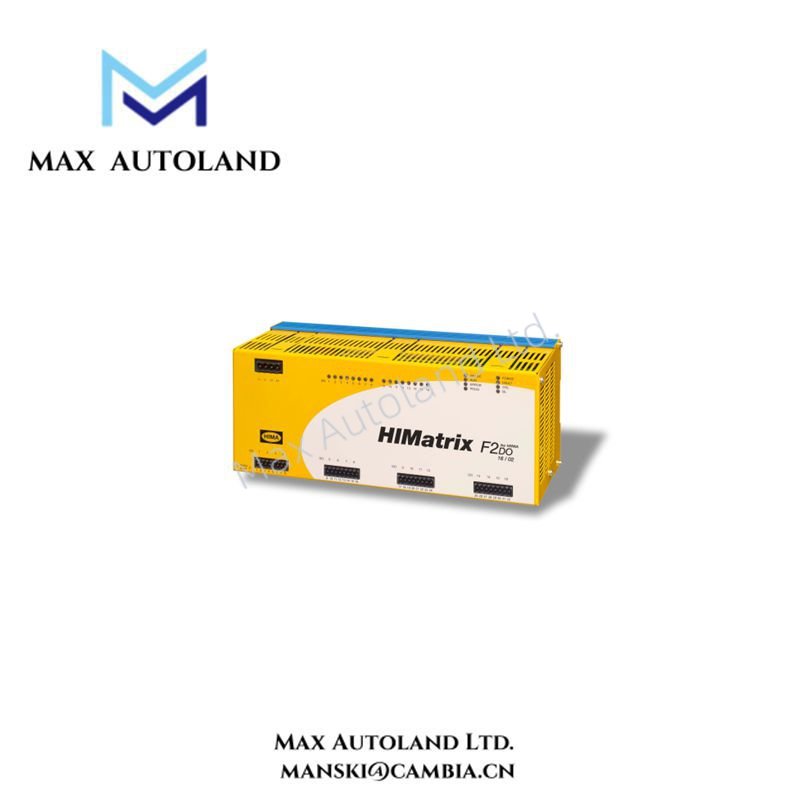

| Manufacturer | HIMA |
| Model / Part No. | F2DO1602 / F2 DO 16 02 |
| Series | HIMatrix Safety Controller |
| Output Channels | 16 digital outputs |
| Output Type | 24 V DC sourcing outputs |
| Load Current (per channel) | Up to 0.5 A |
| Channel Isolation | Each channel isolated from others and system ground |
| Total Output Current | Maximum 8 A per module |
| Switching Delay | Typically < 2 ms |
| Power Supply | 24 V DC (nominal), range 19.2 V – 30 V DC |
| Status Indicators | 16 × LED indicators for channel status |
| Connection Type | Plug-in terminal block, screw type |
| Mounting | DIN-rail or base-mounted in HIMatrix rack |
| Operating Temperature | −20 °C to +60 °C |
| Dimensions (W × H × D) | Approx. 25 mm × 128 mm × 120 mm |
| Weight | Approx. 150 g |
| Certifications | TÜV certified for SIL 3 according to IEC 61508 |
| Communication Interface | Integrated with HIMatrix I/O bus |
FAQ
A1: Yes, all units are brand-new and factory-sealed from HIMA.Q2: Is the F2DO1602 module available in stock?
A2: Yes, we maintain stock and ship within 3 days to 2 weeks, depending on order size.Q3: What shipping methods are available?
A3: We commonly ship via DHL, FedEx, or UPS worldwide.
Q4: Do you accept returns for quality issues?
A4: Absolutely — we support returns within 30 days for verified product defects.
Q5: What safety level does the F2DO1602 meet?
A5: The module complies with SIL 3 certification under IEC 61508 standards.
Q6: Can I mix the F2DO1602 with other HIMatrix I/O modules?
A6: Yes, it integrates perfectly with analog and digital I/O modules in the same rack.
