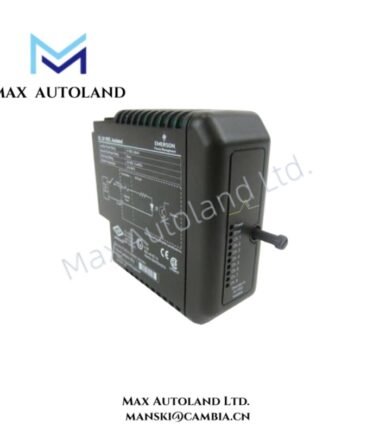

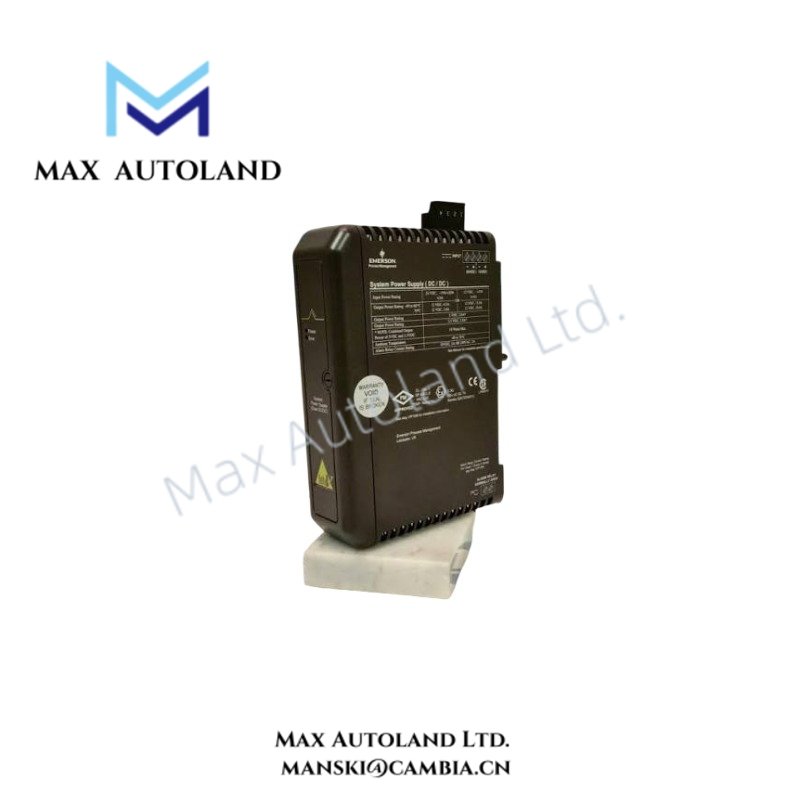

Emerson VE5008 DC-to-DC System Power Supply

Hardware Specifications

DeltaV Process Control Power Interface

The Emerson VE5008 provides regulated DC conversion for DeltaV M-Series hardware carriers. It supplies internal voltage rails required by controllers and I/O interfaces while maintaining electrical separation between the external DC source and internal system circuits.

The module supports DeltaV modular installation practices and connects through standard carrier hardware. In addition, the power status circuit monitors output voltage conditions and activates the alarm relay when supply parameters remain within the defined operating range.

For Emerson DeltaV applications, the power module design aligns with process control hardware requirements, including channel-to-channel isolation practices used throughout DeltaV I/O architectures. The module operates as a dedicated power component rather than a field signal acquisition device and does not provide 4-20 mA HART or FOUNDATION Fieldbus communication functions.

Frequently Asked Questions

Q: Does the VE5008 provide field input or output signal processing?
A: No. The VE5008 functions as a DC-to-DC system power supply and provides regulated internal DC power for DeltaV controllers and I/O hardware.

Q: Can the VE5008 operate outside DeltaV carrier hardware?
A: The module is designed for DeltaV power/controller carrier installation. Field installation should follow Emerson carrier configuration requirements and approved wiring practices.

Q: What do the VE5008 LED indicators represent?
A: The green indicator shows DC input power availability and internal circuit status. The red indicator indicates that the internal output voltage values are outside the specified tolerance range.

Field Installation Guidelines

• Install the VE5008 on the designated Emerson DeltaV carrier position according to the system hardware manual.
• Verify that the external DC supply wiring uses appropriate industrial protection devices before connection.
• Keep DC power wiring separated from high-voltage AC cables and high-noise switching circuits.
• Connect grounding conductors according to DeltaV cabinet grounding practices to reduce electrical interference.
• Confirm connector seating and mechanical locking before applying system power.
• Inspect alarm relay wiring to ensure correct normally open contact configuration.
• Maintain cabinet ventilation and environmental conditions within the specified operating limits.
