Overview

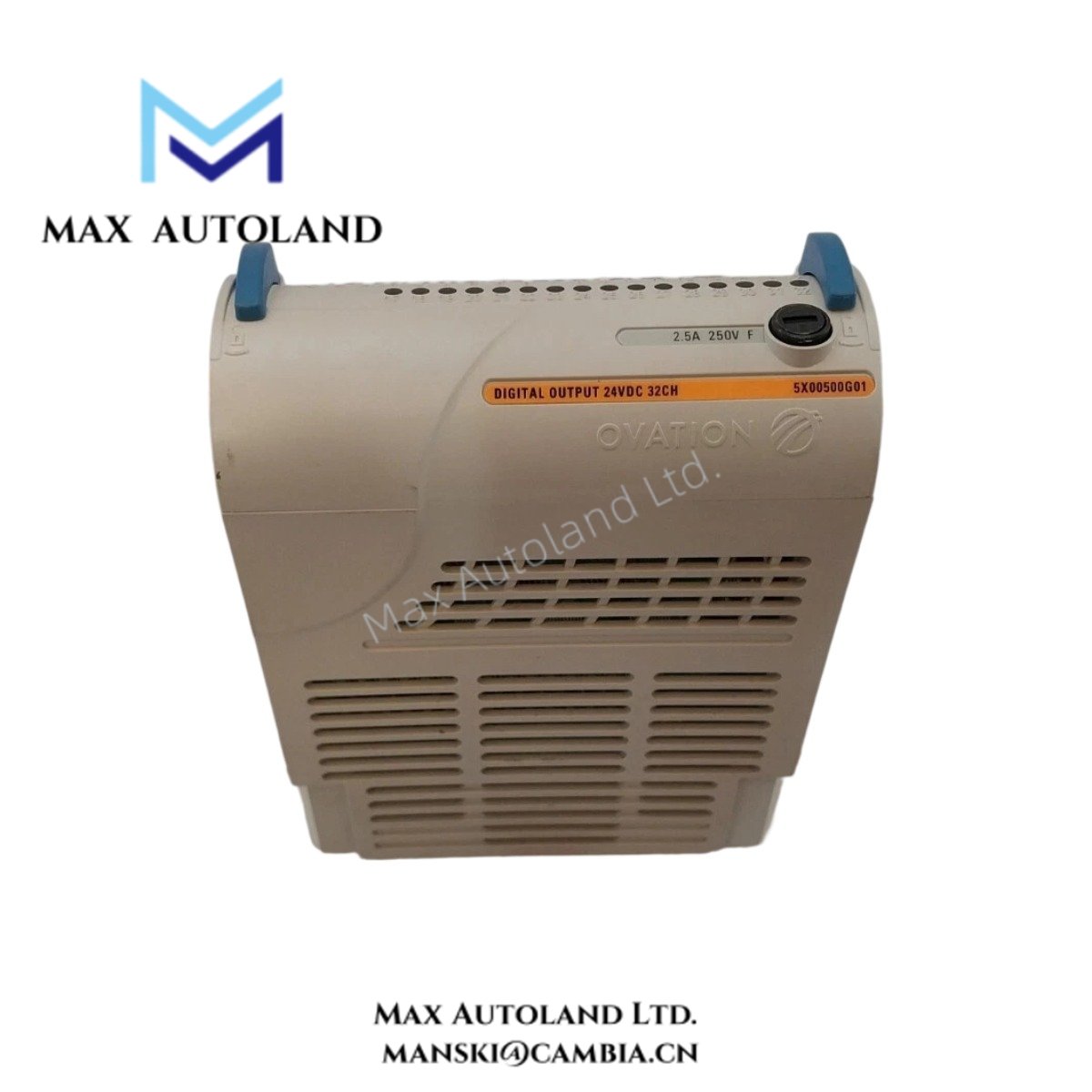

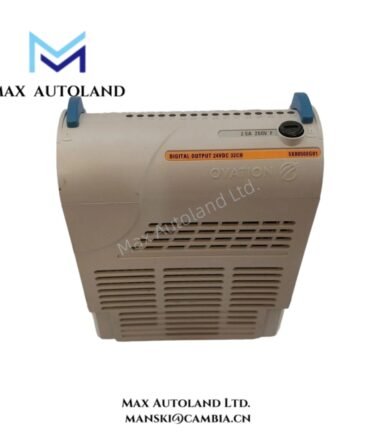

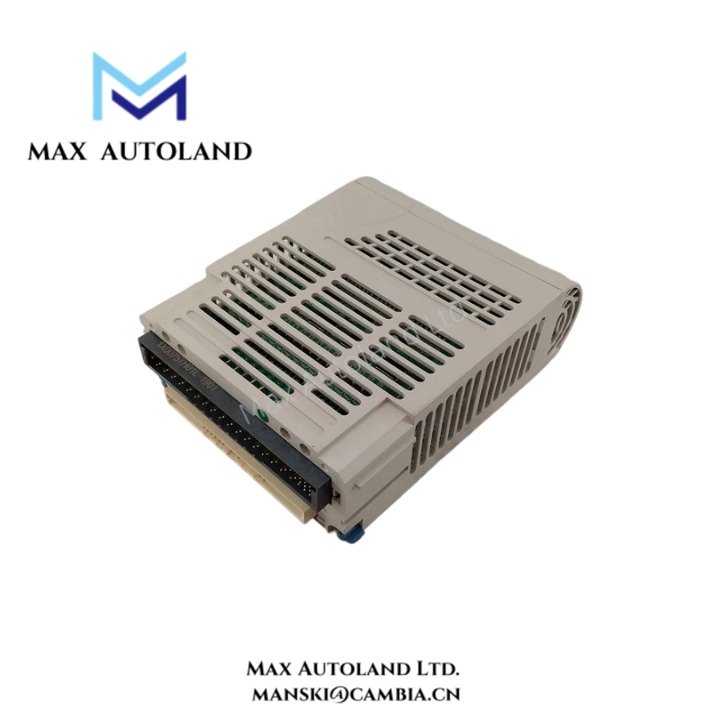

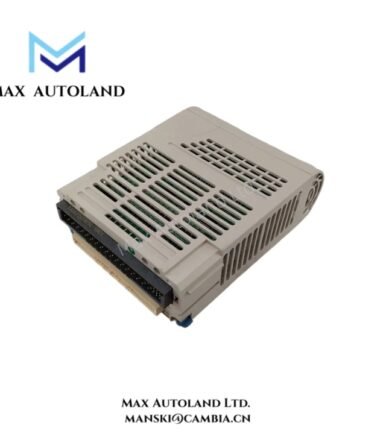

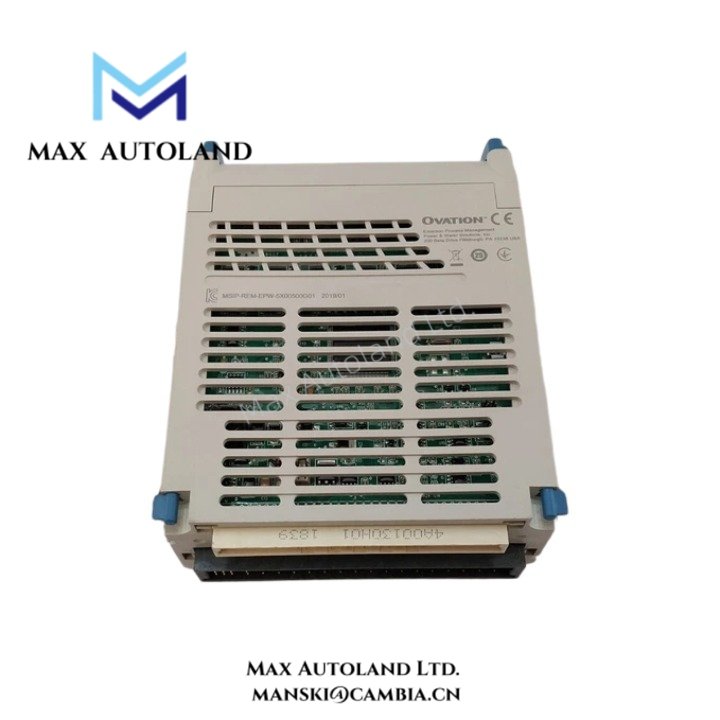

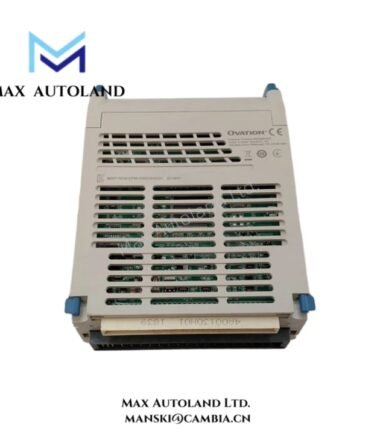

The 5X00500G01 from Emerson Ovation is a high-performance 32-channel digital output module. It provides reliable switching and rapid response for distributed control systems. Designed for seamless integration into Ovation racks, this module ensures accurate signal transmission and system stability. The compact form factor simplifies installation and reduces maintenance time.
Specification
| Parameter | Details |
|---|---|
| Model | 5X00500G01 |
| Manufacturer | Emerson |
| Category | Digital Output Module |
| System | Ovation DCS |
| Channels | 32 independent digital outputs |
| Output Type | Relay-contact switching, 24 VDC nominal |
| Maximum Current per Channel | 0.5 A |
| Response Time | 2 ms typical |
| Power Supply | 24 VDC nominal |
| Current Consumption | 350 mA typical |
| Energy Storage | Internal capacitors for transient protection |
| Dimensions (L × W × H) | 200 × 100 × 40 mm |
| Weight | 0.5 kg |
| Mounting | Rack-mounted in Ovation chassis |
| Operating Temperature | 0–60°C |
| Storage Temperature | -20–70°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Resistance | 2 g at 10–500 Hz |
| Diagnostic Features | LED status indicators for each channel |
| Maintenance | Hot-swappable module design for quick replacement |
| Environmental Protection | EMI/RFI shielding for stable operation |
FAQ
Q1: Is the 5X00500G01 original and brand new?
Yes, the 5X00500G01 is fully original, factory-sealed, and brand new.
Q2: Do you have this module in stock?
Yes, we have inventory; delivery depends on order quantity.
Q3: How fast can you ship this module?
Shipping typically occurs within 3 days to 2 weeks, depending on order size.
Q4: What shipping methods are available?
We commonly use DHL, FedEx, and other international couriers.
Q5: What is the warranty or return policy?
We support returns within 30 days if the 5X00500G01 has quality issues.
Q6: How many output channels does this module provide?
The 5X00500G01 features 32 independent digital output channels.
