Overview
Processor Status Contact
The processor status contact provides an external indication of CPU abnormality. The contact opens when the CPU enters an abnormal state, allowing an external monitoring or alarm circuit to detect the condition. Its rated load must not exceed 30 VDC and 0.3 A.
Power Supply Configuration
The available power supply options are specified by suffix code. The listed configurations cover two AC voltage ranges and one DC supply option:
- 100-120 VAC at 50/60 Hz
- 220-240 VAC at 50/60 Hz
- 24 VDC
The selected supply voltage must match the converter’s ordered configuration. Confirm the complete model and suffix before connecting the power supply.
Technical Specifications

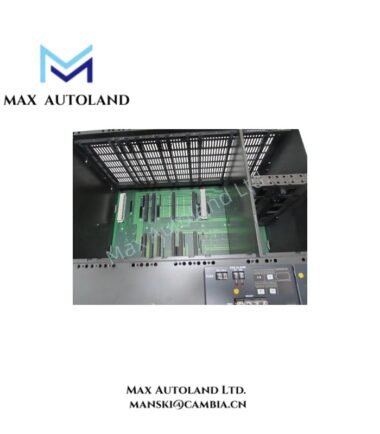

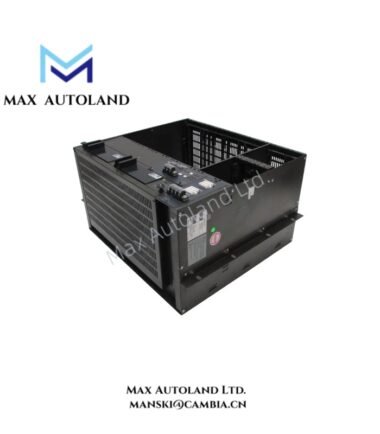

| Parameter | Specification |
|---|---|
| Model | ABC11D-V2121 |
| Brand | Yokogawa |

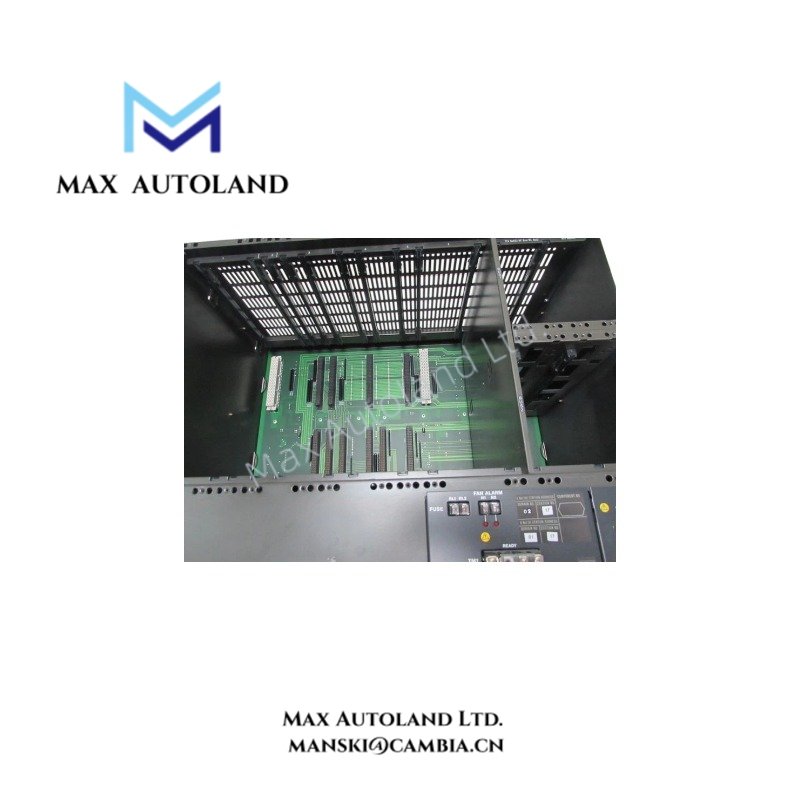

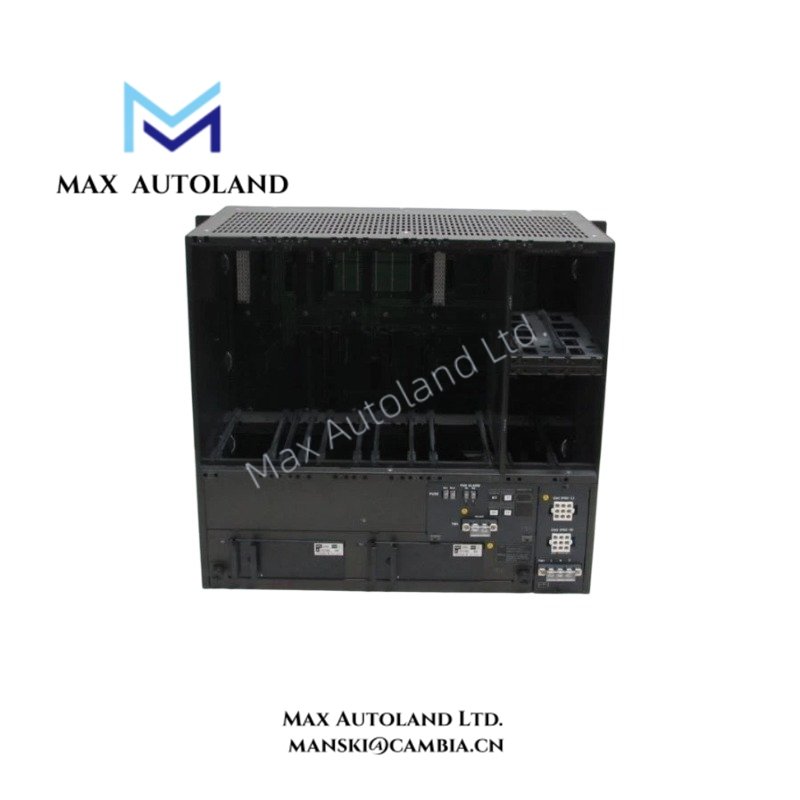

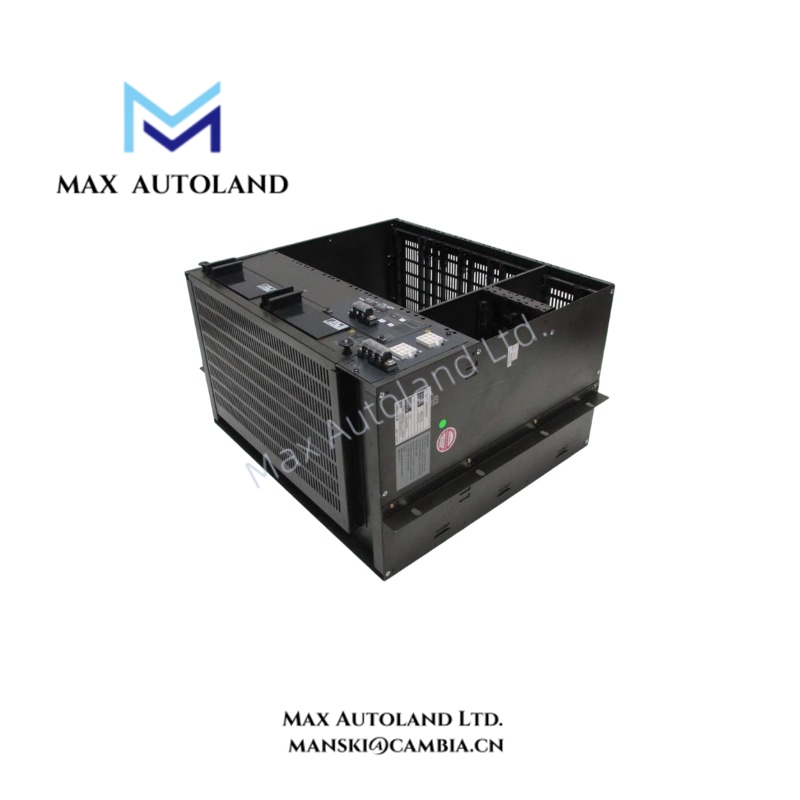

| Product Type | Dual-Redundant Bus Converter |
| Function | Bus signal conversion |
| System Application | Integrated production control systems, including CENTUM VP |
| Processor Status Contact | Opens when CPU abnormality occurs |
| Contact Rating | 30 VDC, 0.3 A maximum |
| AC Power Supply Options | 100-120 VAC or 220-240 VAC |
| AC Frequency | 50/60 Hz |
| DC Power Supply Option | 24 VDC |
| Safety Compliance | CSA for 100-120 VAC power supply; CE marking for 220-240 VAC power supply |
| EMC Compliance | CE, C-Tick and KC markings for 220-240 VAC power supply |
Frequently Asked Questions
Q: What is the main function of the ABC11D-V2121?
A: It functions as a dual-redundant bus converter, converting bus signals in industrial control system configurations. It is identified for use in integrated production control systems such as Yokogawa CENTUM VP.
Q: What power supply options are available?
A: The listed options are 100-120 VAC, 220-240 VAC and 24 VDC. The AC options operate at 50/60 Hz. The required voltage configuration must match the unit’s suffix code.
Q: How does the processor status contact indicate a CPU fault?
A: The contact opens when CPU abnormality occurs. It supports external fault monitoring and has a maximum contact rating of 30 VDC and 0.3 A.
