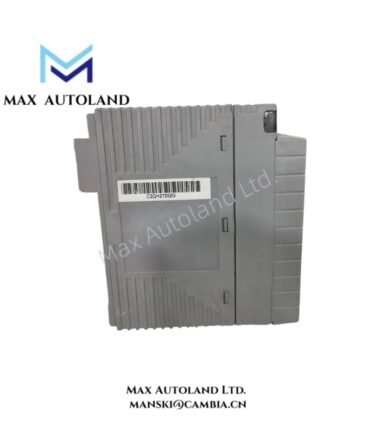

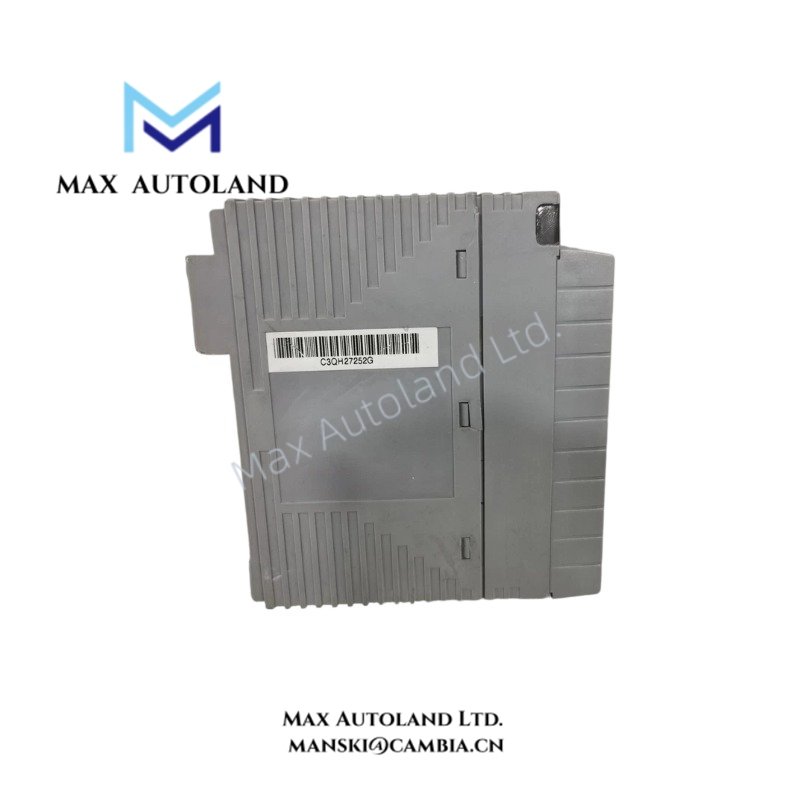

AAI543-H50/K4A00 Yokogawa Analog Output Module

Hardware Specifications

Channel-To-Channel Isolation And HART Communication

Operating within standard industrial control architectures, the module executes channel-to-channel and galvanic isolation to protect internal system buses from external transient voltages. Consequently, the circuitry sustains an isolation voltage of 1500 V AC between output and system terminals for one minute. Moreover, the hardware natively supports HART communication protocols, thereby enabling bidirectional digital overlay data transmission alongside the standard 4 to 20 mA analog loop without signal degradation.

Frequently Asked Questions

Q: Does the Yokogawa AAI543-H50/K4A00 support hot-swap operations in a dual-redundant configuration?

A: Yes, the module supports online replacement when deployed in a dual-redundant architecture, provided that system-level redundancy parameters are correctly configured before extraction.

Q: What is the maximum update period for the analog output data stream?

A: The module executes a fixed data update period of 10 ms across all active 16 channels concurrently.

Field Installation Guidelines

When installing the module into the system node, engineers must verify that terminal connections utilize pressure clamp terminals or dedicated KS1 cables correctly. Furthermore, ensure proper grounding and shielding of all 4 to 20 mA signal lines to mitigate electromagnetic interference in high-noise industrial environments.
