Overview

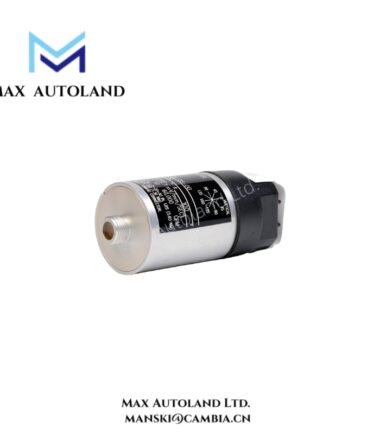

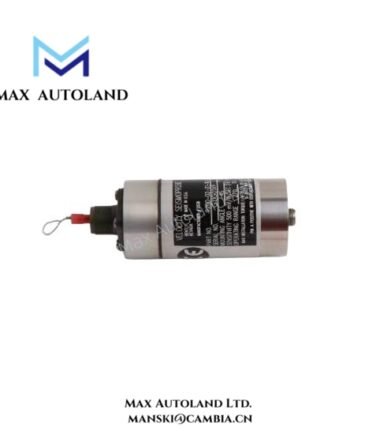

Moreover, the 9200-03-01-10-00 model is tailored for harsh industrial environments, where durability and accuracy are critical. Its stainless-steel housing ensures corrosion resistance and mechanical robustness under high vibration and temperature variations. Therefore, it consistently delivers dependable velocity readings for turbines, compressors, motors, and large pumps, supporting efficient machinery protection and predictive maintenance.
Specification
| Category | Specification |
|---|---|
| Electrical | |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% |
| Load | 10 kΩ between terminals A and B |
| Sensitivity Temperature Coefficient | 0.2% per °C |
| Frequency Response | 4.5 to 1000 Hz (+0, −3 dB typical) |
| Dynamic Range | 2.54 mm (0.1 in) peak-to-peak maximum displacement |
| Velocity Range | 25 mm/s (1 in/s) at +22°C and 100 Hz |
| Coil Resistance | 1.25 kΩ ±5% |
| Inductance | 125 mH typical |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s at 100 Hz |
| Shock Resistance | Withstands 50 g peak along non-sensitive axis |
| Transverse Sensitivity | ±10% maximum at 100 Hz and 1 in/s |
| Polarity | Pin A positive relative to Pin B when case moves toward connector |
| Maximum Cable Length | 305 m (1,000 ft) |
| Environmental | |
| Operating Temperature | −29°C to +121°C (−20°F to +250°F) |
| Dust/Moisture Resistance | Fully sealed, field-rated construction |
| Relative Humidity | Up to 95% non-condensing |
| Maximum Altitude | 2000 m (6,561 ft) above sea level |
| Mechanical | |
| Transducer Mounting Angle / Min. Frequency | 90° ±2.5, 4.5 Hz (270 cpm) |
| Connector / Cable Option | Top Mount (no cable) |
| Mounting Base Option | Circular M10×1 stud |
| Material | Stainless steel housing |
| Agency Approval Option | No Approvals (standard industrial version) |
FAQ
No. It is a self-generating, two-wire velocity transducer that does not need external excitation.
Q2: Can this sensor operate in high-temperature environments?
Yes. It functions reliably from −29°C to +121°C (−20°F to +250°F).
Q3: What monitoring systems are compatible with this transducer?
It integrates smoothly with Bently Nevada 3300 and 3500 systems, as well as most industry-standard vibration monitors.
Q4: How often does the transducer require recalibration?
Under normal industrial use, calibration is typically verified during scheduled maintenance intervals.
