Overview
Moreover, this module allows operators to fine-tune load sharing through analog and digital adjustments, improving generator synchronization and fuel efficiency. With durable construction and straightforward setup, it ensures long-term reliability in demanding industrial and marine environments.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | WOODWARD |

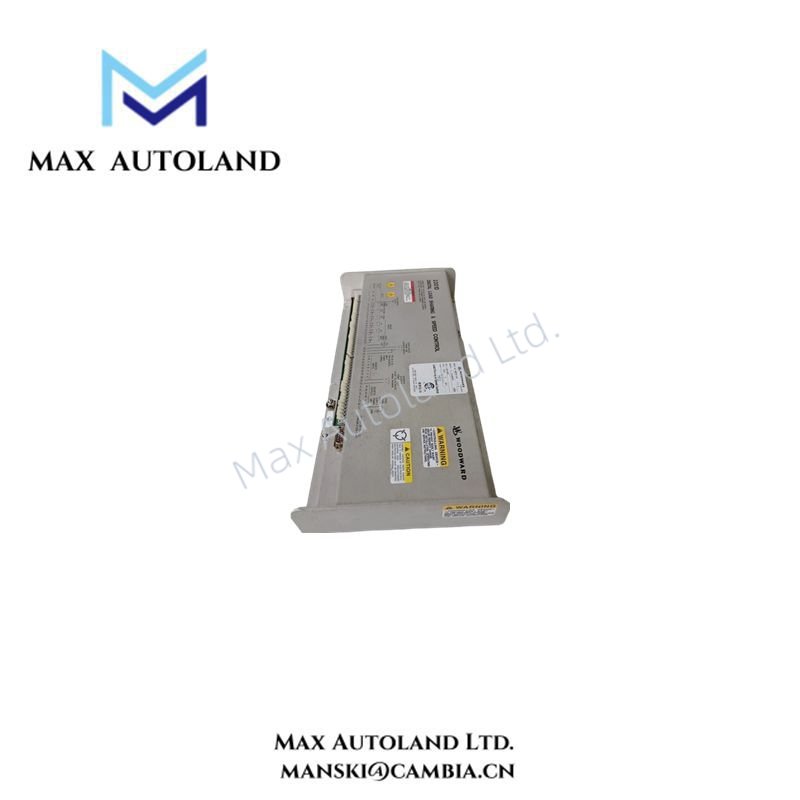

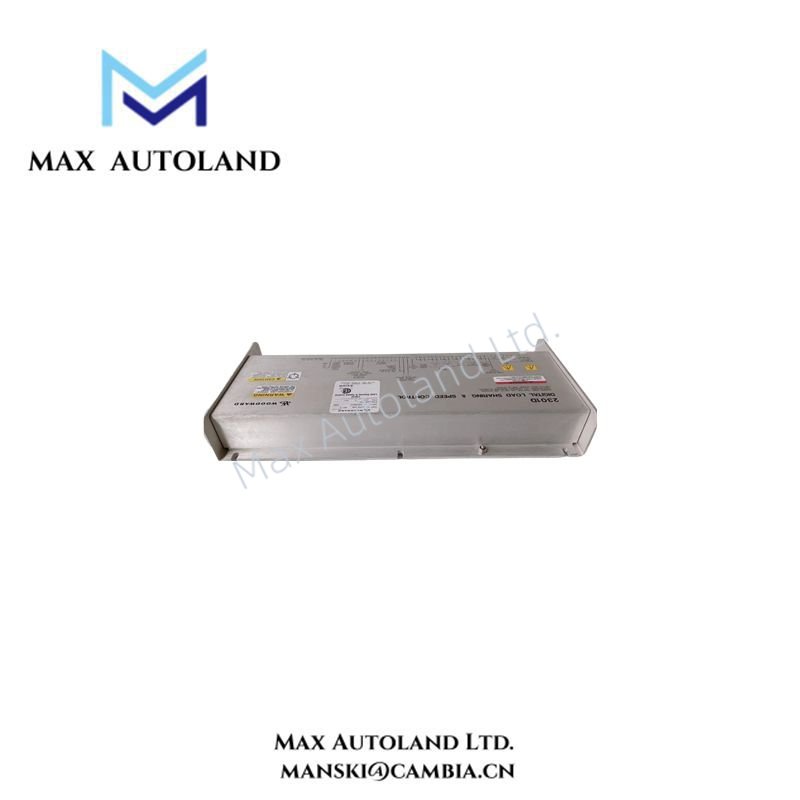

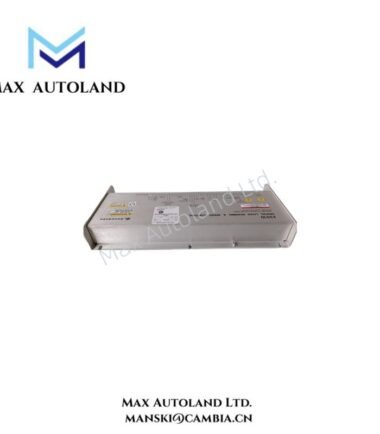

| Model | 9907-014 |
| Series | 2301A Load Sharing and Speed Control |
| Function | Engine Speed and Load Control |
| Speed Range | 1 500 – 6 000 RPM adjustable |
| Speed Trim | ±10 % via external potentiometer |
| Load Sharing Range | ±5 % adjustable |
| Droop Setting | 0 – 10 % selectable |
| Input Power | 18 – 32 Vdc |
| Power Consumption | 15 Watts typical |
| Output Signal | 0–200 mA (current to actuator) |
| Frequency Input | 100 – 10 000 Hz |
| Communication | Analog and contact input interface |
| Protection | Over-voltage and reverse polarity |
| Operating Temperature | –40 °C to +85 °C |
| Storage Temperature | –55 °C to +105 °C |
| Dimensions | 203 mm × 127 mm × 51 mm |
| Weight | Approx. 1.1 kg |
| Mounting | Panel mounting with screw terminals |
| Enclosure | Aluminum case with EMI shielding |
| Compliance | CE, UL, and CSA approved |
FAQ
A1: Yes, every WOODWARD 8273-140 module is 100 % original, factory-sealed, and brand-new.
Q2: How long does delivery take?
A2: We usually ship within 3 days to 2 weeks, depending on order size and stock availability.
Q3: Which couriers do you use for delivery?
A3: We primarily ship with DHL, FedEx, and UPS for fast and secure global delivery.
Q4: What is your return policy?
A4: If there are any quality issues, we offer returns within 30 days after delivery.
Q5: Can this module be used in both diesel and gas applications?
A5: Yes, the 8273-140 supports both diesel and gas engine configurations, ensuring versatile use across different systems.
