Overview
Specification
| Parameter | Details |
|---|---|

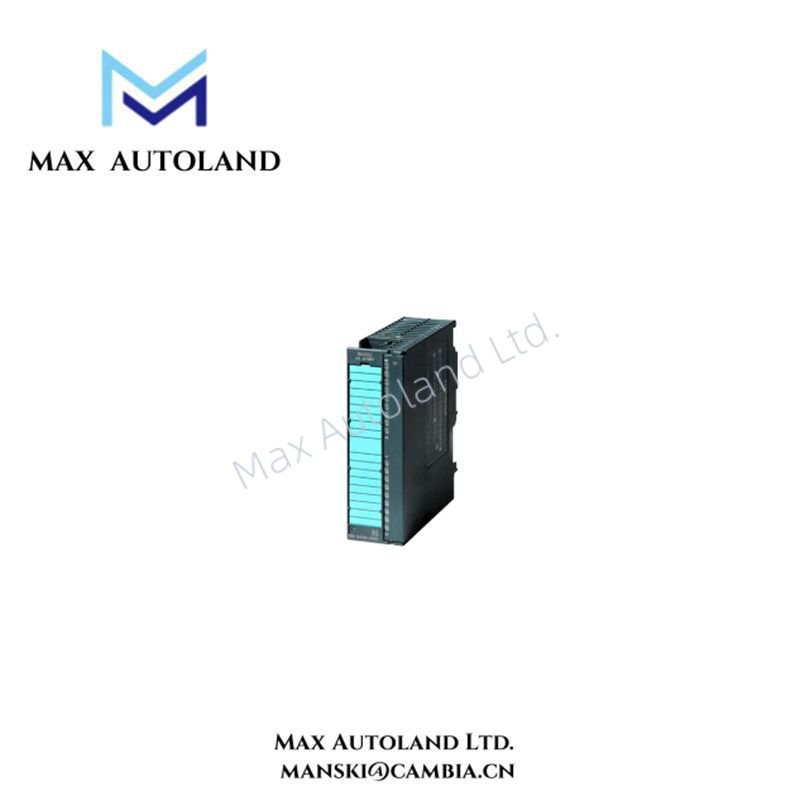

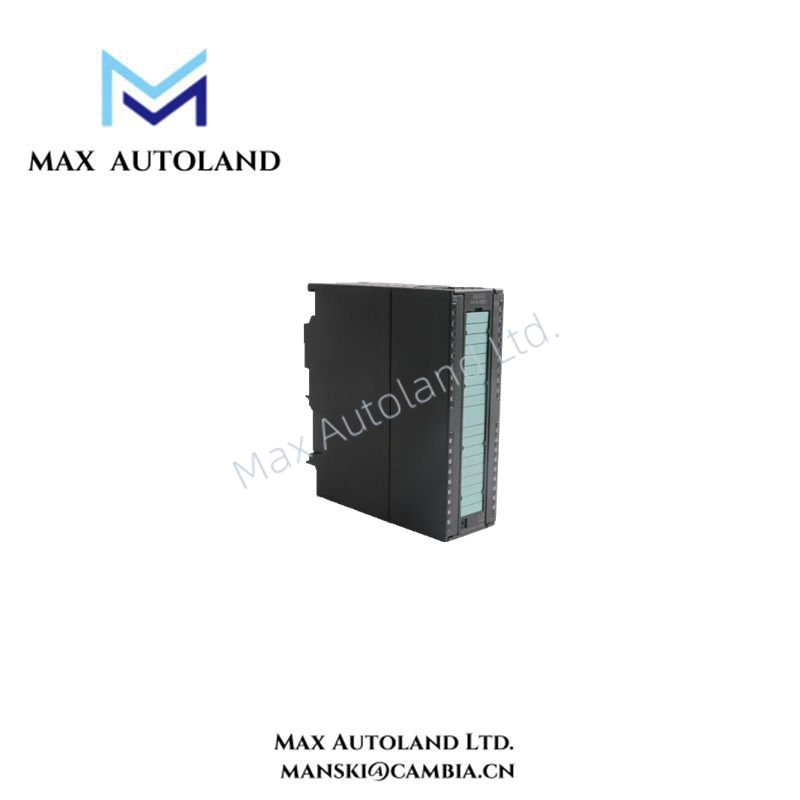

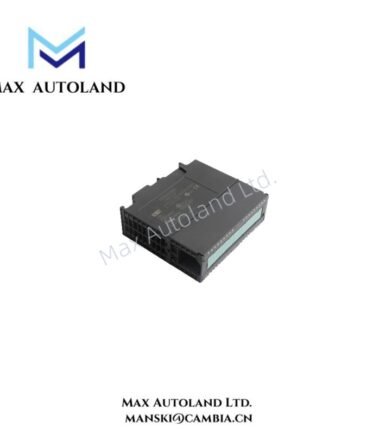

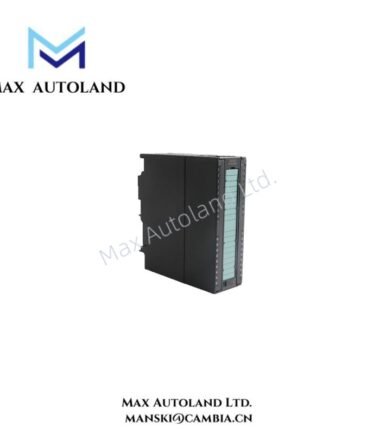

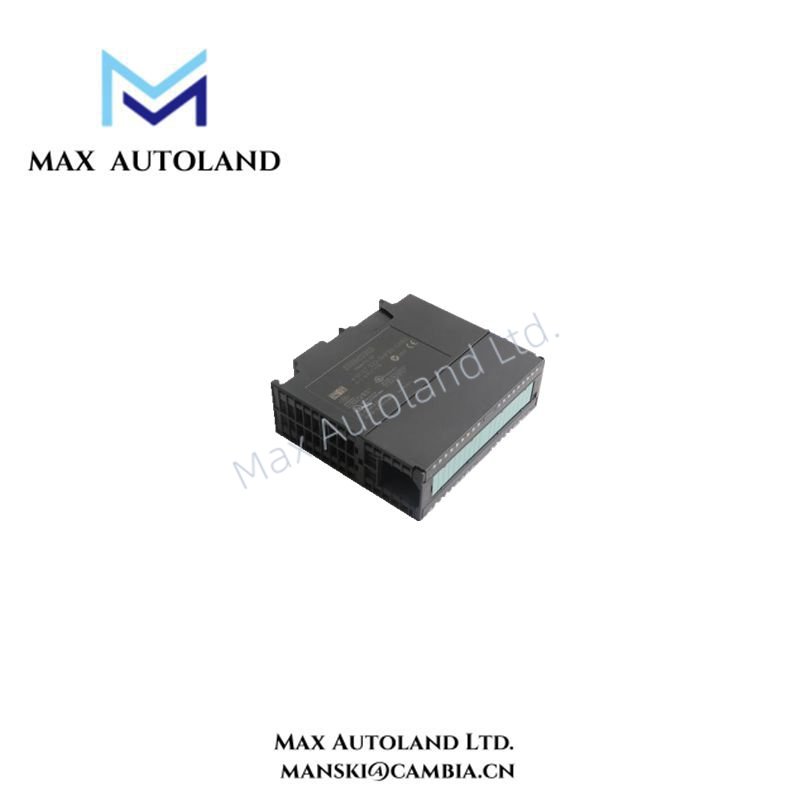

| Model Number | 6ES7332-5HF00-0AB0 |
| Manufacturer | Siemens |
| Series | SIMATIC S7-300 / SM 332 |
| Product Type | Analog Output Module |
| Output Channels | 8 Channels |
| Output Type | Voltage and Current |
| Output Range (Voltage) | ±10 V, 0–10 V |
| Output Range (Current) | 0–20 mA, 4–20 mA |
| Resolution | 12 bits |
| Accuracy | ±0.3% of full scale |
| Load Resistance (Voltage Output) | ≥1 kΩ |
| Load Resistance (Current Output) | ≤750 Ω |
| Power Supply Voltage | 24 V DC |
| Power Consumption | Approx. 2.8 W |
| Isolation | Channel-to-bus isolation |
| Diagnostics | LED indicators for status and faults |
| Dimensions (W x H x D) | 40 mm × 125 mm × 120 mm |
| Weight | Approx. 350 g |
| Mounting Type | DIN rail |
| Operating Temperature Range | 0°C to +60°C |
| Protection Rating | IP20 |
| Interface | Compatible with S7-300 backplane bus |
| Configuration Tool | STEP 7 or TIA Portal |
FAQ
A1: Yes, every 6ES7332-5HF00-0AB0 module we supply is 100% genuine, factory-sealed, and brand new from Siemens.Q2: What is the typical shipping time for this module?
A2: We usually ship within 3 days to 2 weeks, depending on the order size and logistics provider (DHL, FedEx, UPS).
Q3: What should I do if the module has a quality problem?
A3: We offer a 30-day return or replacement guarantee for any verified product defects.
Q4: Can the module output both current and voltage signals simultaneously?
A4: No, each channel can be configured for either voltage or current output at a time, depending on your process requirements.
Q5: Is this module compatible with S7-400 systems?
A5: The 6ES7332-5HF00-0AB0 is optimized for the S7-300 system but can communicate with S7-400 controllers through PROFIBUS or PROFINET connections.
