Overview

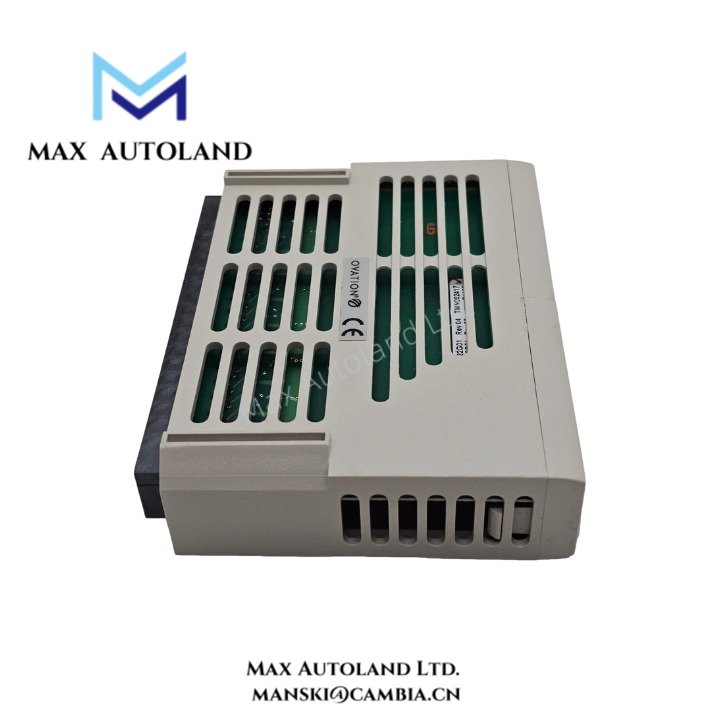

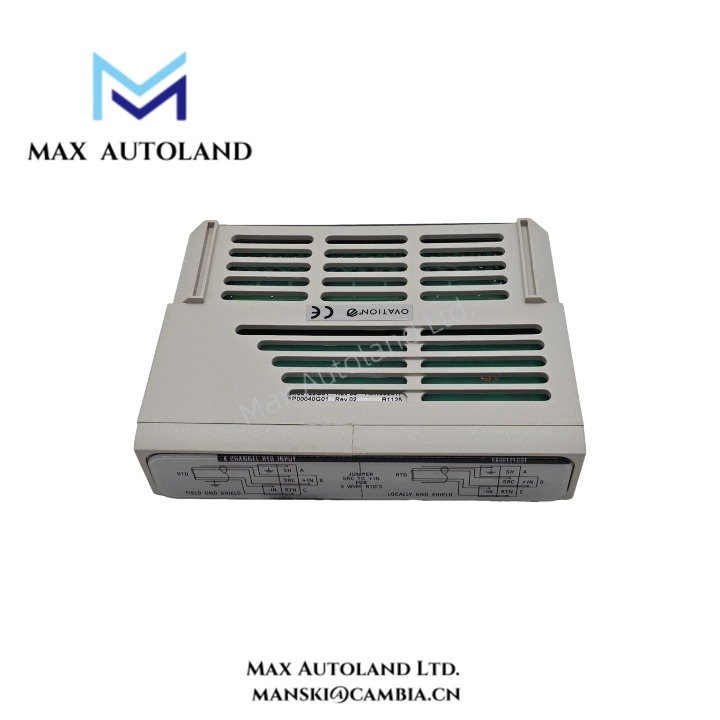

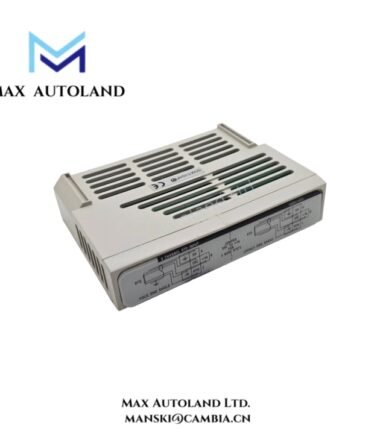

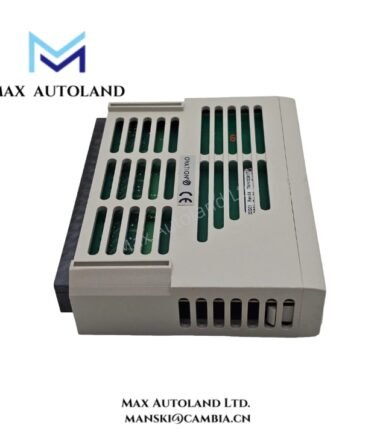

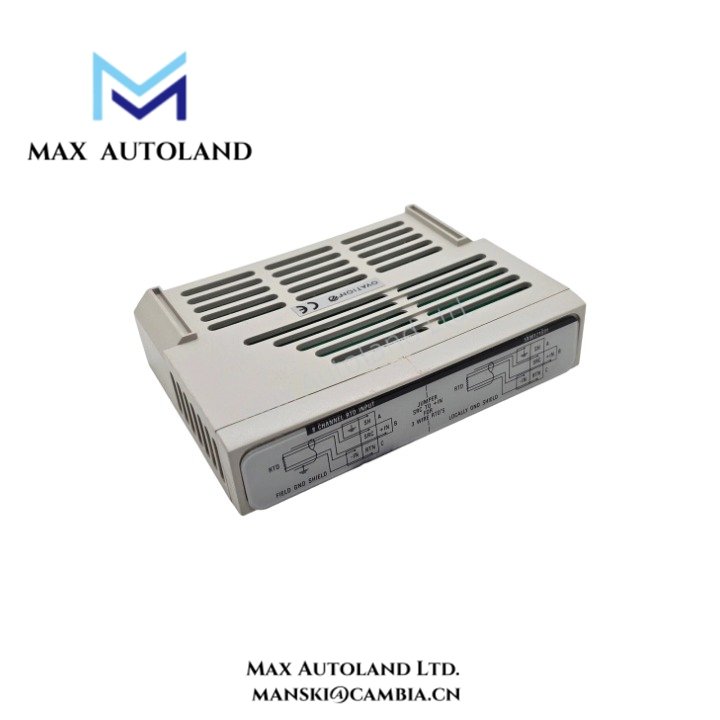

The 5X00121G01 module from Emerson provides accurate 8-channel RTD temperature measurement for Ovation DCS systems. It ensures high-resolution data acquisition, supporting critical process control. The module’s compact PMOD design allows easy integration into standard Ovation racks.
Its robust construction protects against industrial noise and voltage fluctuations. Users benefit from real-time diagnostics, LED status indicators, and simplified maintenance with hot-swappable functionality.
Specification
| Parameter | Specification |
|---|---|
| Model | 5X00121G01 |
| Manufacturer | Emerson |
| Category | 8-Channel RTD Input PMOD |
| System Compatibility | Ovation DCS |
| Function | Measures and logs temperature from RTD sensors |
| Channels | 8 RTD inputs |
| Supported RTD Types | PT100, PT1000 |
| Input Range | -200°C to 850°C (-328°F to 1562°F) |
| Accuracy | ±0.1°C typical |
| Resolution | 16-bit |
| Input Voltage | 24 VDC nominal |
| Current Consumption | 120 mA typical |
| Power Dissipation | 2.9 W typical |
| Mounting Type | PMOD rack-mounted, hot-swappable |
| Dimensions (L × W × H) | 180 × 100 × 35 mm |
| Weight | 0.42 kg (0.93 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 5–95% non-condensing |
| Shock & Vibration | IEC 60068-2 compliant |
| LED Indicators | Module status and individual channel diagnostics |
| Diagnostics | Input failure, communication errors, power faults |
| Certifications | CE, UL, Emerson internal compliance |
FAQ
Q1: Is the 5X00121G01 module original and new?
A1: Yes, it is a fully original Emerson Ovation module, brand new and factory-tested.
Q2: How quickly can it be shipped?
A2: Stock is available. Typical delivery is 3 days to 2 weeks depending on order size.
Q3: Which shipping methods are offered?
A3: Standard shipping includes DHL, FedEx, and UPS depending on destination.
Q4: What if a quality issue occurs?
A4: Returns are supported within 30 days for any verified product quality problem.
Q5: Can this module measure multiple RTD types simultaneously?
A5: Yes, the 5X00121G01 supports multiple RTD types like PT100 and PT1000 concurrently with high accuracy.
